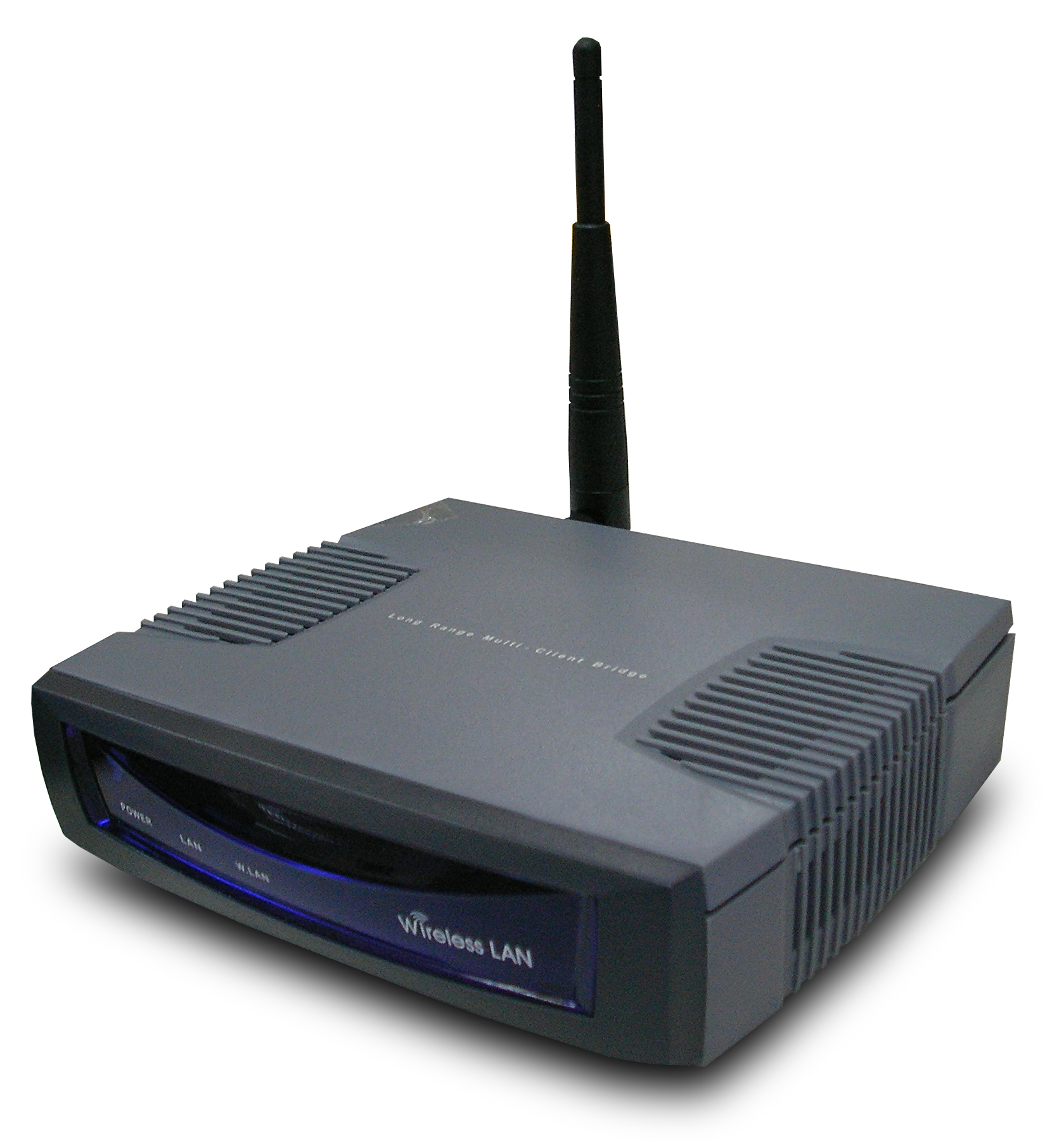

ECB-8610S Ultra Long Range Indoor Dual Band Access Point
Model ECB-8610S Ultra Long Range Indoor Dual Band Access PointPart no. 710101GECB8610S
20 specifications
- Speed54 Mbit/s
- 2.4 GHzYes
- Ethernet LAN (RJ-45) ports1
- InternalNo
- Operating temperature (T-T)-10 - 50 °C
Overview
- Speed
- 54 Mbit/s
- 2.4 GHz
- Yes
- Ethernet LAN (RJ-45) ports
- 1
- Internal
- No
- Operating temperature (T-T)
- -10 - 50 °C
- Brand
- EnGenius
- Category
- Wireless Access Point
- Model
- ECB-8610S Ultra Long Range Indoor Dual Band Access Point
- Part number
- 710101GECB8610S
- Also known as
- EnGenius ECB-8610S Ultra Long Range Indoor Dual Band Access Point 54 Mbit/s Power over Ethernet (PoE)
Specifications
20 specifications in 8 groups
Features
| Specification | Value |
|---|---|
| 2.4 GHz | Yes |
| Maximum data transfer rate | 54 Mbit/s |
| Frequency band | 2.4, 5.15 GHz |
Protocols
| Specification | Value |
|---|---|
| DHCP server | Yes |
| DHCP client | Yes |
| Management protocols | SNMP |
| Media access protocol | CSMA/CA |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power requirements | 90 - 240V DC |
Design
| Specification | Value |
|---|---|
| Internal | No |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC Part 15/UL, ETSI 300/328/CE |
Other features
| Specification | Value |
|---|---|
| Supported data transfer rates | 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 54 Mbit/s |
| Compliance industry standards | IEEE802.11a/b/g, IEEE802.3, IEEE802.3u, IEEE802.3af, IEEE802.1f, IEEE802.1x |
| Connectivity LEDs | Yes |
| Non-operating relative humidity (non-condensing) | 5 - 95% |
| Wireless standard | IEEE 802.11a/g/b |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -10 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
