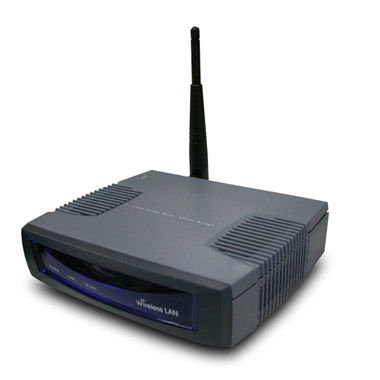

EnGenius ECB-3610S wireless access point 54 Mbit/s Power over Ethernet (PoE)

EnGenius ECB-3610S wireless access point 54 Mbit/s Power over Ethernet (PoE)

Model ECB-3610S

33 specifications
  • Speed54 Mbit/s
  • Connectivity802.11b/g
  • Weight1.2 kg
  • 2.4 GHzYes
  • Antenna connector typeSMA
  • Dimensions (WxDxH)135.2 x 163.8 x 47 mm
See all specifications

Overview

Speed
54 Mbit/s
Connectivity
802.11b/g
Weight
1.2 kg
2.4 GHz
Yes
Antenna connector type
SMA
Dimensions (WxDxH)
135.2 x 163.8 x 47 mm
Brand
EnGenius
Model
ECB-3610S
Part number
ECB-3610S
Also known as
EnGenius ECB-3610S wireless access point 54 Mbit/s Power over Ethernet (PoE)

Specifications

33 specifications in 10 groups

Features

2.4 GHzYes
Maximum data transfer rate54 Mbit/s
Ethernet LAN data rates10,100 Mbit/s
Frequency band2.4 GHz
Channels quantity14 channels
Modulation16-QAM, 64-QAM, DPSK, OFDM, QPSK
Receiver sensitivity802.11g: -90 dBm @ 6Mbps, -74 dBm @ 54Mbp 802.11b: -95 dBm @ 1Mbps -90 dBm @ 11Mbps

Security

Security algorithms802.1x RADIUS, EAP-TLS, EAP-TTLS, MD5, SSID, WPA, WPA-AES, WPA-PSK, WPA-TKIP, WPA2
MAC address filteringYes

Protocols

DHCP serverYes
DHCP clientYes
Supported network protocolsHTTP, Telnet
Management protocolsSNMP V1, V2c, MIBI&II
Media access protocolCSMA, CA

Ports & interfaces

Interface802.11b/g
Ethernet LAN (RJ-45) ports1
DC-in jackYes

Power

Power over Ethernet (PoE)Yes
AC input frequency50 - 60 Hz
AC input voltage48 V
Input current0.375 A
Power requirements100 - 240V
Power supply typeAC/DC

Antenna

Antenna connector typeSMA

Weight & dimensions

Dimensions (WxDxH)135.2 x 163.8 x 47 mm
Weight1.2 kg

Packaging content

AC adapter includedYes

Other features

Supported data transfer rates1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 54 Mbps
Transmit power range23 - 28 dBmW
Connectivity LEDsYes

Operational conditions

Operating relative humidity (H-H)5 - 95%
Operating temperature (T-T)0 - 60 °C
Storage temperature (T-T)-20 - 80 °C
