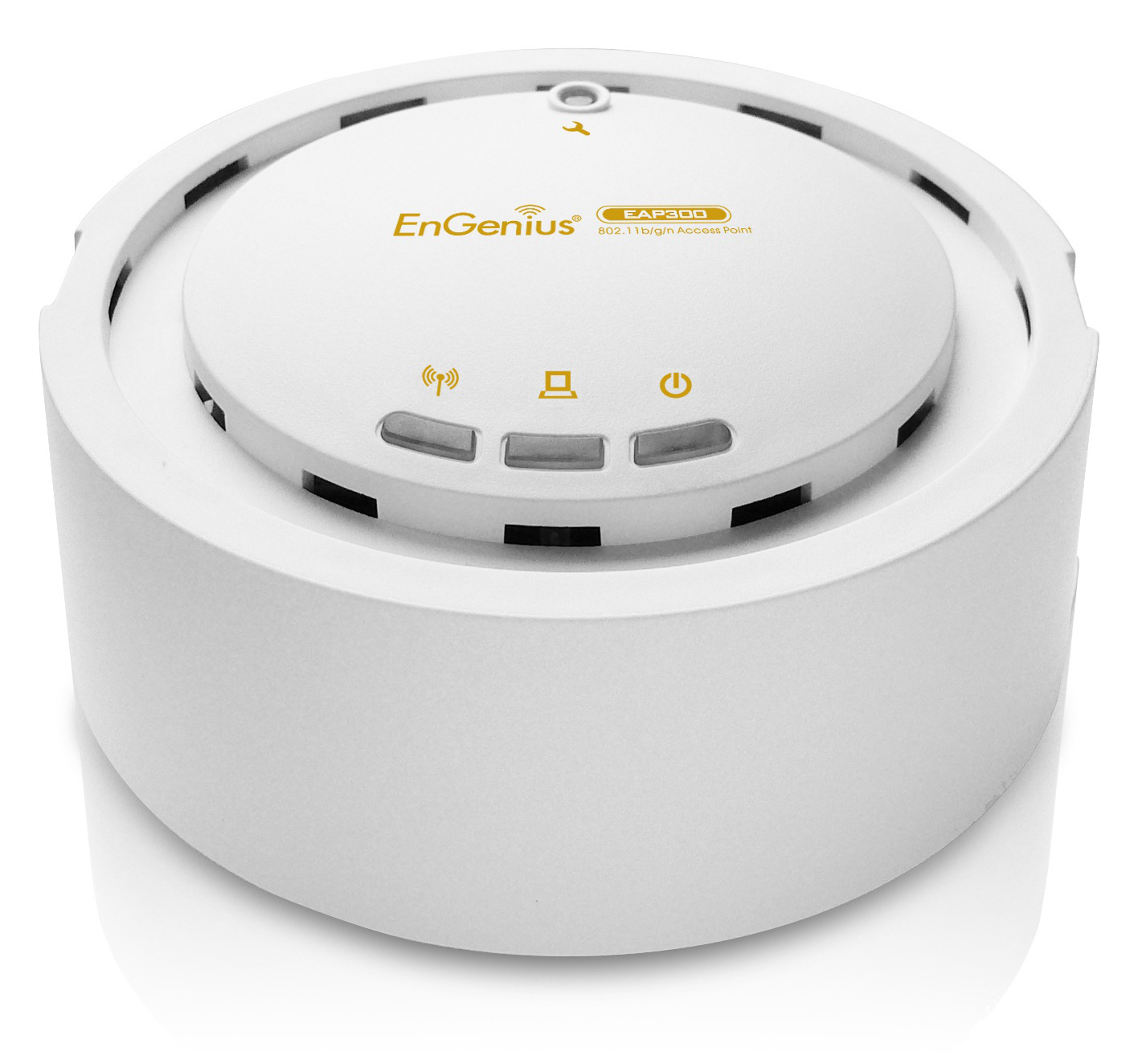

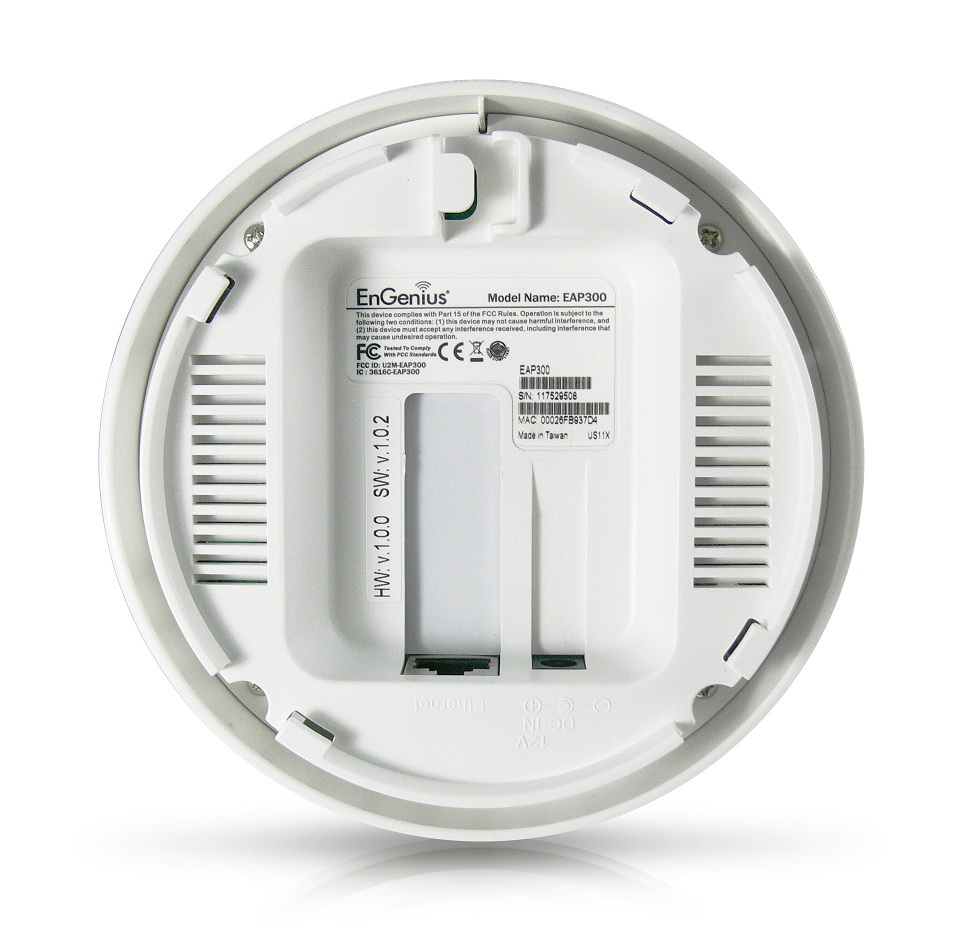

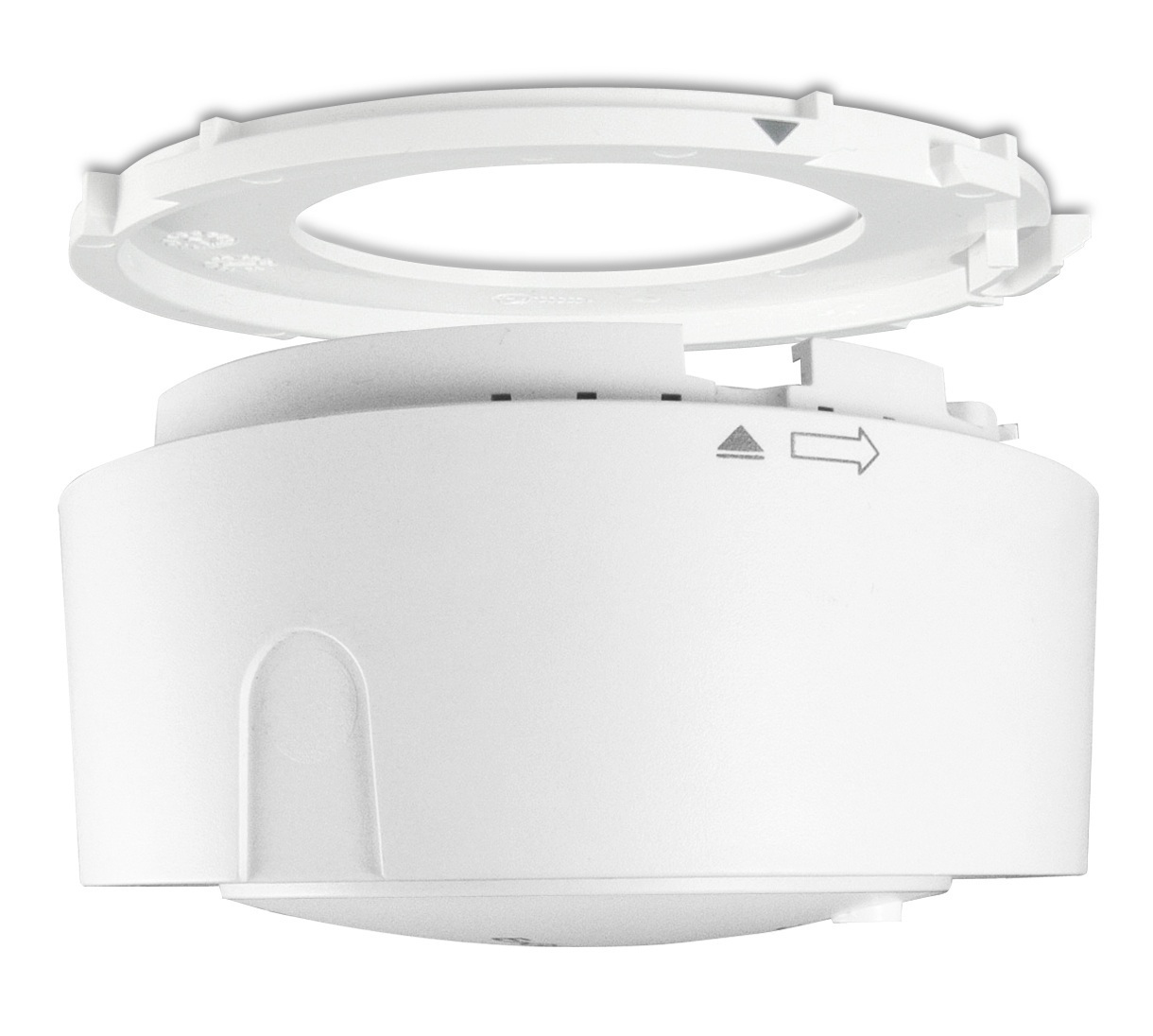

EnGenius EAP300 wireless access point 300 Mbit/s White Power over Ethernet (PoE)

EnGenius EAP300 wireless access point 300 Mbit/s White Power over Ethernet (PoE)

Model EAP300EAN 888063696787

57 specifications
  • Memory32 MB
  • Speed300 Mbit/s
  • Weight224 g
  • ColourWhite
  • 2.4 GHzYes
  • Ethernet LAN (RJ-45) ports1
See all specifications

Overview

Memory
32 MB
Speed
300 Mbit/s
Weight
224 g
Colour
White
2.4 GHz
Yes
Ethernet LAN (RJ-45) ports
1
Brand
EnGenius
Model
EAP300
Part number
EAP300
EAN / UPC
888063696787, 655216005358, 720825493534, 733115908243 +2 more
Also known as
EnGenius EAP300 wireless access point 300 Mbit/s White Power over Ethernet (PoE)

Specifications

57 specifications in 14 groups

Features

2.4 GHzYes
5 GHzNo
Maximum data transfer rate300 Mbit/s
Wi-Fi data rate (max)300 Mbit/s
Ethernet LAN data rates10,100 Mbit/s
Frequency band2.412 - 2.472 GHz
Networking standardsIEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1D, IEEE 802.3af
Channels quantity11 channels
Channel bandwidth40 MHz
Automatic channel selectionYes
Spread spectrum methodDSSS
Modulation16-QAM, 64-QAM, BPSK, CCK, DBPSK, DQPSK, OFDM, QPSK
Wi-Fi Multimedia (WMM)/(WME)Yes
VLAN supportYes
Virtual LAN featuresTagged VLAN
Operating modesAccess Point (AP),Repeater,WDS
Quality of Service (QoS) supportYes
Transmitting power15 dBmW

Security

Security algorithms128-bit WEP, 64-bit WEP, 802.1x RADIUS, SSID, WEP, WPA, WPA-PSK, WPA-TKIP, WPA2, WPA2-PSK
MAC address filteringYes
Number of SSID supported8
Auto Wireless Distribution System (WDS)Yes

Protocols

DHCP serverYes
Management protocolsHTTP/S, SNMP v1/v2c/v3, MIB I/II, CLI (Telnet)

Management features

Web-based managementYes
SyslogYes
Firmware upgradeableYes

Ports & interfaces

Ethernet LAN (RJ-45) ports1
USB 2.0 ports quantity0
WAN connectionEthernet (RJ-45)
DC-in jackYes

Power

Power over Ethernet (PoE)Yes
AC input voltage12 V
Input current1 A
Power requirements90 - 240V AC, 50/60Hz
Power supply type48V DC, 0.375A

Design

PlacementCeiling, Wall
Product colourWhite
Reset buttonYes
LED indicatorsYes
InternalNo

Antenna

Antenna featuresIntegrated antenna
Antennas quantity2
Antenna gain level (max)5 dBi

Performance

Flash memory4 MB
Internal memory32 MB

Certificates

CertificationFCC, CE, IC

Weight & dimensions

Width125.6 mm
Depth125.6 mm
Height63.6 mm
Weight224 g

Packaging content

AC adapter includedYes

Other features

Memory and processorMCU/RF: RTL8196C + RTL8188RE

Operational conditions

Operating relative humidity (H-H)0 - 90%
Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-20 - 60 °C
Storage relative humidity (H-H)0 - 90%
