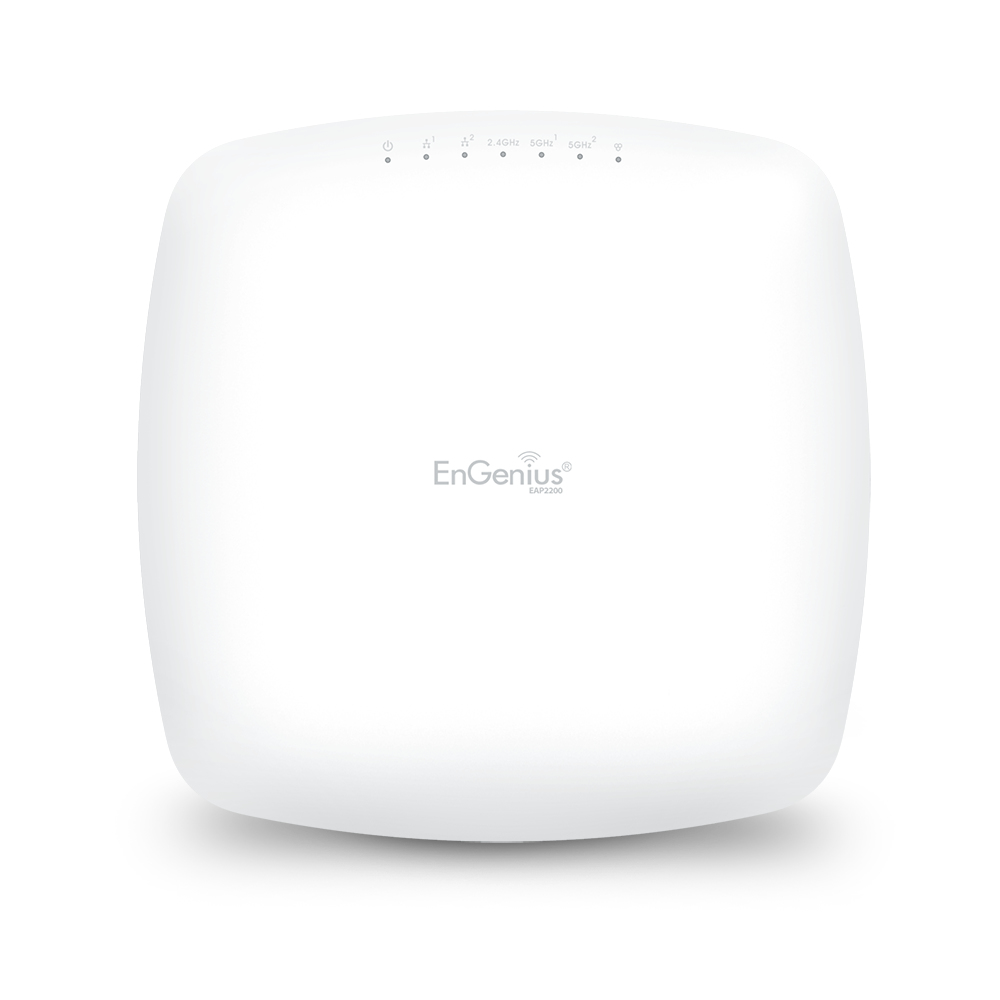

EnGenius EAP2200 wireless access point 867 Mbit/s White Power over Ethernet (PoE)

EnGenius EAP2200 wireless access point 867 Mbit/s White Power over Ethernet (PoE)

Model EAP2200EAN 655216008663

55 specifications
  • Speed867 Mbit/s
  • Weight610 g
  • ColourWhite
  • 2.4 GHzYes
  • Service Set Identifier (SSID) featuresHidden SSID
  • Ethernet LAN (RJ-45) ports2
See all specifications

Overview

Speed
867 Mbit/s
Weight
610 g
Colour
White
2.4 GHz
Yes
Service Set Identifier (SSID) features
Hidden SSID
Ethernet LAN (RJ-45) ports
2
Brand
EnGenius
Model
EAP2200
Part number
EAP2200
EAN / UPC
655216008663, 4713361930096
Also known as
EnGenius EAP2200 wireless access point 867 Mbit/s White Power over Ethernet (PoE)

Specifications

55 specifications in 12 groups

Features

2.4 GHzYes
5 GHzYes
Maximum data transfer rate867 Mbit/s
Maximum data transfer rate (5 GHz)867 Mbit/s
Ethernet LAN data rates10,100,1000 Mbit/s
Frequency band2.4, 5, 5 GHz
Bandwidth5 GHz
Networking standardsIEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11i, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3af
Automatic channel selectionYes
MIMOYes
MIMO typeMulti User MIMO
Spread spectrum methodDSSS, OFDM
Modulation16-QAM, 64-QAM, 256-QAM, BPSK, CCK, QPSK
Fit AP mode featuresWireless distribution system (WDS)
Wi-Fi roamingYes
Fast roamingYes
Band steeringYes
Quality of Service (QoS) supportYes
Data unit aggregationVHT 20, VHT 40, VHT 80, HT 20, HT 40, AMPDU, ASPDU
Transmitting power22 dBmW

Security

Security algorithms64-bit WEP, 128-bit WEP, 152-bit WEP, 802.1x RADIUS, HTTPS, SSH, SSID, WPA-AES, WPA-EAP, WPA-TKIP
Service Set Identifier (SSID) featuresHidden SSID
Number of SSID supported16
Auto Wireless Distribution System (WDS)Yes

Protocols

Management protocolsSNMP v1, SNMP v2c, SNMP v3, MIB I/II, Private MIB

Ports & interfaces

Ethernet LAN (RJ-45) ports2
DC-in jackYes

Power

Power over Ethernet (PoE)Yes
AC input voltage12 V
Input current1 A
Power consumption (max)10 W

Design

PlacementCeiling, Wall
Product colourWhite
Reset buttonYes
LED indicatorsLAN, Power
InternalNo

Antenna

Antenna direction typeOmni-directional
Antenna featuresIntegrated antenna
Antennas quantity6
Antenna gain level (max)5 dBi

Performance

Built-in processorYes

Certificates

CertificationFCC, CE

Weight & dimensions

Width200 mm
Depth200 mm
Height40.6 mm
Weight610 g

Packaging content

Quantity per pack1 pc(s)
AC adapter includedYes
Cables includedLAN (RJ-45)
Mounting kitYes
Quick start guideYes

Operational conditions

Operating relative humidity (H-H)0 - 90%
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-30 - 80 °C
Storage relative humidity (H-H)0 - 90%
