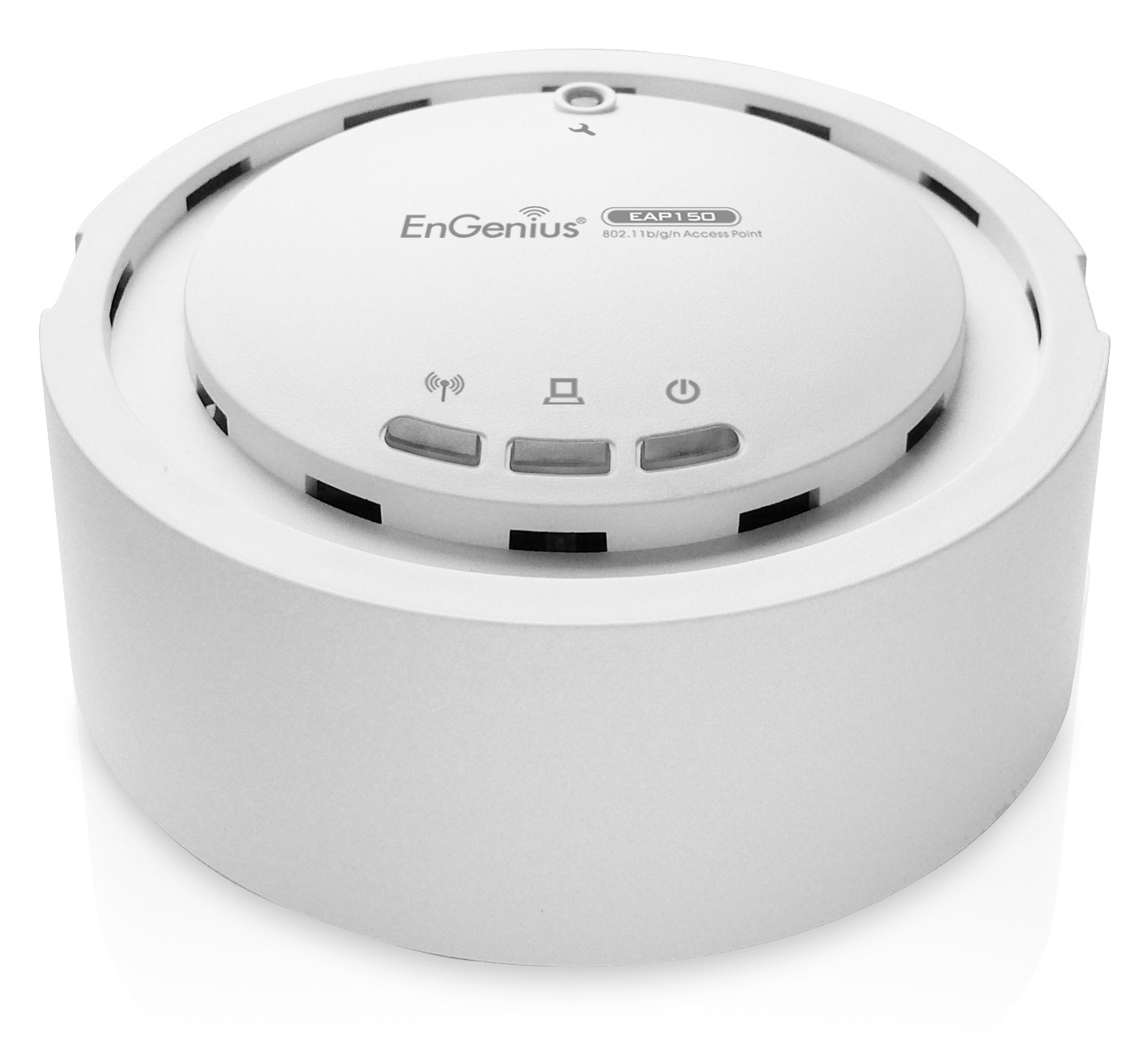

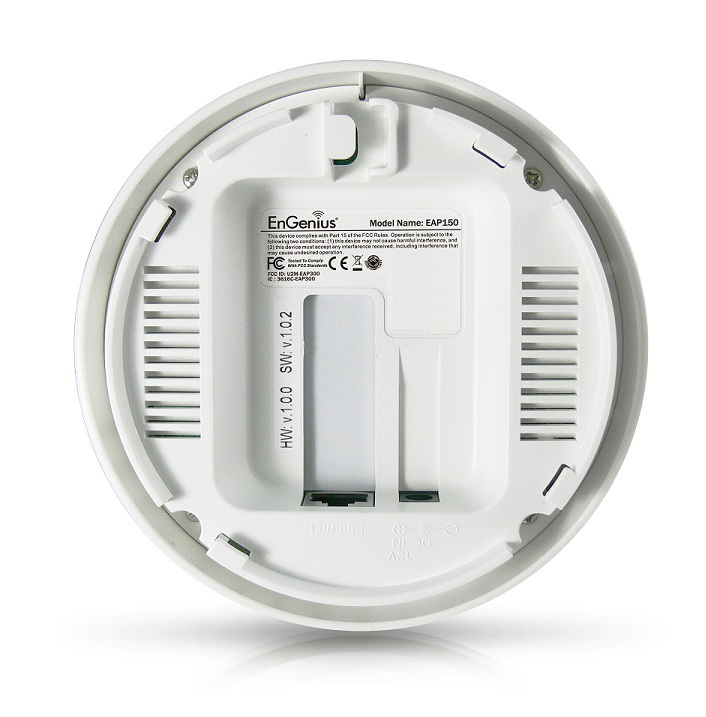

EnGenius EAP150 wireless access point 150 Mbit/s Power over Ethernet (PoE)
Model EAP150EAN 655216005341
30 specifications
- Memory32 MB
- Speed150 Mbit/s
- Weight280 g
- MAC address filteringYes
- Ethernet LAN (RJ-45) ports1
- Antenna gain level (max)5 dBi
Overview
- Memory
- 32 MB
- Speed
- 150 Mbit/s
- Weight
- 280 g
- MAC address filtering
- Yes
- Ethernet LAN (RJ-45) ports
- 1
- Antenna gain level (max)
- 5 dBi
- Brand
- EnGenius
- Category
- Wireless Access Point
- Model
- EAP150
- Part number
- EAP150
- EAN / UPC
- 655216005341, 733115908236, 6552160053418
- Also known as
- EnGenius EAP150 wireless access point 150 Mbit/s Power over Ethernet (PoE)
Specifications
30 specifications in 13 groups
Features
| Specification | Value |
|---|---|
| Maximum data transfer rate | 150 Mbit/s |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Frequency band | 2.412 - 2.472 GHz |
| Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1D, IEEE 802.3af |
| Modulation | 16-QAM, 64-QAM, BPSK, CCK, DBPSK, DQPSK, OFDM, QPSK |
| Quality of Service (QoS) support | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | 128-bit WEP, 64-bit WEP, 802.1x RADIUS, SSID, TKIP, WEP, WPA, WPA-AES, WPA-PSK, WPA-TKIP, WPA2, WPA2-PSK |
| MAC address filtering | Yes |
Protocols
| Specification | Value |
|---|---|
| DHCP server | Yes |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| WAN connection | Ethernet (RJ-45) |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| AC input voltage | 12 V |
| Input current | 1 A |
| Power requirements | 90 - 240V AC, 50/60Hz |
| Power supply type | 48V DC, 0.375A |
Design
| Specification | Value |
|---|---|
| LED indicators | Yes |
| Internal | No |
Antenna
| Specification | Value |
|---|---|
| Antenna gain level (max) | 5 dBi |
Performance
| Specification | Value |
|---|---|
| Flash memory | 4 MB |
| Internal memory | 32 MB |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC, CE, IC |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 280 g |
Other features
| Specification | Value |
|---|---|
| Memory and processor | MCU/RF: RTL8196C + RTL8188RE |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 0 - 90% |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Storage relative humidity (H-H) | 0 - 90% |
