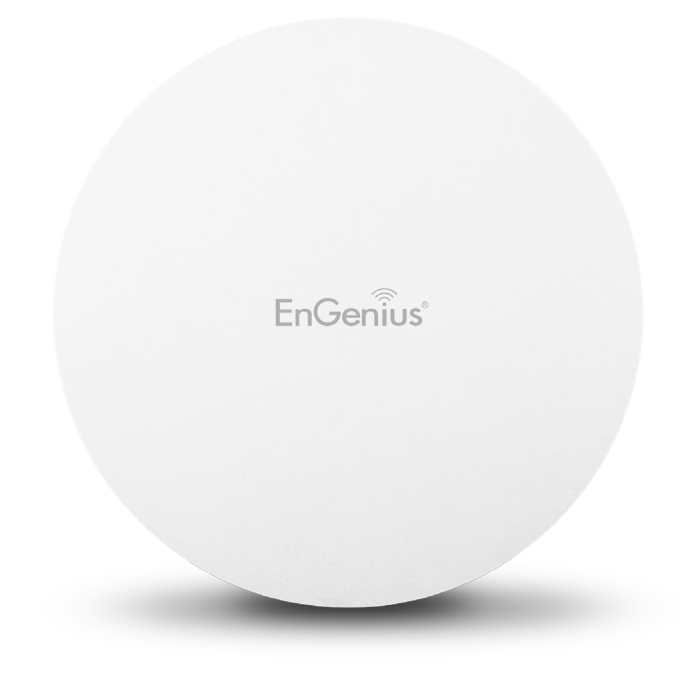

EnGenius EAP1250 Wireless Access Point AC1300 Ceiling Mount 11ac/b/g/n 2.4+5GHz 400+867 2T2R
4x5dBi ia GbE PoE
Model EAP1250EAN 655216009035
43 specifications
- Speed867 Mbit/s
- Weight180 g
- ColourWhite
- 2.4 GHzYes
- Security algorithmsSSID, WEP, WPA, WPA2
- Ethernet LAN (RJ-45) ports1
Overview
- Speed
- 867 Mbit/s
- Weight
- 180 g
- Colour
- White
- 2.4 GHz
- Yes
- Security algorithms
- SSID, WEP, WPA, WPA2
- Ethernet LAN (RJ-45) ports
- 1
- Brand
- EnGenius
- Category
- Wireless Access Point
- Model
- EAP1250
- Part number
- EAP1250
- EAN / UPC
- 655216009035, 4713361934018
- Also known as
- EnGenius EAP1250 Wireless Access Point AC1300 Ceiling Mount 11ac/b/g/n 2.4+5GHz 400+867 2T2R 4x5dBi ia GbE PoE
Specifications
43 specifications in 13 groups
Features
| Specification | Value |
|---|---|
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Maximum data transfer rate | 867 Mbit/s |
| Maximum data transfer rate (5 GHz) | 867 Mbit/s |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Modulation | 16-QAM, 64-QAM, 256-QAM, BPSK, CCK, QPSK |
| VLAN support | Yes |
| Virtual LAN features | Tagged VLAN |
| Quality of Service (QoS) support | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | SSID, WEP, WPA, WPA2 |
| MAC address filtering | Yes |
| Number of SSID supported | 16 |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 0 |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 9 W |
Design
| Specification | Value |
|---|---|
| Placement | Ceiling, Wall |
| Product colour | White |
| Reset button | Yes |
| LED indicators | Yes |
| Internal | No |
Antenna
| Specification | Value |
|---|---|
| Antenna direction type | Omni-directional |
| Antenna features | Integrated antenna |
| Antennas quantity | 2 |
| Antenna gain level (max) | 5 dBi |
Performance
| Specification | Value |
|---|---|
| Built-in processor | Yes |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC, CE |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 130 mm |
| Depth | 130 mm |
| Height | 40 mm |
| Weight | 180 g |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Cables included | LAN (RJ-45) |
| Mounting kit | Yes |
| Quick start guide | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 0 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -30 - 80 °C |
| Storage relative humidity (H-H) | 0 - 90% |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
