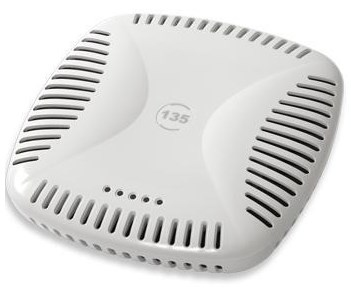

Dell PowerConnect W-IAP135 1000 Mbit/s White Power over Ethernet (PoE)

Dell PowerConnect W-IAP135 1000 Mbit/s White Power over Ethernet (PoE)

Model W-IAP135Part no. 210-39942

25 specifications

Speed1000 Mbit/s
Weight760 g
ColourWhite
2.4 GHzYes
Ethernet LAN (RJ-45) ports2
Antenna direction typeOmni-directional

See all specifications

Overview

Speed: 1000 Mbit/s
Weight: 760 g
Colour: White
2.4 GHz: Yes
Ethernet LAN (RJ-45) ports: 2
Antenna direction type: Omni-directional

Brand: Dell
Category: Wireless Access Point
Model: W-IAP135
Part number: 210-39942
Also known as: DELL PowerConnect W-IAP135 1000 Mbit/s White Power over Ethernet (PoE)

Specifications

25 specifications in 6 groups

Features

Specification	Value
2.4 GHz	Yes
5 GHz	Yes
Maximum data transfer rate	1000 Mbit/s
Wi-Fi data rate (max)	300 Mbit/s
Ethernet LAN data rates	10,100,1000 Mbit/s
Frequency band	2.4 - 5.875 GHz
Networking standards	IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u
Spread spectrum method	DSSS
Modulation	16-QAM, 64-QAM, BPSK, CCK, DSSS, OFDM, QPSK

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	2
WAN connection	Ethernet (RJ-45)
DC-in jack	Yes

Power

Specification	Value
Power over Ethernet (PoE)	Yes
AC input voltage	12 V
Power consumption (typical)	15 W

Design

Specification	Value
Product colour	White
Internal	No

Antenna

Specification	Value
Antenna direction type	Omni-directional
Antenna features	Integrated antenna
Antennas quantity	6
Antenna gain level (max)	4.5 dBi

Weight & dimensions

Specification	Value
Width	170 mm
Depth	170 mm
Height	45 mm
Weight	760 g
