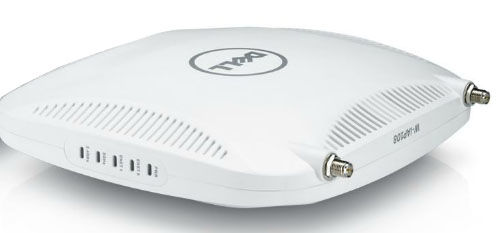

Dell PowerConnect W-IAP108 300 Mbit/s Power over Ethernet (PoE)
Model W-IAP108Part no. 210-AAVGEAN 5397063839650
34 specifications
- Speed300 Mbit/s
- Weight300 g
- 2.4 GHzYes
- Ethernet LAN (RJ-45) ports3
- LED indicatorsLink, Power, Status
- Antennas quantity2
Overview
- Speed
- 300 Mbit/s
- Weight
- 300 g
- 2.4 GHz
- Yes
- Ethernet LAN (RJ-45) ports
- 3
- LED indicators
- Link, Power, Status
- Antennas quantity
- 2
- Brand
- Dell
- Category
- Wireless Access Point
- Model
- W-IAP108
- Part number
- 210-AAVG
- EAN / UPC
- 5397063839650
- Also known as
- DELL PowerConnect W-IAP108 300 Mbit/s Power over Ethernet (PoE)
Specifications
34 specifications in 10 groups
Features
| Specification | Value |
|---|---|
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Maximum data transfer rate | 300 Mbit/s |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Frequency band | 2.4, 5 GHz |
| Networking standards | IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Spread spectrum method | DSSS |
| Modulation | 16-QAM, 64-QAM, BPSK, CCK, DSSS, OFDM, QPSK |
| Transmitting power | 21 dBmW |
Management features
| Specification | Value |
|---|---|
| Wake-on-LAN ready | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 3 |
| USB 2.0 ports quantity | 1 |
| USB connector type | USB Type-A |
| WAN connection | Ethernet (RJ-45) |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| AC input voltage | 12 V |
| Power supply | 15 W |
Design
| Specification | Value |
|---|---|
| LED indicators | Link, Power, Status |
| Internal | No |
Antenna
| Specification | Value |
|---|---|
| Antennas quantity | 2 |
| Antenna connector type | RP-SMA |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC, CE, UL/IEC/EN |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 160 mm |
| Depth | 43 mm |
| Height | 160 mm |
| Weight | 300 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 230 mm |
| Package depth | 220 mm |
| Package height | 90 mm |
| Package weight | 750 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
