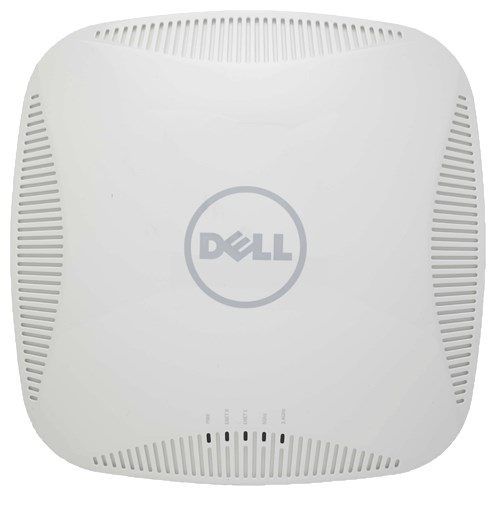

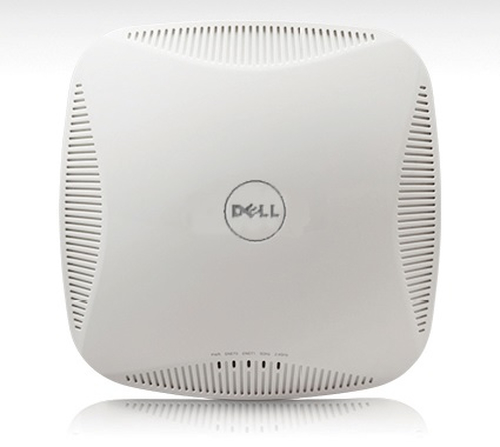

Dell PowerConnect W-AP225 1000 Mbit/s White

Dell PowerConnect W-AP225 1000 Mbit/s White

Model W-AP225Part no. 210-ABENEAN 5397063839735

35 specifications

Speed1000 Mbit/s
Weight750 g
ColourWhite
2.4 GHzYes
Ethernet LAN (RJ-45) ports2
AC input voltage12 V

See all specifications

Overview

Speed: 1000 Mbit/s
Weight: 750 g
Colour: White
2.4 GHz: Yes
Ethernet LAN (RJ-45) ports: 2
AC input voltage: 12 V

Brand: Dell
Category: Wireless Access Point
Model: W-AP225
Part number: 210-ABEN
EAN / UPC: 5397063839735
Also known as: DELL PowerConnect W-AP225 1000 Mbit/s White

Specifications

35 specifications in 8 groups

Features

Specification	Value
2.4 GHz	Yes
5 GHz	Yes
Maximum data transfer rate	1000 Mbit/s
Wi-Fi data rate (max)	1300 Mbit/s
Ethernet LAN data rates	10,100,1000 Mbit/s
Frequency band	2.4 - 5.85 GHz
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Modulation	256-QAM, 64-QAM, BPSK, CCK, QPSK

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	2
USB 2.0 ports quantity	1
USB connector type	USB Type-A
WAN connection	Ethernet (RJ-45)
DC-in jack	Yes

Power

Specification	Value
AC input voltage	12 V
Power consumption (typical)	15 W

Design

Specification	Value
Product colour	White
Cable lock slot	Yes
Cable lock slot type	Kensington
LED indicators	Yes
Internal	No

Antenna

Specification	Value
Antenna direction type	Omni-directional
Antenna features	Integrated antenna
Antennas quantity	6
Antenna gain level (max)	4.5 dBi

Weight & dimensions

Specification	Value
Width	203 mm
Depth	203 mm
Height	54 mm
Weight	750 g

Packaging data

Specification	Value
Package width	315 mm
Package depth	265 mm
Package height	100 mm
Package weight	1.25 kg

Operational conditions

Specification	Value
Operating relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
