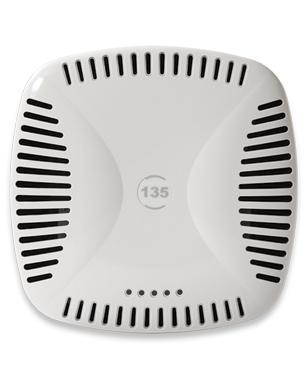

Dell PowerConnect W-AP135 1000 Mbit/s White Power over Ethernet (PoE)
Model W-AP135Part no. 210-37733
31 specifications
- Speed1000 Mbit/s
- Weight760 g
- ColourWhite
- 2.4 GHzYes
- Ethernet LAN (RJ-45) ports3
- Antenna direction typeOmni-directional
Overview
- Speed
- 1000 Mbit/s
- Weight
- 760 g
- Colour
- White
- 2.4 GHz
- Yes
- Ethernet LAN (RJ-45) ports
- 3
- Antenna direction type
- Omni-directional
- Brand
- Dell
- Category
- Wireless Access Point
- Model
- W-AP135
- Part number
- 210-37733
- Also known as
- DELL PowerConnect W-AP135 1000 Mbit/s White Power over Ethernet (PoE)
Specifications
31 specifications in 8 groups
Features
| Specification | Value |
|---|---|
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Maximum data transfer rate | 1000 Mbit/s |
| Wi-Fi data rate (max) | 300 Mbit/s |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Throughput data rate | 40 Mbit/s |
| Frequency band | 2.4 - 5.85 GHz |
| Networking standards | IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Spread spectrum method | DSSS |
| Modulation | 16-QAM, 64-QAM, BPSK, CCK, DSSS, OFDM, QPSK |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 3 |
| WAN connection | Ethernet (RJ-45) |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| AC input voltage | 12 V |
| Power consumption (typical) | 15 W |
Design
| Specification | Value |
|---|---|
| Product colour | White |
| Internal | No |
Antenna
| Specification | Value |
|---|---|
| Antenna direction type | Omni-directional |
| Antenna features | Integrated antenna |
| Antennas quantity | 6 |
| Antenna gain level (max) | 4.5 dBi |
Certificates
| Specification | Value |
|---|---|
| Certification | FIPS/TAA |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 170 mm |
| Depth | 170 mm |
| Height | 45 mm |
| Weight | 760 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 95% |
What people say
Reviews & ratings
Dell PowerConnect W-AP135 1000 Mbit/s White Power over Ethernet (PoE)
No reviews yet
Be the first to tell others how Dell PowerConnect W-AP135 1000 Mbit/s White Power over Ethernet (PoE) works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare Dell PowerConnect W-AP135 1000 Mbit/s White Power over Ethernet (PoE)
All wireless access point comparisons- Dell PowerConnect W-AP135 1000 Mbit/s White Power over Ethernet (PoE) vsDell PowerConnect W-AP225 1000 Mbit/s WhiteCompare specs
- Dell PowerConnect W-AP135 1000 Mbit/s White Power over Ethernet (PoE) vsDell PowerConnect W-IAP225 1300 Mbit/s White Power over Ethernet (PoE)Compare specs
- Dell PowerConnect W-AP135 1000 Mbit/s White Power over Ethernet (PoE) vsDell PowerConnect W-AP93H 1000 Mbit/s White Power over Ethernet (PoE)Compare specs

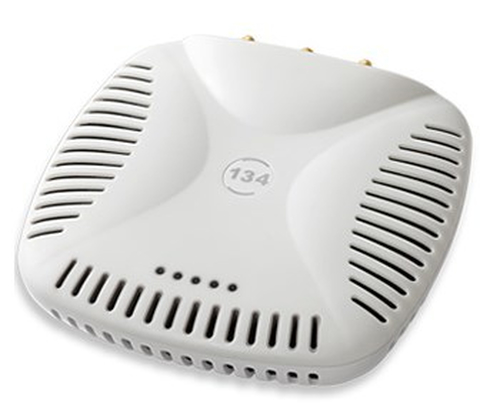

- Dell PowerConnect W-AP135 1000 Mbit/s White Power over Ethernet (PoE) vsDell PowerConnect W-IAP134 1000 Mbit/s White Power over Ethernet (PoE)Compare specs
