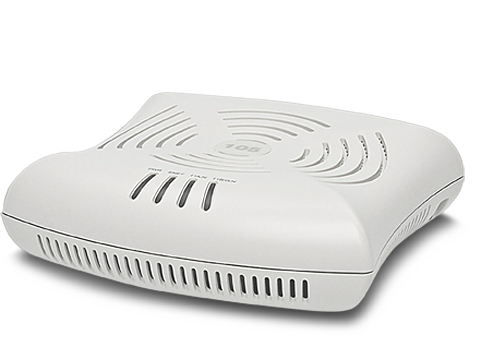

Dell PowerConnect pciap105 Power over Ethernet (PoE)

Dell PowerConnect pciap105 Power over Ethernet (PoE)

Model pciap105Part no. PCIAP105

28 specifications

ConnectivityRJ-45
Weight300 g
2.4 GHzYes
Security algorithms802.1x RADIUS, WPA, WPA2
Antennas quantity4
Dimensions (WxDxH)132 x 135 x 45 mm

See all specifications

Overview

Connectivity: RJ-45
Weight: 300 g
2.4 GHz: Yes
Security algorithms: 802.1x RADIUS, WPA, WPA2
Antennas quantity: 4
Dimensions (WxDxH): 132 x 135 x 45 mm

Brand: Dell
Category: Wireless Access Point
Model: pciap105
Part number: PCIAP105
Also known as: DELL PowerConnect pciap105 Power over Ethernet (PoE)

Specifications

28 specifications in 10 groups

Features

Specification	Value
2.4 GHz	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Frequency band	2.4 GHz
Networking standards	IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af
Cabling technology	10/100/1000Base-T(X)
MIMO	Yes

Security

Specification	Value
Security algorithms	802.1x RADIUS, WPA, WPA2

Ports & interfaces

Specification	Value
Interface	RJ-45
Ethernet LAN (RJ-45) ports	1
WAN connection	Ethernet (RJ-45)
DC-in jack	Yes

Power

Specification	Value
Power over Ethernet (PoE)	Yes
Power requirements	12V
Power supply	12.5 W
Power supply type	AC/DC

Design

Specification	Value
LED indicators	Yes
Internal	Yes

Antenna

Specification	Value
Antennas quantity	4
Antenna gain level (max)	4 dBi

Weight & dimensions

Specification	Value
Dimensions (WxDxH)	132 x 135 x 45 mm
Weight	300 g

Packaging content

Specification	Value
AC adapter included	Yes

Other features

Specification	Value
Networking features	Gigabit Ethernet
Power LED	Yes
Wireless technology	802.11 a/b/g/n

Operational conditions

Specification	Value
Operating relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
