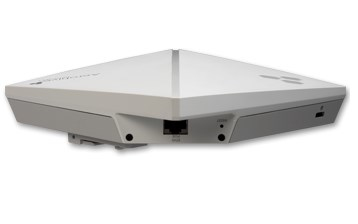

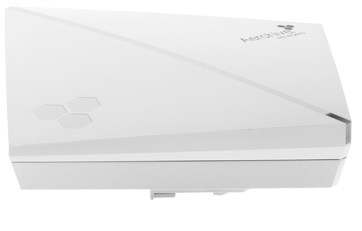

Dell Aerohive AP130

Dell Aerohive AP130

Model Aerohive AP130Part no. 210-AOHFEAN 884116289289

32 specifications

Speed1000 Mbit/s
Weight510 g
ColourWhite
2.4 GHzYes
Security algorithmsAES, WEP, WPA, WPA-PSK, WPA2-PSK
Ethernet LAN (RJ-45) ports1

See all specifications

Overview

Speed: 1000 Mbit/s
Weight: 510 g
Colour: White
2.4 GHz: Yes
Security algorithms: AES, WEP, WPA, WPA-PSK, WPA2-PSK
Ethernet LAN (RJ-45) ports: 1

Brand: Dell
Category: Wireless Access Point
Model: Aerohive AP130
Part numbers: 210-AOHF, DNAP130I
EAN / UPC: 884116289289, 5397184039212, 5397184124949
Also known as: DELL Aerohive AP130 1000 Mbit/s White Power over Ethernet (PoE)

Specifications

32 specifications in 10 groups

Features

Specification	Value
2.4 GHz	Yes
5 GHz	Yes
Maximum data transfer rate	1000 Mbit/s
Maximum data transfer rate (5 GHz)	867 Mbit/s
Ethernet LAN data rates	10,100,1000 Mbit/s
Frequency band	2.4 - 5.85 GHz
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3z
Spread spectrum method	DSSS
Modulation	256-QAM
Quality of Service (QoS) support	Yes

Security

Specification	Value
Security algorithms	AES, WEP, WPA, WPA-PSK, WPA2-PSK

Protocols

Specification	Value
DHCP client	Yes

Management features

Specification	Value
Web-based management	Yes

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	0

Power

Specification	Value
Power over Ethernet (PoE)	Yes
Power consumption (typical)	9.05 W
Power consumption (max)	11 W

Design

Specification	Value
Placement	Table, Wall
Product colour	White
LED indicators	Yes
Internal	No

Antenna

Specification	Value
Antenna features	Integrated antenna
Antennas quantity	2
Antenna gain level (max)	5 dBi

Weight & dimensions

Specification	Value
Width	147 mm
Depth	147 mm
Height	42 mm
Weight	510 g

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	0 - 95%
