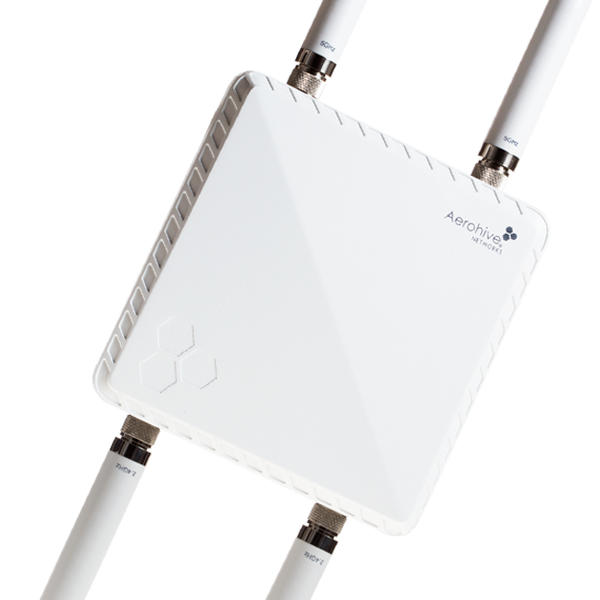

Dell Aerohive AP1130
Model Aerohive AP1130Part no. 210-AOFKEAN 5397184065198
23 specifications
- Speed1000 Mbit/s
- Weight1.08 kg
- ColourWhite
- 2.4 GHzYes
- Ethernet LAN (RJ-45) ports1
- PlacementPole, Wall
Overview
- Speed
- 1000 Mbit/s
- Weight
- 1.08 kg
- Colour
- White
- 2.4 GHz
- Yes
- Ethernet LAN (RJ-45) ports
- 1
- Placement
- Pole, Wall
- Brand
- Dell
- Category
- Wireless Access Point
- Model
- Aerohive AP1130
- Part numbers
- 210-AOFK, DNAP1130E
- EAN / UPC
- 5397184065198, 5397184124963
- Also known as
- DELL Aerohive AP1130 1000 Mbit/s White Power over Ethernet (PoE)
Specifications
23 specifications in 10 groups
Features
| Specification | Value |
|---|---|
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Maximum data transfer rate | 1000 Mbit/s |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
Security
| Specification | Value |
|---|---|
| Security algorithms | 802.1x RADIUS, TKIP, WEP, WPA, WPA2 |
Protocols
| Specification | Value |
|---|---|
| DHCP client | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 0 |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| AC input voltage | 12 V |
Design
| Specification | Value |
|---|---|
| Placement | Pole, Wall |
| Product colour | White |
| International Protection (IP) code | IP67 |
| Internal | No |
Antenna
| Specification | Value |
|---|---|
| Antenna features | Detachable antenna |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 196 mm |
| Depth | 196 mm |
| Height | 54 mm |
| Weight | 1.08 kg |
Packaging content
| Specification | Value |
|---|---|
| Mounting kit | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 55 °C |
| Storage temperature (T-T) | -40 - 80 °C |
