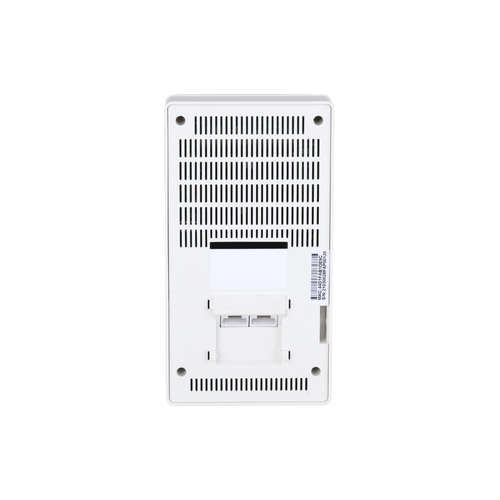

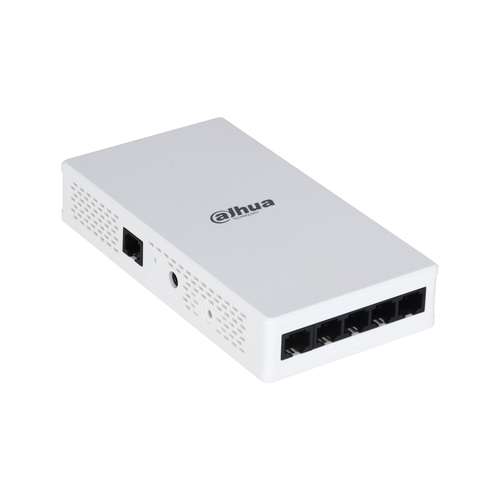

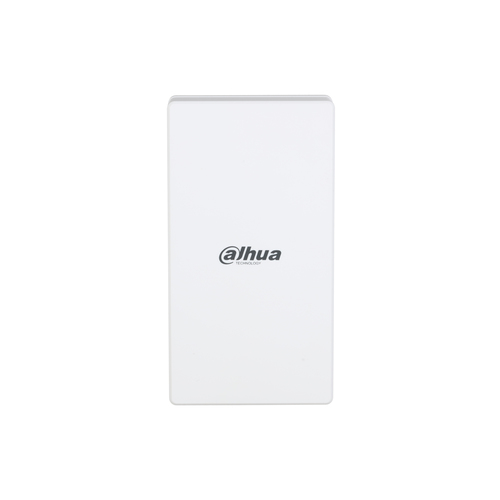

EAP6218-W Wireless Access Point
Model EAP6218-WPart no. DH-EAP6218-WEAN 6923172522191
60 specifications
- Memory512 MB
- Speed1775 Mbit/s
- Weight260 g
- ColourWhite
- 2.4 GHzYes
- Security algorithmsWPA-PSK, WPA2-PSK, WPA3-PSK
Overview
- Memory
- 512 MB
- Speed
- 1775 Mbit/s
- Weight
- 260 g
- Colour
- White
- 2.4 GHz
- Yes
- Security algorithms
- WPA-PSK, WPA2-PSK, WPA3-PSK
- Brand
- Dahua Technology
- Category
- Wireless Access Point
- Model
- EAP6218-W
- Part number
- DH-EAP6218-W
- EAN / UPC
- 6923172522191
- Also known as
- Dahua Technology EAP6218-W Wireless Access Point
Specifications
60 specifications in 15 groups
Features
| Specification | Value |
|---|---|
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| 6 GHz | No |
| Maximum data transfer rate | 1775 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 574 Mbit/s |
| Maximum data transfer rate (5 GHz) | 1201 Mbit/s |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Throughput data rate | 1000 Mbit/s |
| Frequency band | 2.4 - 5.85 GHz |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11h, IEEE 802.3af |
| Cabling technology | 10/100/1000Base-T(X) |
| Channel bandwidth | 80 MHz |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Spread spectrum method | OFDMA |
| Operating modes | FIT AP, FAT AP |
| Dynamic Frequency Selection (DFS) | Yes |
| Quality of Service (QoS) support | Yes |
| Maximum indoor range | 12 m |
| Transmitting power (CE) | 18 dBm |
Security
| Specification | Value |
|---|---|
| Security algorithms | WPA-PSK, WPA2-PSK, WPA3-PSK |
| MAC address filtering | Yes |
| IP address filtering | Yes |
| Service Set Identifier (SSID) features | Hidden SSID |
Protocols
| Specification | Value |
|---|---|
| Supported network protocols | UDP;IPv4;IP Filter;DNS;HTTP;PPPoE;NTP;DHCP;Qos;T CP/IP;DDNS;UPnP;ICMP |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |
| Syslog | Yes |
| Firmware upgradeable | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 7 |
| USB 2.0 ports quantity | 1 |
| USB connector type | USB Type-A |
| WAN connection | Ethernet (RJ-45) |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| DC voltage range | 12 V |
| Input current | 1 A |
| Power consumption (max) | 12 W |
Design
| Specification | Value |
|---|---|
| Placement | Wall |
| Product colour | White |
| Reset button | Yes |
| LED indicators | Yes |
Antenna
| Specification | Value |
|---|---|
| Antenna type | Internal |
| Antenna gain level (max) | 2.9 dBi |
Performance
| Specification | Value |
|---|---|
| Flash memory | 8 MB |
| Internal memory | 512 MB |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 86 mm |
| Depth | 160 mm |
| Height | 29 mm |
| Weight | 260 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 102 mm |
| Package depth | 177 mm |
| Package height | 54 mm |
| Package weight | 390 g |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Bundled software | Independent AP Configure VLAN based on SSID Auto channel Power adjustment 5G Precedence SSID extender WiFi Timer Pass through on VPN connection Configure information restore/back up |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -20 - 45 °C |
| Storage temperature (T-T) | -40 - 70 °C |
Sustainability
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
