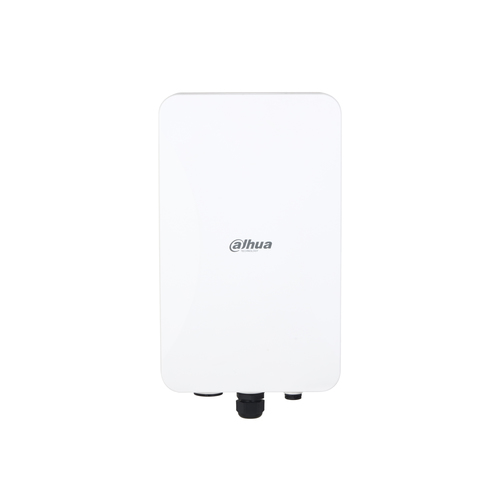

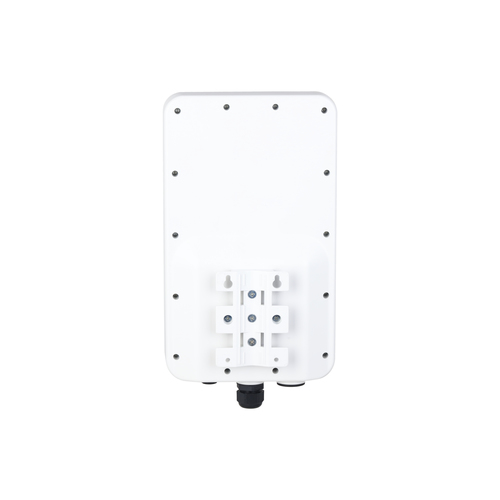

Dahua Technology EAP6218-O Wireless Access Point

Dahua Technology

EAP6218-O Wireless Access Point

Model EAP6218-OPart no. DH-EAP6218-OEAN 6923172522214

55 specifications

Memory512 MB
Speed1775 Mbit/s
Weight1.06 kg
ColourWhite
2.4 GHzYes
Security algorithmsWPA-PSK, WPA2-PSK, WPA3-PSK

See all specifications

Overview

Memory: 512 MB
Speed: 1775 Mbit/s
Weight: 1.06 kg
Colour: White
2.4 GHz: Yes
Security algorithms: WPA-PSK, WPA2-PSK, WPA3-PSK

Brand: Dahua Technology
Category: Wireless Access Point
Model: EAP6218-O
Part number: DH-EAP6218-O
EAN / UPC: 6923172522214
Also known as: Dahua Technology EAP6218-O Wireless Access Point

Specifications

55 specifications in 15 groups

Features

Specification	Value
2.4 GHz	Yes
5 GHz	Yes
6 GHz	No
Maximum data transfer rate	1775 Mbit/s
Maximum data transfer rate (2.4 GHz)	574 Mbit/s
Maximum data transfer rate (5 GHz)	1201 Mbit/s
Ethernet LAN data rates	10,100,1000 Mbit/s
Frequency band	2.4 - 5.85 GHz
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11h, IEEE 802.3af
Cabling technology	10/100/1000Base-T(X)
Channel bandwidth	80 MHz
MIMO	Yes
MIMO type	Multi User MIMO
Operating modes	FIT AP, FAT AP
Dynamic Frequency Selection (DFS)	Yes
Quality of Service (QoS) support	Yes
Maximum outdoor range	100 m
Transmitting power (CE)	24 dBm

Security

Specification	Value
Security algorithms	WPA-PSK, WPA2-PSK, WPA3-PSK
MAC address filtering	Yes
IP address filtering	Yes
Service Set Identifier (SSID) features	Hidden SSID

Protocols

Specification	Value
Supported network protocols	HTTP;TCP/IP;IPv4;UDP;NTP;DHCP;DNS;DDNS;Qos;UP nP;ICMP;PPPoE;IP Filter

Management features

Specification	Value
Web-based management	Yes
Syslog	Yes
Firmware upgradeable	Yes

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	0
WAN connection	Ethernet (RJ-45)

Power

Specification	Value
Power over Ethernet (PoE)	Yes
Power consumption (max)	16 W

Design

Specification	Value
Placement	Pole
Product colour	White
International Protection (IP) code	IP67
LED indicators	Yes

Antenna

Specification	Value
Antenna type	Internal
Antennas quantity	1
Antenna gain level (max)	6 dBi

Performance

Specification	Value
Flash memory	8 MB
Internal memory	512 MB

Certificates

Specification	Value
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS

Weight & dimensions

Specification	Value
Width	181 mm
Depth	304 mm
Height	88 mm
Weight	1.06 kg

Packaging data

Specification	Value
Package width	230 mm
Package depth	380 mm
Package height	107 mm
Package weight	1.62 kg

Packaging content

Specification	Value
Quantity per pack	1 pc(s)
Bundled software	Independent AP Configure VLAN based on SSID Auto channel Power adjustment 5G Precedence SSID extender WiFi Timer Pass through on VPN connection Configure information restore/back up

Operational conditions

Specification	Value
Operating relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	-20 - 55 °C
Storage temperature (T-T)	-40 - 70 °C

Sustainability

Specification	Value
Sustainability compliance	Yes
