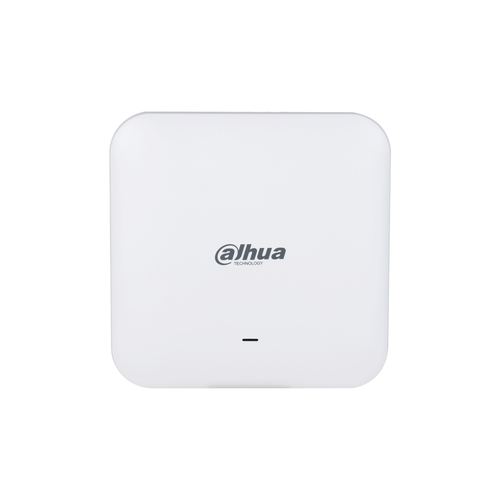

Dahua Technology EAP5212-C Wireless Access Point

Dahua Technology

EAP5212-C Wireless Access Point

Model EAP5212-CPart no. DH-EAP5212-CEAN 6923172522238

57 specifications

Memory128 MB
Speed1200 Mbit/s
Weight360 g
ColourWhite
2.4 GHzYes
Ethernet LAN (RJ-45) ports2

See all specifications

Overview

Memory: 128 MB
Speed: 1200 Mbit/s
Weight: 360 g
Colour: White
2.4 GHz: Yes
Ethernet LAN (RJ-45) ports: 2

Brand: Dahua Technology
Category: Wireless Access Point
Model: EAP5212-C
Part number: DH-EAP5212-C
EAN / UPC: 6923172522238
Also known as: Dahua Technology EAP5212-C Wireless Access Point

Specifications

57 specifications in 15 groups

Features

Specification	Value
2.4 GHz	Yes
5 GHz	Yes
6 GHz	No
Maximum data transfer rate	1200 Mbit/s
Maximum data transfer rate (2.4 GHz)	300 Mbit/s
Maximum data transfer rate (5 GHz)	867 Mbit/s
Ethernet LAN data rates	10,100,1000 Mbit/s
Frequency band	2.4 - 5.85 GHz
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af
Cabling technology	10/100/1000Base-T(X)
Number of users	80 user(s)
Channel bandwidth	80 MHz
MIMO	Yes
MIMO type	Multi User MIMO
Operating modes	FIT AP, FAT AP
Dynamic Frequency Selection (DFS)	Yes
Quality of Service (QoS) support	Yes
Maximum indoor range	15 m
Transmitting power (CE)	20 dBm

Security

Specification	Value
Security algorithms	WPA-PSK, WPA2-AES, WPA2-PSK, WPA2-TKIP
MAC address filtering	Yes
IP address filtering	Yes
Service Set Identifier (SSID) features	Hidden SSID

Protocols

Specification	Value
Supported network protocols	HTTP; TCP/IP; IPv4; UDP; NTP; DHCP; DNS; DDNS; Qos; UPnP; ICMP; PPPoE; IP Filter

Management features

Specification	Value
Syslog	Yes
Firmware upgradeable	Yes

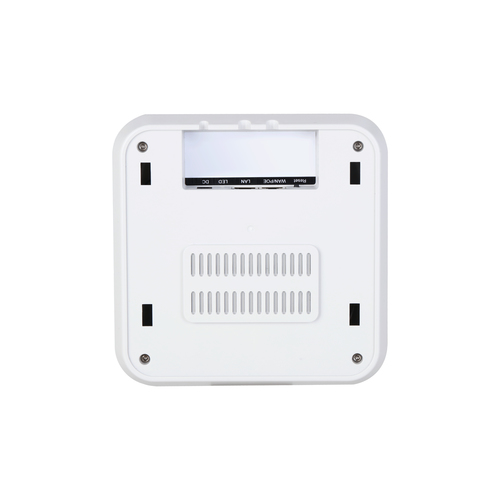

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	2
USB 2.0 ports quantity	0
WAN connection	Ethernet (RJ-45)
DC-in jack	Yes

Power

Specification	Value
Power over Ethernet (PoE)	Yes
DC voltage range	12 V
Input current	1 A
Power consumption (max)	10 W

Design

Specification	Value
Placement	Ceiling
Product colour	White
Reset button	Yes
LED indicators	Yes

Antenna

Specification	Value
Antenna type	Internal
Antenna gain level (max)	4.6 dBi

Performance

Specification	Value
Flash memory	8 MB
Internal memory	128 MB

Certificates

Specification	Value
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS

Weight & dimensions

Specification	Value
Width	168 mm
Depth	168 mm
Height	32 mm
Weight	360 g

Packaging data

Specification	Value
Package width	235 mm
Package depth	243 mm
Package height	76 mm
Package weight	710 g

Packaging content

Specification	Value
Quantity per pack	1 pc(s)
Bundled software	Independent AP Configure VLAN based on SSID Auto channel Power adjustment 5G Precedence SSID extender WiFi Timer Pass through on VPN connection Configure information restore/back up

Operational conditions

Specification	Value
Operating relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	-20 - 45 °C
Storage temperature (T-T)	-40 - 70 °C

Sustainability

Specification	Value
Sustainability compliance	Yes
