Nuclias AX3600
Model Nuclias AX3600Part no. DBA-X2830PEAN 790069454523
52 specifications
- Speed2402 Mbit/s
- Weight935 g
- ColourWhite
- 2.4 GHzYes
- IPv4 & IPv6 featuresIPv6 portal
- Ethernet LAN (RJ-45) ports2
Overview
- Speed
- 2402 Mbit/s
- Weight
- 935 g
- Colour
- White
- 2.4 GHz
- Yes
- IPv4 & IPv6 features
- IPv6 portal
- Ethernet LAN (RJ-45) ports
- 2
- Brand
- D-Link
- Category
- Wireless Access Point
- Model
- Nuclias AX3600
- Part number
- DBA-X2830P
- EAN / UPC
- 790069454523
- Also known as
- D-Link Nuclias AX3600 Wi-Fi Cloud-Managed Access Point
Specifications
52 specifications in 12 groups
Features
| Specification | Value |
|---|---|
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Maximum data transfer rate | 2402 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 1147 Mbit/s |
| Maximum data transfer rate (5 GHz) | 2402 Mbit/s |
| Ethernet LAN data rates | 10,100,1000,25000 Mbit/s |
| Throughput data rate | 3.6 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| VLAN support | Yes |
| Flow control support | Yes |
| Band steering | Yes |
| Transmitting power (CE) | 20 dBm |
| Transmitting power (FCC) | 20 dBm |
| Mean time between failures (MTBF) | 485000 h |
Security
| Specification | Value |
|---|---|
| Security algorithms | SSID, WPA, WPA-RADIUS, WPA2, WPA3 |
| MAC address filtering | Yes |
| IP address filtering | Yes |
| Number of SSID supported | 16 |
| System status alarm | Yes |
| Remote Authentication Dial-In User Service (RADIUS) | Yes |
Protocols
| Specification | Value |
|---|---|
| IPv4 & IPv6 features | IPv6 portal |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |
| Firmware upgradeable | Yes |

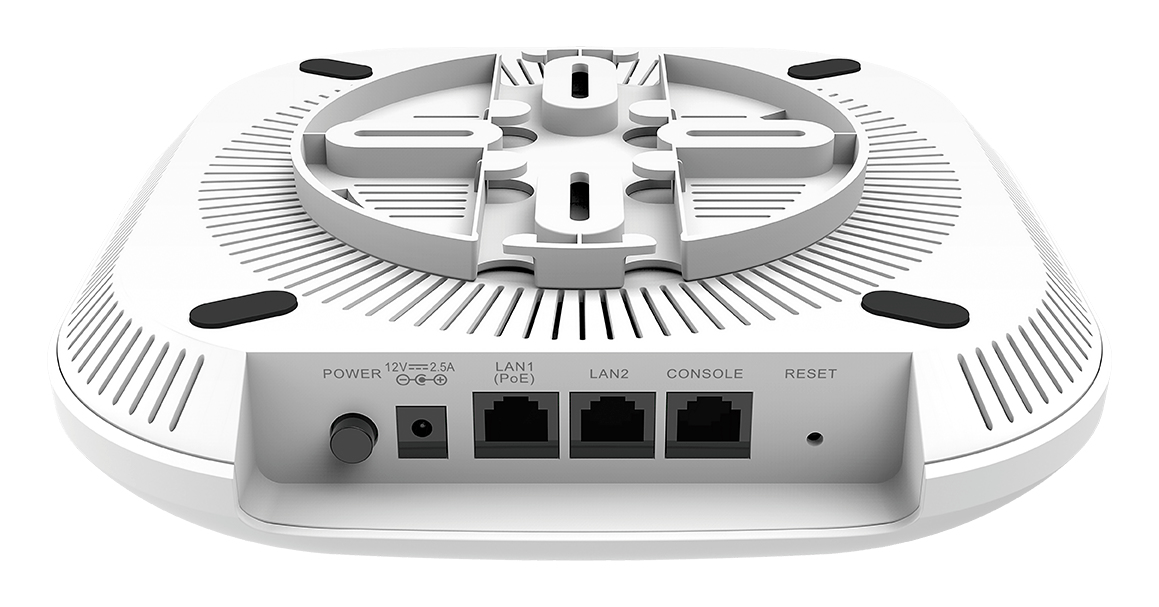

Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| Internal RJ-45 ports quantity | 1 |
| WAN connection | Ethernet (RJ-45) |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Output voltage | 12 V |
| Output current | 2.5 A |
| Power consumption (typical) | 25.1 W |
| Power consumption (max) | 27 W |
Design
| Specification | Value |
|---|---|
| Placement | Ceiling, Table, Wall |
| Product colour | White |
| On/off switch | Yes |
| Reset button | Yes |
| LED indicators | LAN, PoE, Power |
Antenna
| Specification | Value |
|---|---|
| Antenna type | Internal |
| Antenna direction type | Omni-directional |
| Antennas quantity | 4 |
| Antenna gain level (max) | 4 dBi |
Certificates
| Specification | Value |
|---|---|
| Certification | CE Class B FCC Class B UL-2043 IC Class B |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 224.5 mm |
| Depth | 223.9 mm |
| Height | 50 mm |
| Weight | 935 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 65 °C |
| Storage relative humidity (H-H) | 5 - 95% |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
