D-Link DWL-8620APE wireless access point 2533 Mbit/s White Power over Ethernet (PoE)

DWL-8620APE wireless access point 2533 Mbit/s White Power over Ethernet (PoE)

Model DWL-8620APEEAN 790069441417

61 specifications

Speed2533 Mbit/s
Weight920 g
ColourWhite
2.4 GHzYes
Management protocolsSNMP v1/v2c/v3
Ethernet LAN (RJ-45) ports2

See all specifications

Overview

Speed: 2533 Mbit/s
Weight: 920 g
Colour: White
2.4 GHz: Yes
Management protocols: SNMP v1/v2c/v3
Ethernet LAN (RJ-45) ports: 2

Brand: D-Link
Category: Wireless Access Point
Model: DWL-8620APE
Part number: DWL-8620APE
EAN / UPC: 790069441417
Also known as: D-Link DWL-8620APE wireless access point 2533 Mbit/s White Power over Ethernet (PoE)

Specifications

61 specifications in 14 groups

Features

Specification	Value
2.4 GHz	Yes
5 GHz	Yes
Maximum data transfer rate	2533 Mbit/s
Ethernet LAN data rates	10,100,1000 Mbit/s
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u
Channels quantity	165 channels
Automatic channel selection	Yes
MIMO	Yes
Wi-Fi Multimedia (WMM)/(WME)	Yes
VLAN support	Yes
Band steering	Yes
Airtime Fairness (ATF)	Yes
Quality of Service (QoS) support	Yes
Mean time between failures (MTBF)	460185 h

Security

Specification	Value
Security algorithms	AES, TKIP, WPA, WPA-Enterprise, WPA2, WPA2-Enterprise
MAC address filtering	Yes
Number of SSID supported	32
Auto Wireless Distribution System (WDS)	Yes

Protocols

Specification	Value
Management protocols	SNMP v1/v2c/v3

Management features

Specification	Value
Web-based management	Yes

Ports & interfaces

Specification	Value

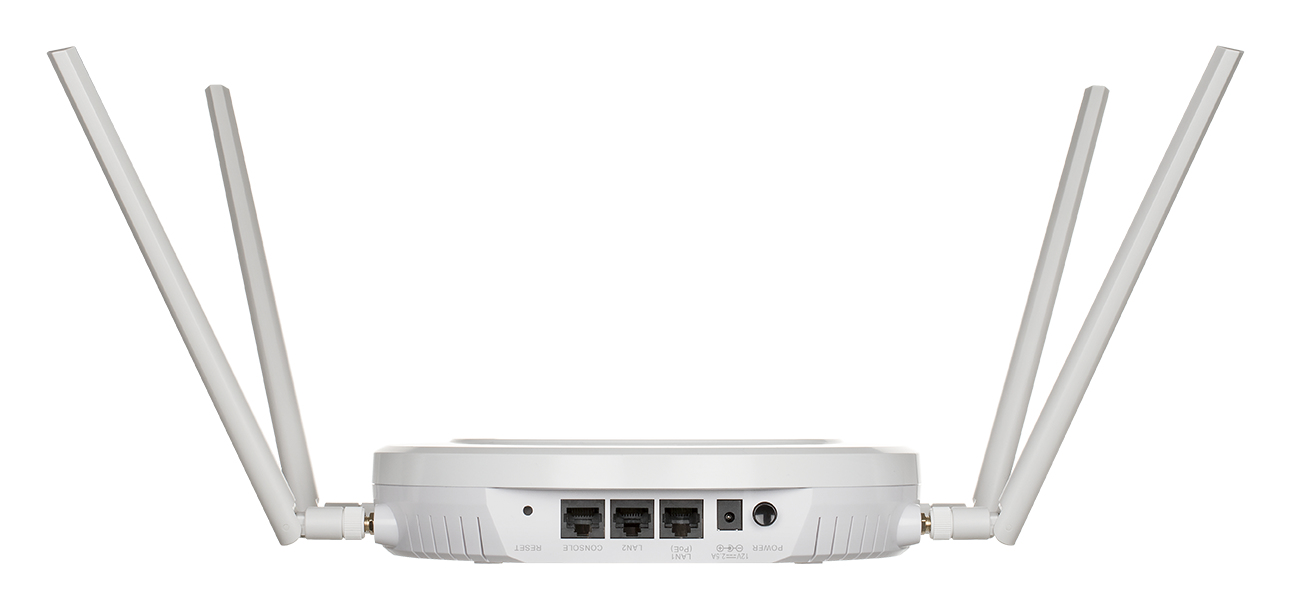

Ethernet LAN (RJ-45) ports	2
DC-in jack	Yes

Power

Specification	Value
Power over Ethernet (PoE)	Yes
Output voltage	12 V
Output current	2.5 A
Power consumption (max)	24.24 W

Design

Specification	Value
Placement	Ceiling, Wall
Product colour	White
Reset button	Yes
Internal	No

Antenna

Specification	Value
Antennas quantity	4

Technical details

Specification	Value
Master (outer) cases per pallet (air)	24 pc(s)
Master (outer) cases per pallet (sea)	30 pc(s)
Pallet gross length	110 cm
Pallet gross weight (air)	226.3 kg
Pallet gross weight (sea)	276.9 kg
Pallet gross width	120 cm
Pallet height (air)	144.7 cm
Pallet height (sea)	177.5 cm
Products per pallet (air)	120 pc(s)
Products per pallet (sea)	150 pc(s)
Products per shipping (inner) case	5 pc(s)
Shipping (inner) case gross weight	8.37 kg
Shipping (inner) case height	32.8 cm
Shipping (inner) case length	44.9 cm
Shipping (inner) case net weight	7.5 kg
Shipping (inner) case width	31.2 cm

Certificates

Specification	Value
Certification	CE; EN55032, EN55024, EN61000-3-2, EN61000-3-3, EN60601-1-2, EN301489-1, EN301489-17, EN300328, EN301893; FCC; IC; cUL+UL; CB; RCM; NCC; BSMI;

Weight & dimensions

Specification	Value
Width	220 mm
Depth	220 mm
Height	47 mm
Weight	920 g

Packaging data

Specification	Value
Package width	295 mm
Package depth	296 mm
Package height	94 mm
Package weight	1.5 kg

Operational conditions

Specification	Value
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 65 °C
Storage relative humidity (H-H)	5 - 95%

Logistics data

Specification	Value
Harmonized System (HS) code	85176990
