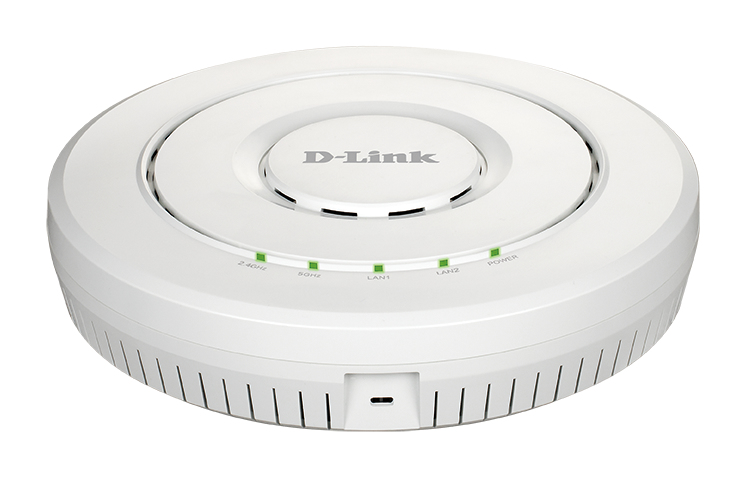

D-Link DWL-8620AP wireless access point 2533 Mbit/s White Power over Ethernet (PoE)
Model DWL-8620APEAN 790069441219
64 specifications
- Speed2533 Mbit/s
- Weight790 g
- ColourWhite
- 2.4 GHzYes
- Management protocolsSNMP v1/v2c/v3
- Ethernet LAN (RJ-45) ports2
Overview
- Speed
- 2533 Mbit/s
- Weight
- 790 g
- Colour
- White
- 2.4 GHz
- Yes
- Management protocols
- SNMP v1/v2c/v3
- Ethernet LAN (RJ-45) ports
- 2
- Brand
- D-Link
- Category
- Wireless Access Point
- Model
- DWL-8620AP
- Part numbers
- DWL-8620AP, DWL8620AP
- EAN / UPC
- 790069441219, 790069441400
- Also known as
- D-Link DWL-8620AP wireless access point 2533 Mbit/s White Power over Ethernet (PoE)
Specifications
64 specifications in 15 groups
Features
| Specification | Value |
|---|---|
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Maximum data transfer rate | 2533 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 800 Mbit/s |
| Maximum data transfer rate (5 GHz) | 1733 Mbit/s |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.1s, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u |
| Automatic channel selection | Yes |
| MIMO | Yes |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Fast roaming | Yes |
| Band steering | Yes |
| Airtime Fairness (ATF) | Yes |
| Quality of Service (QoS) support | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | AES, TKIP, WPA, WPA-Enterprise, WPA2, WPA2-Enterprise |
| MAC address filtering | Yes |
| Number of SSID supported | 32 |
| Auto Wireless Distribution System (WDS) | Yes |
Protocols
| Specification | Value |
|---|---|
| Management protocols | SNMP v1/v2c/v3 |
Management features
| Specification | Value |
|---|---|
| Command-line interface (CLI) | Yes |

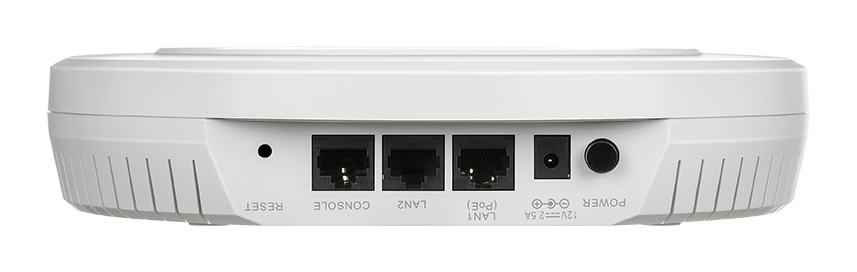

Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| AC input voltage | 12 V |
| Input current | 2.5 A |
| Power consumption (max) | 24.24 W |
Design
| Specification | Value |
|---|---|
| Product colour | White |
| Housing material | Plastic |
Antenna
| Specification | Value |
|---|---|
| Antenna type | Internal |
| Antenna direction type | Omni-directional |
| Antennas quantity | 2 |
| Antenna gain level (max) | 4 dBi |
Technical details
| Specification | Value |
|---|---|
| Master (outer) cases per pallet (air) | 24 pc(s) |
| Master (outer) cases per pallet (sea) | 30 pc(s) |
| Pallet gross length | 110 cm |
| Pallet gross weight (air) | 222.3 kg |
| Pallet gross weight (sea) | 272 kg |
| Pallet gross width | 120 cm |
| Pallet height (air) | 144.7 cm |
| Pallet height (sea) | 177.5 cm |
| Products per pallet (air) | 120 pc(s) |
| Products per pallet (sea) | 150 pc(s) |
| Products per shipping (inner) case | 5 pc(s) |
| Shipping (inner) case gross weight | 8.2 kg |
| Shipping (inner) case height | 32.8 cm |
| Shipping (inner) case length | 44.9 cm |
| Shipping (inner) case net weight | 7.33 kg |
| Shipping (inner) case width | 31.2 cm |
Certificates
| Specification | Value |
|---|---|
| Certification | CE |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 220 mm |
| Depth | 220 mm |
| Height | 47 mm |
| Weight | 790 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 295 mm |
| Package depth | 296 mm |
| Package height | 94 mm |
| Package weight | 1.47 kg |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Quick start guide | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 0 - 40% |
| Operating temperature (T-T) | -20 - 65 °C |
| Storage temperature (T-T) | 10 - 90 °C |
| Storage relative humidity (H-H) | 5 - 95% |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
