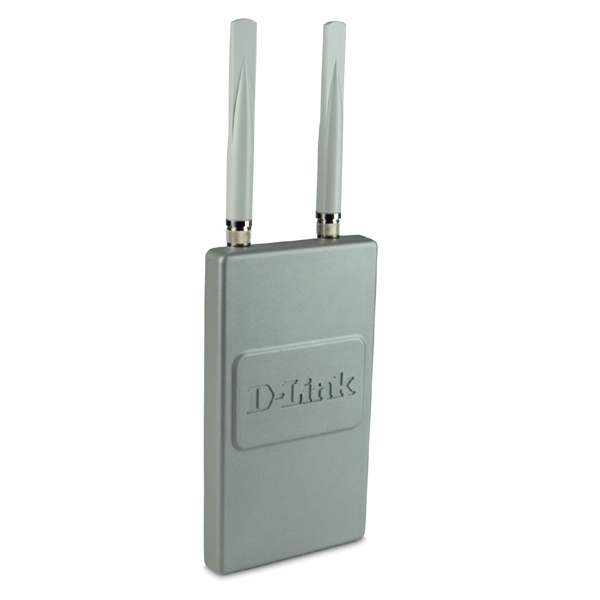

D-Link DWL-7700AP 100 Mbit/s Power over Ethernet (PoE)

D-Link DWL-7700AP 100 Mbit/s Power over Ethernet (PoE)

Model DWL-7700APPart no. DWL-7700AP/A

35 specifications
  • Speed100 Mbit/s
  • Weight1.95 kg
  • 2.4 GHzYes
  • Supported network protocolsTelnet
  • Management platformAP Manager
  • LED indicatorsLAN, WLAN
See all specifications

Overview

Speed
100 Mbit/s
Weight
1.95 kg
2.4 GHz
Yes
Supported network protocols
Telnet
Management platform
AP Manager
LED indicators
LAN, WLAN
Brand
D-Link
Model
DWL-7700AP
Part number
DWL-7700AP/A
Also known as
D-Link DWL-7700AP 100 Mbit/s Power over Ethernet (PoE)

Specifications

35 specifications in 12 groups

Features

2.4 GHzYes
5 GHzYes
Maximum data transfer rate100 Mbit/s
Ethernet LAN data rates10,100 Mbit/s
Frequency band2.4 - 5.85 GHz
Networking standardsIEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Spread spectrum methodDSSS
Modulation16-QAM, 64-QAM, BPSK, CCK, DBPSK, DQPSK, OFDM, QPSK
Receiver sensitivity802.11a: +6Mbps: -85dBm + 9Mbps: -84dBm +12Mbps: -82dBm + 18Mbps: -80dBm +24Mbps: -77dBm + 36Mbps: -73dBm +48Mbps: -69dBm + 54Mbps: -68dBm 802.11b: +1Mbps: -94dBm + 2Mbps: -91dBm +5.5Mbps: -89dBm + 11Mbps: -85dBm 802.11g: +1Mbps: -95dBm + 2Mbps: -91dBm +5.5Mbps: -89dBm + 6Mbps: -90dBm +9Mbps: -84dBm

Security

Security algorithms128-bit WEP, 152-bit WEP, 64-bit WEP, SSID, WPA, WPA2
MAC address filteringYes

Protocols

Supported network protocolsTelnet
Management protocolsSNMP

Management features

Management platformAP Manager

Power

Power over Ethernet (PoE)Yes
Power consumption (typical)28.5 W
Power requirements48 VDC

Design

LED indicatorsLAN, WLAN
InternalNo

Antenna

Antenna gain level (max)5 dBi

Certificates

CertificationFCC, CSA

Weight & dimensions

Dimensions (WxDxH)155 x 278 x 45 mm
Weight1.95 kg

Packaging content

Bundled softwareAP Manager

Other features

Supported data transfer rates1, 2, 5.5, 9, 10, 11, 12, 18, 24, 36, 48, 54, 100 Mbps
Indoor range99 m
Outdoor range500 m
Data transfer rate0.1 Gbit/s
Compliance industry standards802.11a, 802.11b, 802.11g, 802.3, 802.3u, 802.3x
Networking featuresFast Ethernet
Power LEDYes

Operational conditions

Operating relative humidity (H-H)10 - 90%
Operating temperature (T-T)-40 - 60 °C
Storage temperature (T-T)-40 - 65 °C
Storage relative humidity (H-H)5 - 95%
