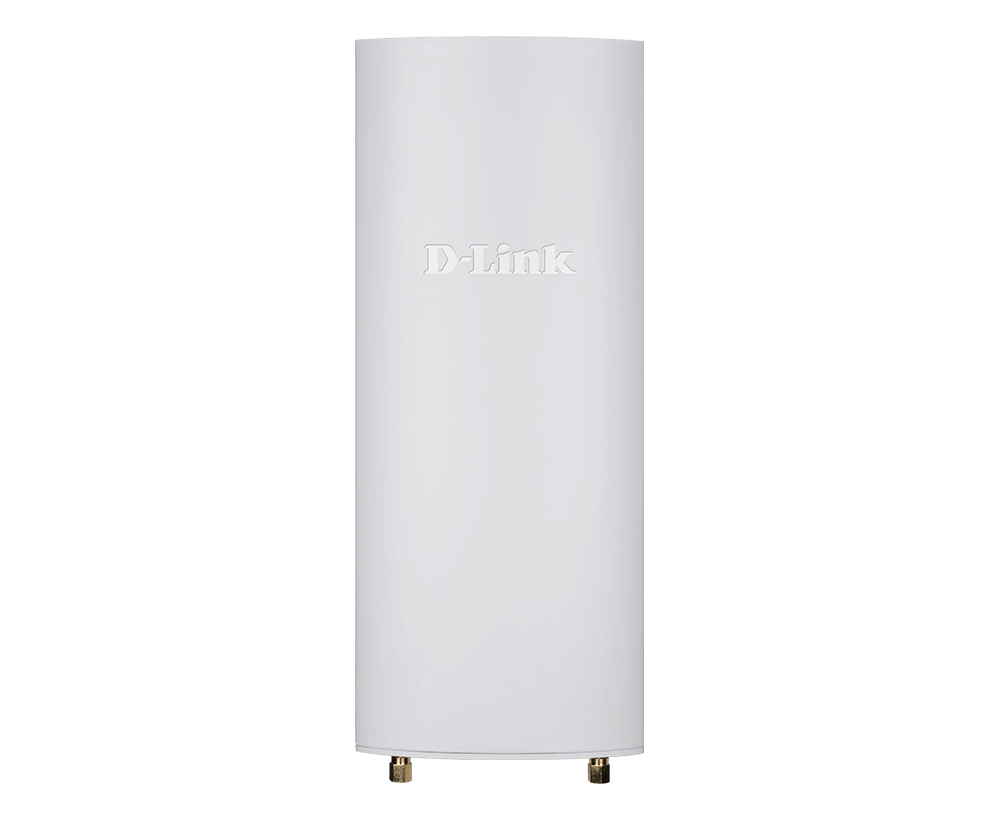

DWL-6720AP wireless access point 867 Mbit/s White Power over Ethernet (PoE)
Model DWL-6720APEAN 790069452796
40 specifications
- Speed867 Mbit/s
- Weight853 g
- ColourWhite
- 2.4 GHzYes
- Ethernet LAN (RJ-45) ports1
- Antenna typeInternal
Overview
- Speed
- 867 Mbit/s
- Weight
- 853 g
- Colour
- White
- 2.4 GHz
- Yes
- Ethernet LAN (RJ-45) ports
- 1
- Antenna type
- Internal
- Brand
- D-Link
- Category
- Wireless Access Point
- Model
- DWL-6720AP
- Part number
- DWL-6720AP
- EAN / UPC
- 790069452796
- Also known as
- D-Link DWL-6720AP wireless access point 867 Mbit/s White Power over Ethernet (PoE)
Specifications
40 specifications in 10 groups
Features
| Specification | Value |
|---|---|
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| 6 GHz | No |
| Maximum data transfer rate | 867 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 400 Mbit/s |
| Maximum data transfer rate (5 GHz) | 867 Mbit/s |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Frequency band | 2483.5 - 5850 GHz |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af |
| Cabling technology | 10/100/1000Base-T(X) |
| Channels quantity | 165 channels |
| MIMO | Yes |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| VLAN support | Yes |
| Quality of Service (QoS) support | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | AES, SNMP, SNMPv2, SNMPv3, SSID, TKIP |
| MAC address filtering | Yes |
| Number of SSID supported | 32 |
| Auto Wireless Distribution System (WDS) | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power consumption (max) | 13 W |
Design
| Specification | Value |
|---|---|
| Product colour | White |
| Housing material | Plastic |
| International Protection (IP) code | IP55 |
Antenna
| Specification | Value |
|---|---|
| Antenna type | Internal |
| Antenna direction type | Omni-directional |
| Antenna features | Integrated antenna |
| Antenna gain level (max) | 5 dBi |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, EN55032, EN55024, EN61000-3-2, EN61000-3-3, EN60601- 1-2 (Medical electrical equipment), EN301489-1, EN301489-17, EN300328, EN301893, FCC, IC |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 115 mm |
| Depth | 65.5 mm |
| Height | 291.9 mm |
| Weight | 853 g |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Mounting kit | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -40 - 50 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Storage relative humidity (H-H) | 5 - 95% |
