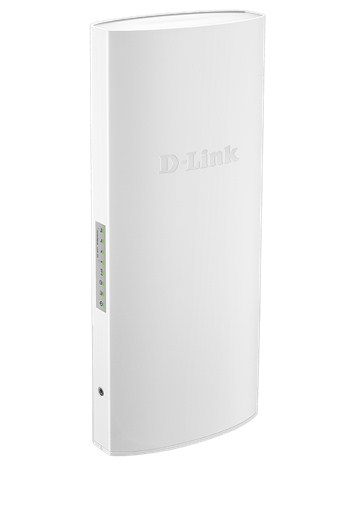

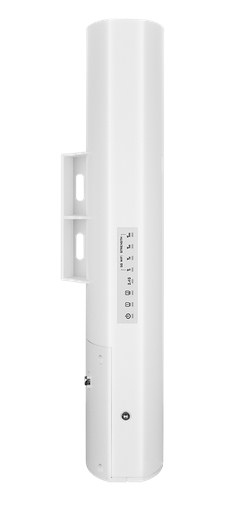

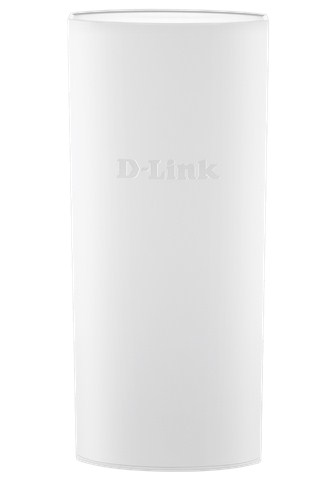

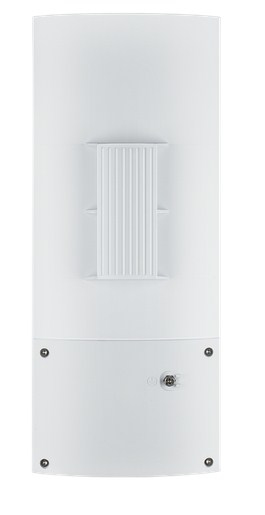

D-Link DWL 6700AP
Model DWL 6700APPart no. DWL-6700APEAN 790069412974
49 specifications
- Speed100 Mbit/s
- Weight495 g
- 2.4 GHzYes
- Security algorithmsAES, TKIP, WPA, WPA2
- Ethernet LAN (RJ-45) ports2
- Housing materialPlastic
Overview
- Speed
- 100 Mbit/s
- Weight
- 495 g
- 2.4 GHz
- Yes
- Security algorithms
- AES, TKIP, WPA, WPA2
- Ethernet LAN (RJ-45) ports
- 2
- Housing material
- Plastic
- Brand
- D-Link
- Category
- Wireless Access Point
- Model
- DWL 6700AP
- Part number
- DWL-6700AP
- EAN / UPC
- 790069412974, 5054629871157
- Also known as
- D-Link DWL 6700AP 100 Mbit/s Power over Ethernet (PoE)
Specifications
49 specifications in 10 groups
Features
| Specification | Value |
|---|---|
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Maximum data transfer rate | 100 Mbit/s |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Frequency band | 2.4, 5 GHz |
| Networking standards | IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Channels quantity | 13 channels |
| VLAN support | Yes |
| Quality of Service (QoS) support | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | AES, TKIP, WPA, WPA2 |
| MAC address filtering | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| WAN connection | Ethernet (RJ-45) |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| AC input voltage | 100 - 240 V |
| Output voltage | 24 V |
| Output current | 1 A |
Design
| Specification | Value |
|---|---|
| Housing material | Plastic |
| International Protection (IP) code | IP55 |
| Reset button | Yes |
| LED indicators | Yes |
| Internal | No |
Technical details
| Specification | Value |
|---|---|
| Master (outer) cases per pallet (air) | 30 pc(s) |
| Master (outer) cases per pallet (sea) | 42 pc(s) |
| Pallet gross length | 110 cm |
| Pallet gross weight (air) | 258.1 kg |
| Pallet gross weight (sea) | 352.5 kg |
| Pallet gross width | 120 cm |
| Pallet height (air) | 141 cm |
| Pallet height (sea) | 192 cm |
| Products per pallet (air) | 150 pc(s) |
| Products per pallet (sea) | 210 pc(s) |
| Products per shipping (inner) case | 5 pc(s) |
| Shipping (inner) case gross weight | 7.87 kg |
| Shipping (inner) case height | 25.5 cm |
| Shipping (inner) case length | 44.7 cm |
| Shipping (inner) case net weight | 7.1 kg |
| Shipping (inner) case width | 33.6 cm |
Certificates
| Specification | Value |
|---|---|
| Certification | CE FCC IC cUL LVD C-Tick NCC Wi-Fi TELEC |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 280 mm |
| Depth | 115 mm |
| Height | 50 mm |
| Weight | 495 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 224 mm |
| Package depth | 317 mm |
| Package height | 84 mm |
| Package weight | 1.42 kg |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | -30 - 50% |
| Storage temperature (T-T) | -30 - 65 °C |
