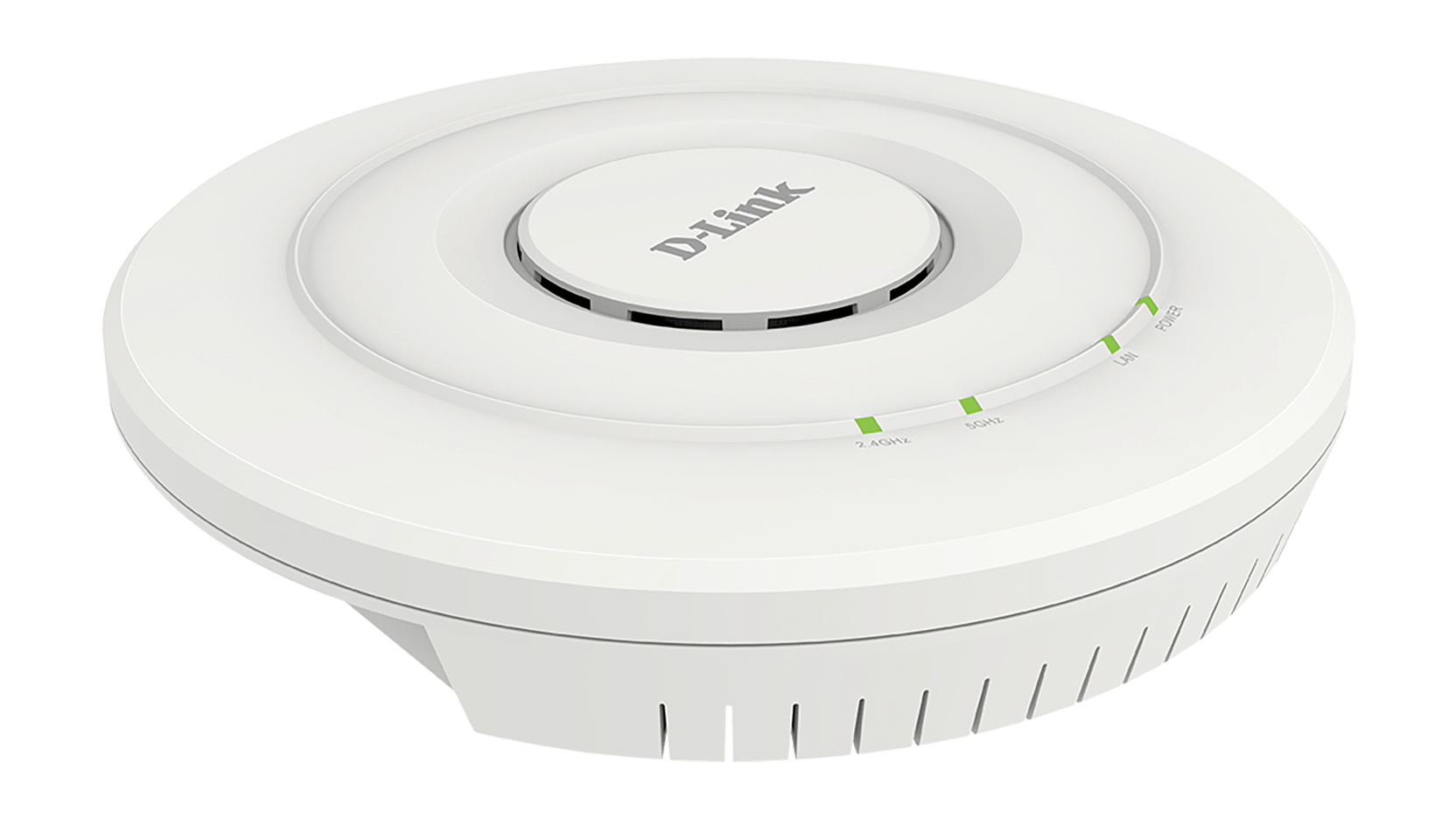

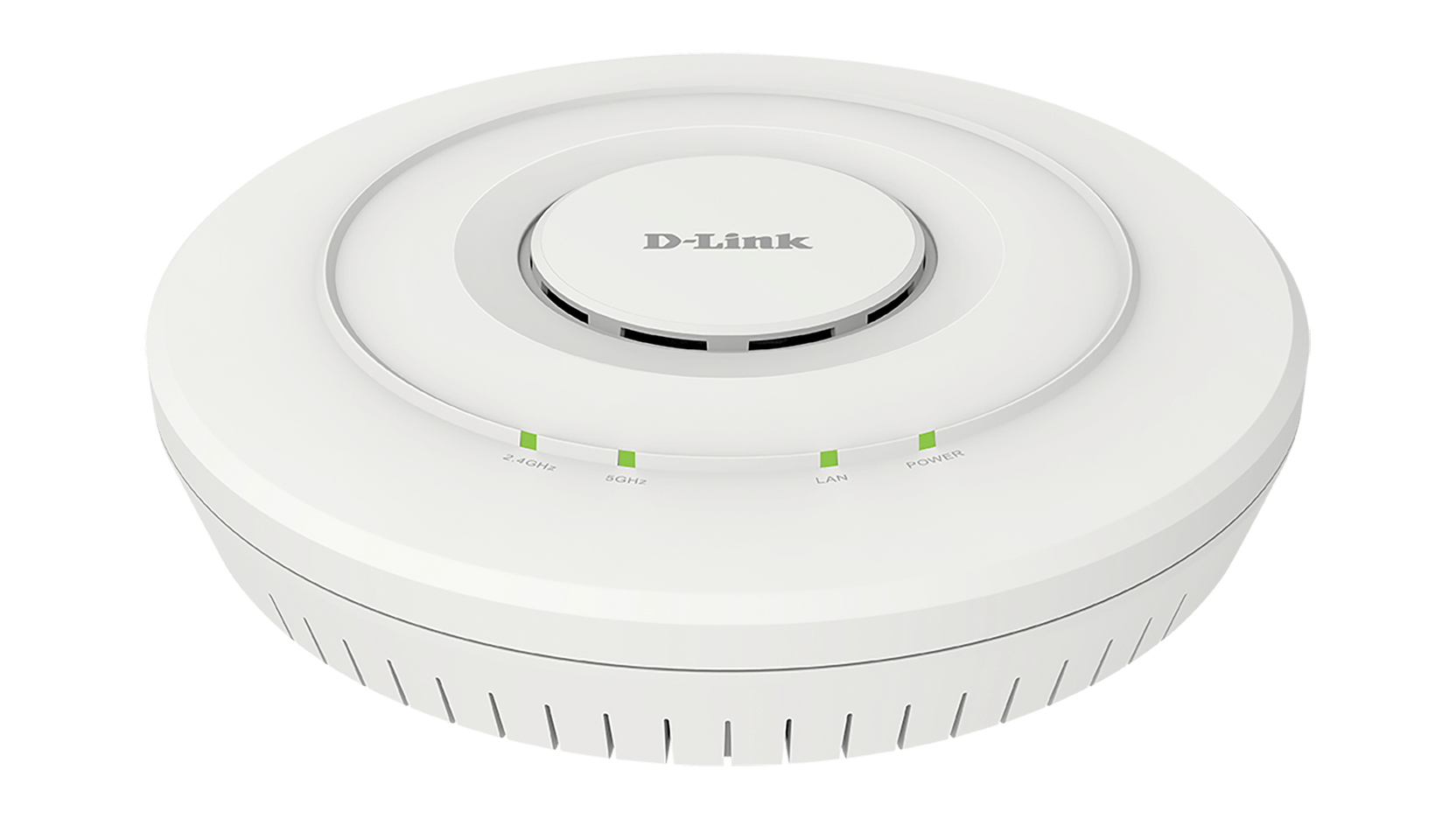

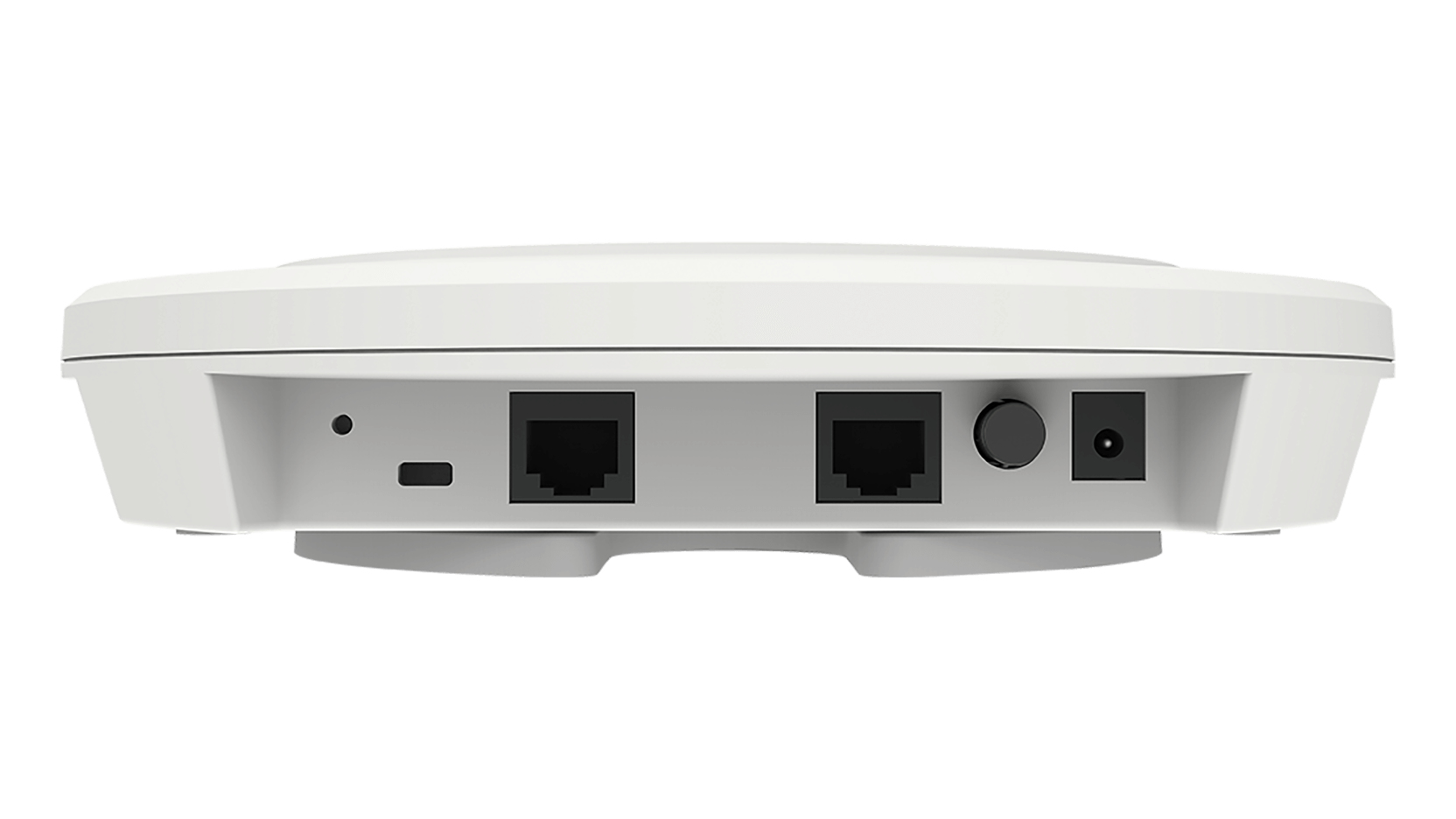

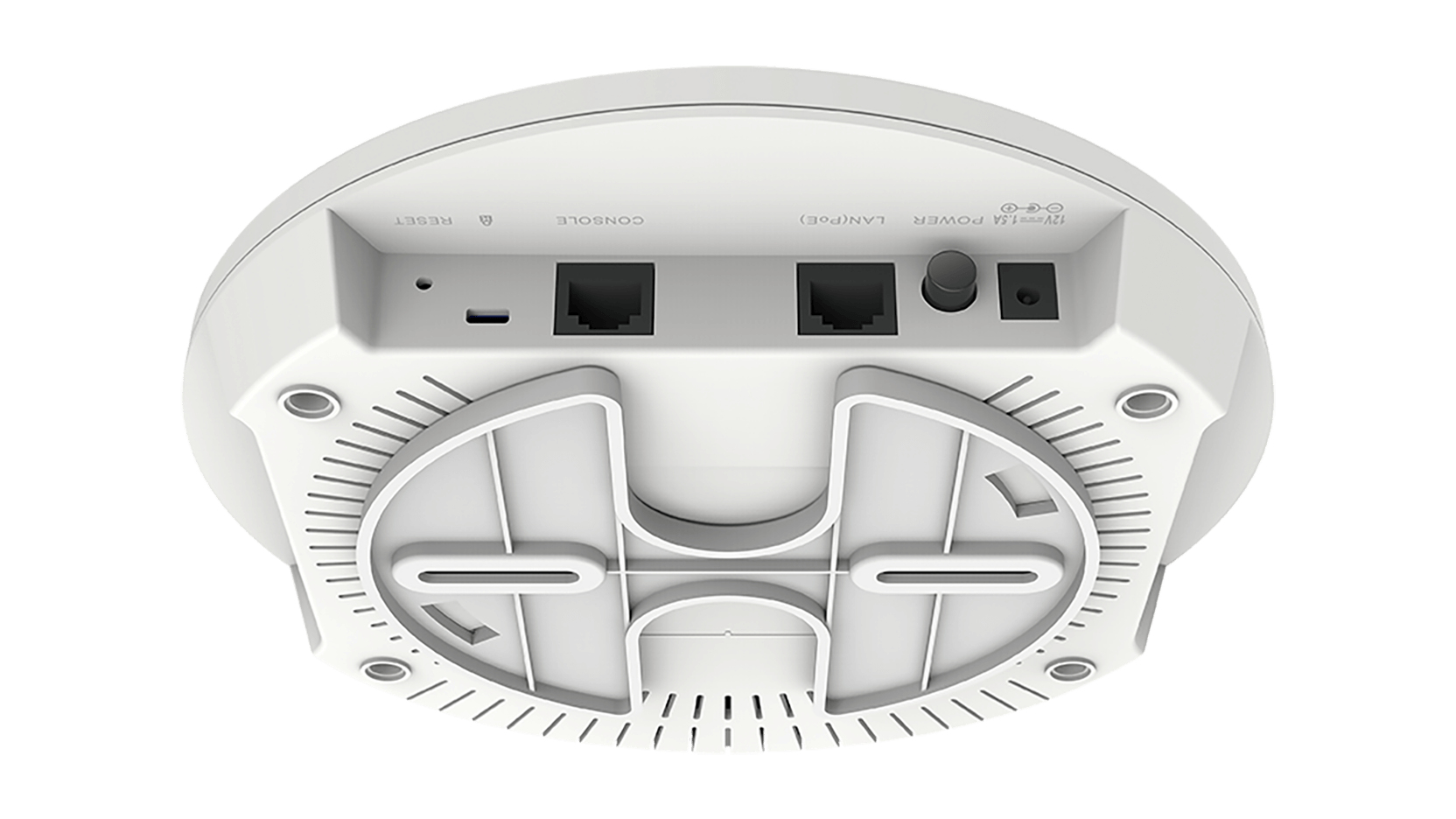

D-Link DWL-6610AP wireless access point 1200 Mbit/s Power over Ethernet (PoE)

D-Link DWL-6610AP wireless access point 1200 Mbit/s Power over Ethernet (PoE)

Model DWL-6610APPart no. DWL-6610AP-BUNEAN 790069416897

50 specifications
  • Speed1200 Mbit/s
  • Weight500 g
  • 2.4 GHzYes
  • Security algorithmsAES, HTTPS, SSH, TKIP, WPA, WPA2
  • Management protocolsSNMP
  • Ethernet LAN (RJ-45) ports1
See all specifications

Overview

Speed
1200 Mbit/s
Weight
500 g
2.4 GHz
Yes
Security algorithms
AES, HTTPS, SSH, TKIP, WPA, WPA2
Management protocols
SNMP
Ethernet LAN (RJ-45) ports
1
Brand
D-Link
Model
DWL-6610AP
Part numbers
DWL-6610AP-BUN, DWL-6610AP, DWL-6610AP?KIT
EAN / UPC
790069416897, 790069416828, 790069416835, 790069416842
Also known as
D-Link DWL-6610AP wireless access point 1200 Mbit/s Power over Ethernet (PoE)

Specifications

50 specifications in 14 groups

Features

2.4 GHzYes
5 GHzYes
Maximum data transfer rate1200 Mbit/s
Ethernet LAN data rates10,100,1000 Mbit/s
Networking standardsIEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u
VLAN supportYes
Quality of Service (QoS) supportYes

Security

Security algorithmsAES, HTTPS, SSH, TKIP, WPA, WPA2
MAC address filteringYes

Protocols

Management protocolsSNMP

Management features

Web-based managementYes

Ports & interfaces

Ethernet LAN (RJ-45) ports1
DC-in jackYes

Power

Power over Ethernet (PoE)Yes
Output voltage12 V
Output current2 A
Power consumption (max)16.6 W

Design

Housing materialPlastic
On/off switchYes
Reset buttonYes

Antenna

Antenna gain level (max)6.5 dBi

Technical details

Master (outer) cases per pallet (air)24 pc(s)
Master (outer) cases per pallet (sea)42 pc(s)
Pallet gross length110 cm
Pallet gross weight (air)200.6 kg
Pallet gross weight (sea)332.5 kg
Pallet gross width120 cm
Pallet height (air)123.5 cm
Pallet height (sea)2.06 m
Products per pallet (air)144 pc(s)
Products per pallet (sea)252 pc(s)
Products per shipping (inner) case6 pc(s)
Shipping (inner) case gross weight7.3 kg
Shipping (inner) case height27.5 cm
Shipping (inner) case length56.5 cm
Shipping (inner) case net weight6.39 kg
Shipping (inner) case width34.3 cm

Certificates

CertificationCE EN 301 893 V1.7.1 (2012-06) (DFS/TPC) EN 300 328 V1.8.1 (2012-06) FCC IC cUL LVD UL2043 C-Tick BSMI NCC

Weight & dimensions

Width158.8 mm
Depth158.8 mm
Height69.4 mm
Weight500 g

Packaging data

Package width243 mm
Package depth235 mm
Package height90 mm
Package weight1.06 kg

Operational conditions

Operating relative humidity (H-H)10 - 90%
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 65 °C

Logistics data

Harmonized System (HS) code85176990
