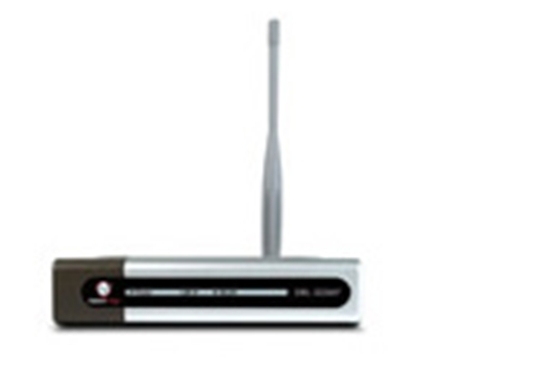

DWL-2130AP 802.11g Access Point with PoE for DWS-3200 Series Wireless Switches
Model DWL-2130AP 802.11g Access Point with PoE for DWS-3200 Series Wireless SwitchesPart no. DWL-2130APEAN 790069289705
22 specifications
- Speed54 Mbit/s
- 2.4 GHzYes
- Media access protocolCSMA/CA
- Ethernet LAN (RJ-45) ports1
- Power requirements48V DC
- Antenna gain level (max)2 dBi
Overview
- Speed
- 54 Mbit/s
- 2.4 GHz
- Yes
- Media access protocol
- CSMA/CA
- Ethernet LAN (RJ-45) ports
- 1
- Power requirements
- 48V DC
- Antenna gain level (max)
- 2 dBi
- Brand
- D-Link
- Category
- Wireless Access Point
- Model
- DWL-2130AP 802.11g Access Point with PoE for DWS-3200 Series Wireless Switches
- Part number
- DWL-2130AP
- EAN / UPC
- 790069289705
- Also known as
- D-Link DWL-2130AP 802.11g Access Point with PoE for DWS-3200 Series Wireless Switches 54 Mbit/s
Specifications
22 specifications in 8 groups
Features
| Specification | Value |
|---|---|
| 2.4 GHz | Yes |
| Maximum data transfer rate | 54 Mbit/s |
| Frequency band | 2.4 - 2.497 GHz |
| Cabling technology | 10/100Base-T(X) |
| Channels quantity | 11 channels |
| Modulation | BPSK, CCK, DBPSK, DQPSK, OFDM, QPSK |
| Receiver sensitivity | IEEE 802.11b: -84dBm 11Mb/s - 8%, -89dBm @ 5.5Mb/s, -90dBm for 2Mb/s - 8%, -93dBm @ 1Mb/s. IEEE 802.11g: -85dBm at 6Mb/s, -84dBm at 9Mb/s, -82dBm at 12Mb/s, -80dBm at 18Mb/s, -77dBm at 24Mb/s, -73dBm at 36Mb/s, -69dBm at 48Mb/s, -68dBm at 54Mb/s. |
Protocols
| Specification | Value |
|---|---|
| Media access protocol | CSMA/CA |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power requirements | 48V DC |
Antenna
| Specification | Value |
|---|---|
| Antenna gain level (max) | 2 dBi |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 142 x 108 x 31 mm |
Other features
| Specification | Value |
|---|---|
| Supported data transfer rates | 54, 48, 36, 24, 18, 12, 11, 9, 6, 5.5, 2, 1Mbit/s |
| Compliance industry standards | IEEE 802.11b. IEEE 802.11g, IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Safety | CSA |
| Connectivity LEDs | WLAN |
| Electromagnetic emissions | FCC, RSS |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 65 °C |
| Storage relative humidity (H-H) | 5 - 95% |
