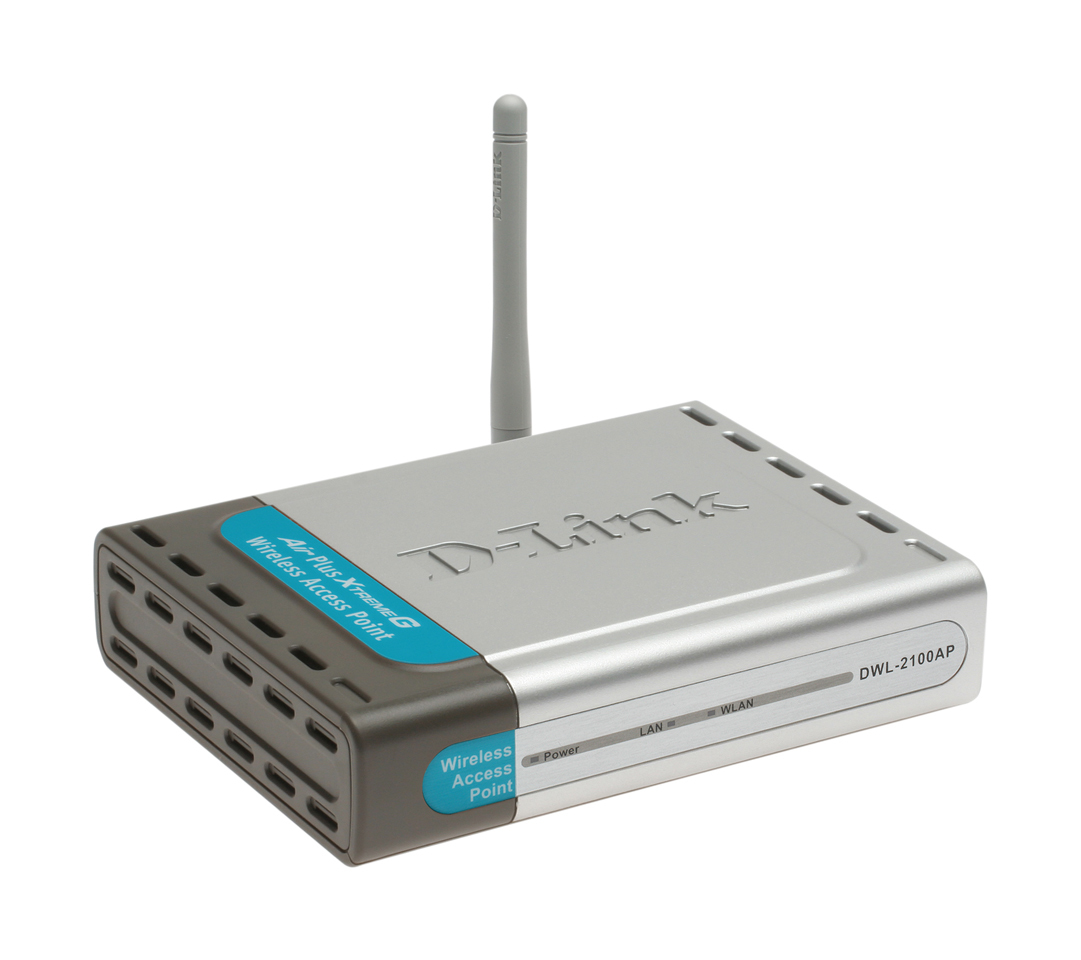

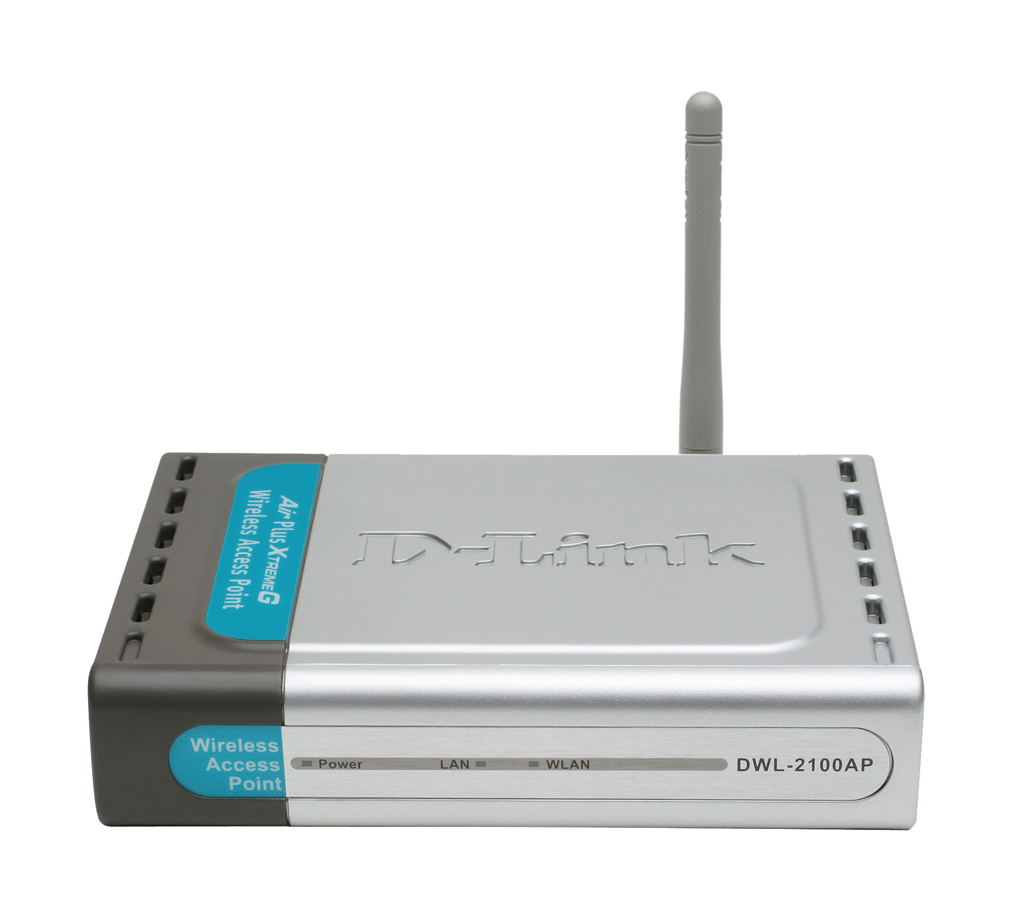

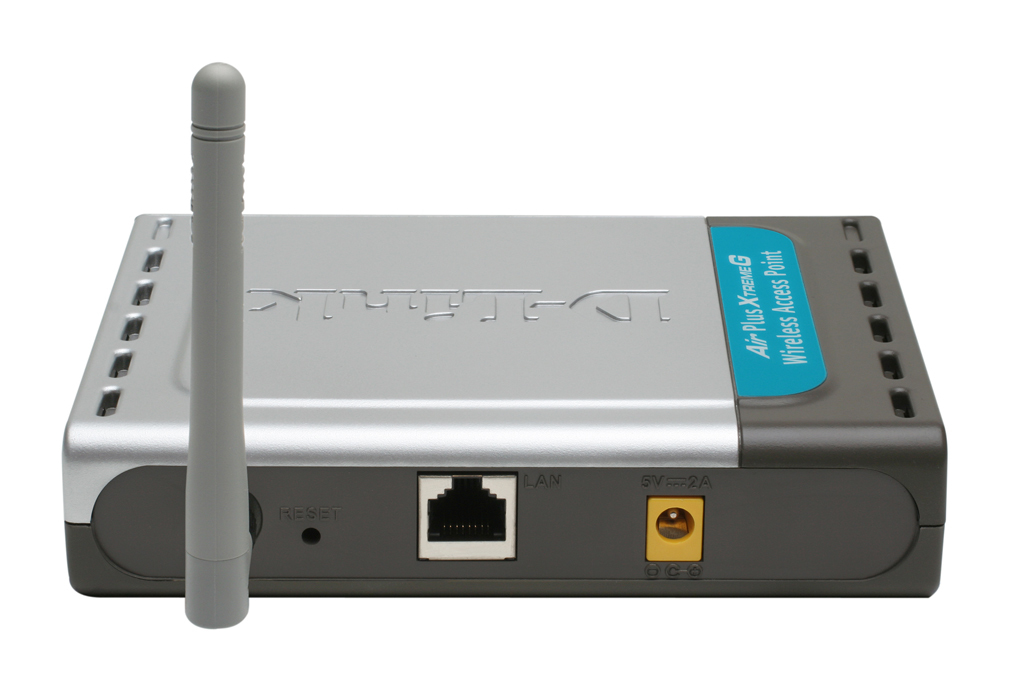

DWL-2100AP 54 Mbit/s
Model DWL-2100APPart no. DWL-2100APXG
29 specifications
- Speed54 Mbit/s
- 2.4 GHzYes
- Power over Ethernet (PoE)No
- LED indicatorsLAN, WAN, WLAN
- Antenna typeInternal & external
- Width109 mm
Overview
- Speed
- 54 Mbit/s
- 2.4 GHz
- Yes
- Power over Ethernet (PoE)
- No
- LED indicators
- LAN, WAN, WLAN
- Antenna type
- Internal & external
- Width
- 109 mm
- Brand
- D-Link
- Category
- Wireless Access Point
- Model
- DWL-2100AP
- Part number
- DWL-2100APXG
- Also known as
- D-Link DWL-2100AP 54 Mbit/s
Specifications
29 specifications in 10 groups
Features
| Specification | Value |
|---|---|
| 2.4 GHz | Yes |
| 5 GHz | No |
| Maximum data transfer rate | 54 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 54 Mbit/s |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Frequency band | 2.483.5 GHz |
| Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.3, IEEE 802.3u |
| Modulation | 16-QAM, 64-QAM, BPSK, CCK, DBPSK, DQPSK, QPSK |
| Maximum indoor range | 100 m |
| Maximum outdoor range | 400 m |
| Transmitting power | 18 dBmW |
| Receiver sensitivity | - 54 Mbps: -66 dBm - 48 Mbps: -71 dBm - 36 Mbps: -76 dBm - 24 Mbps: -80 dBm - 18 Mbps: -83 dBm - 12 Mbps: -85 dBm - 9 Mbps: -86 dBm - 6 Mbps: -87 dBm |
Security
| Specification | Value |
|---|---|
| Security algorithms | 64-bit WEP, 128-bit WEP, 152-bit WEP, 802.1x RADIUS, WPA |
Protocols
| Specification | Value |
|---|---|
| DHCP server | Yes |
| DHCP client | Yes |
| Media access protocol | CSMA/CA |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
| AC input voltage | 5 V |
| Input current | 2 A |
| Power consumption (typical) | 5 W |
Design
| Specification | Value |
|---|---|
| LED indicators | LAN, WAN, WLAN |
Antenna
| Specification | Value |
|---|---|
| Antenna type | Internal & external |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, FCC, ISO-9001, ISO-14001 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 109 mm |
| Depth | 142 mm |
| Height | 31 mm |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -20 - 75 °C |
