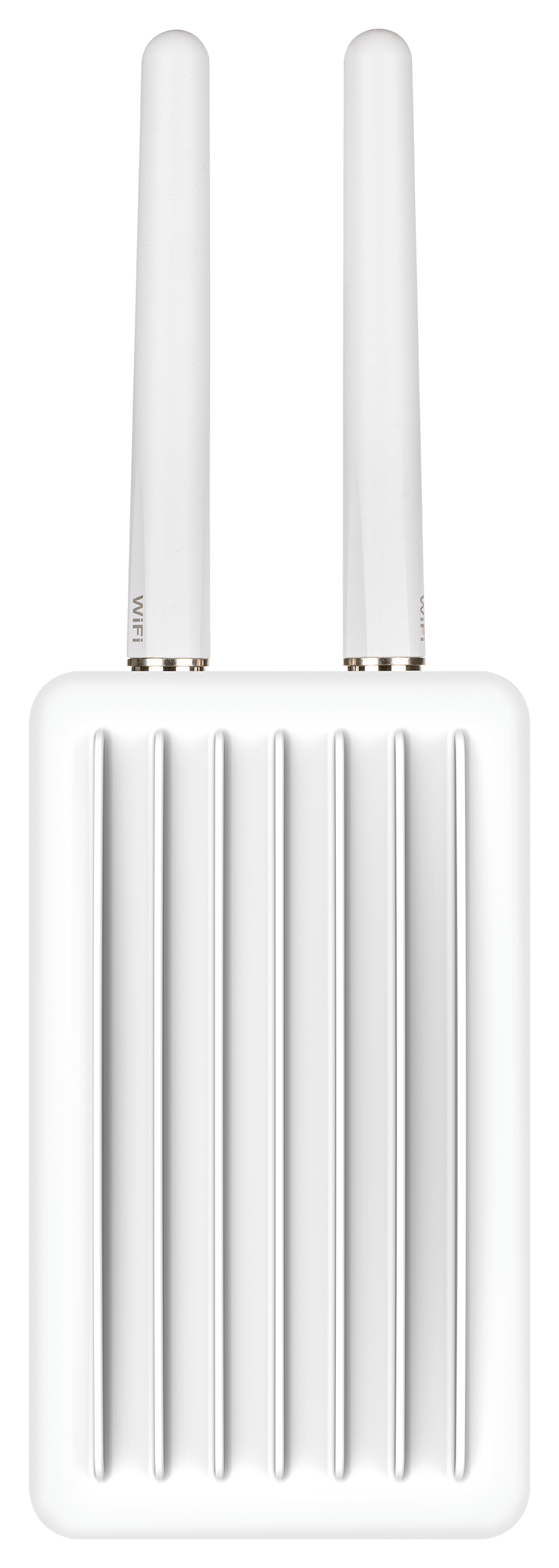

Outdoor Industrial AC1200 Access Point
Model DIS-3650APEAN 790069459771
37 specifications
- Speed867 Mbit/s
- Weight1.07 kg
- ColourWhite
- 2.4 GHzYes
- Ethernet LAN (RJ-45) ports1
- PlacementPole, Wall
Overview
- Speed
- 867 Mbit/s
- Weight
- 1.07 kg
- Colour
- White
- 2.4 GHz
- Yes
- Ethernet LAN (RJ-45) ports
- 1
- Placement
- Pole, Wall
- Brand
- D-Link
- Category
- Wireless Access Point
- Model
- DIS-3650AP
- Part number
- DIS-3650AP
- EAN / UPC
- 790069459771, 5704174940531
- Also known as
- D-Link Outdoor Industrial AC1200 Access Point
Specifications
37 specifications in 12 groups
Features
| Specification | Value |
|---|---|
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| 6 GHz | No |

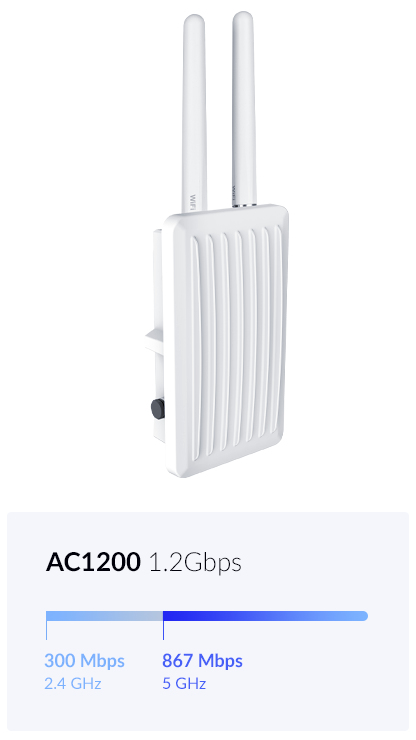

| Maximum data transfer rate | 867 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 300 Mbit/s |
| Maximum data transfer rate (5 GHz) | 866 Mbit/s |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Frequency band | 2.4 - 2.5, 5.15 - 5.35, 5.47 - 5.85 GHz |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u |
| Cabling technology | 10/100/1000Base-T(X) |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Fast roaming | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | 64-bit WEP, 128-bit WEP, SSID, SSL/TLS, WPA, WPA2, WPA3 |
Management features
| Specification | Value |
|---|---|

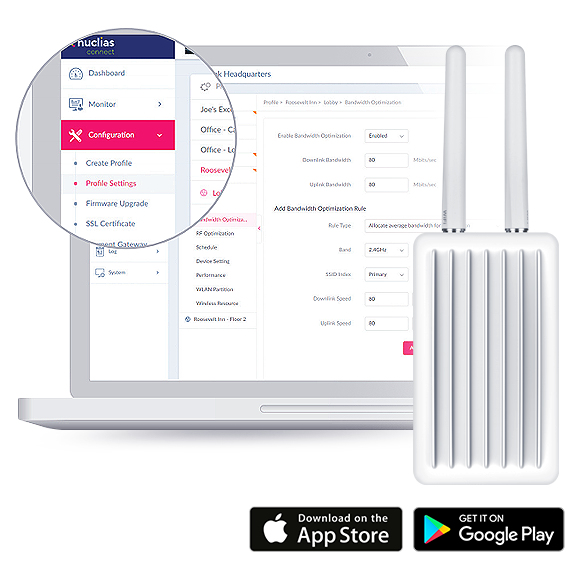

| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|

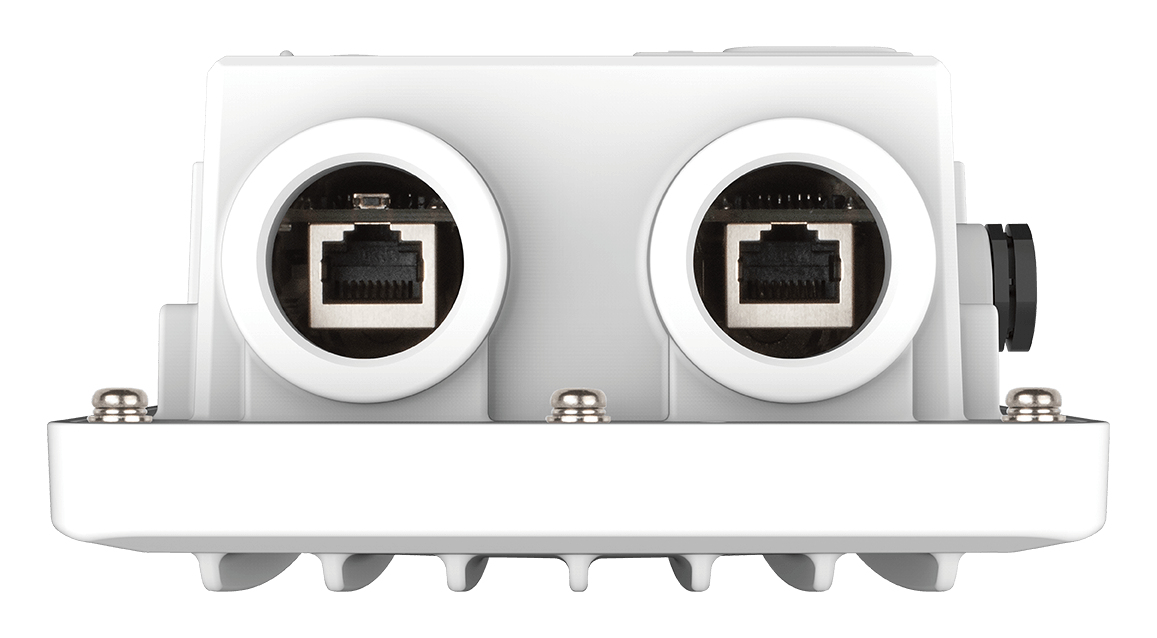

| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 0 |
| WAN connection | Ethernet (RJ-45) |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
Design
| Specification | Value |
|---|---|
| Placement | Pole, Wall |
| Product colour | White |
| International Protection (IP) code | IP67 |
| LED indicators | Yes |
Antenna
| Specification | Value |
|---|---|
| Antenna type | External |
| Antennas quantity | 2 |
| Antenna gain level (max) | 5 dBi |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, Low Voltage Directive (LVD) |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 127.5 mm |
| Depth | 72.5 mm |
| Height | 220.5 mm |
| Weight | 1.07 kg |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -20 - 65 °C |
| Storage temperature (T-T) | -40 - 80 °C |
| Storage relative humidity (H-H) | 5 - 95% |
Sustainability
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
