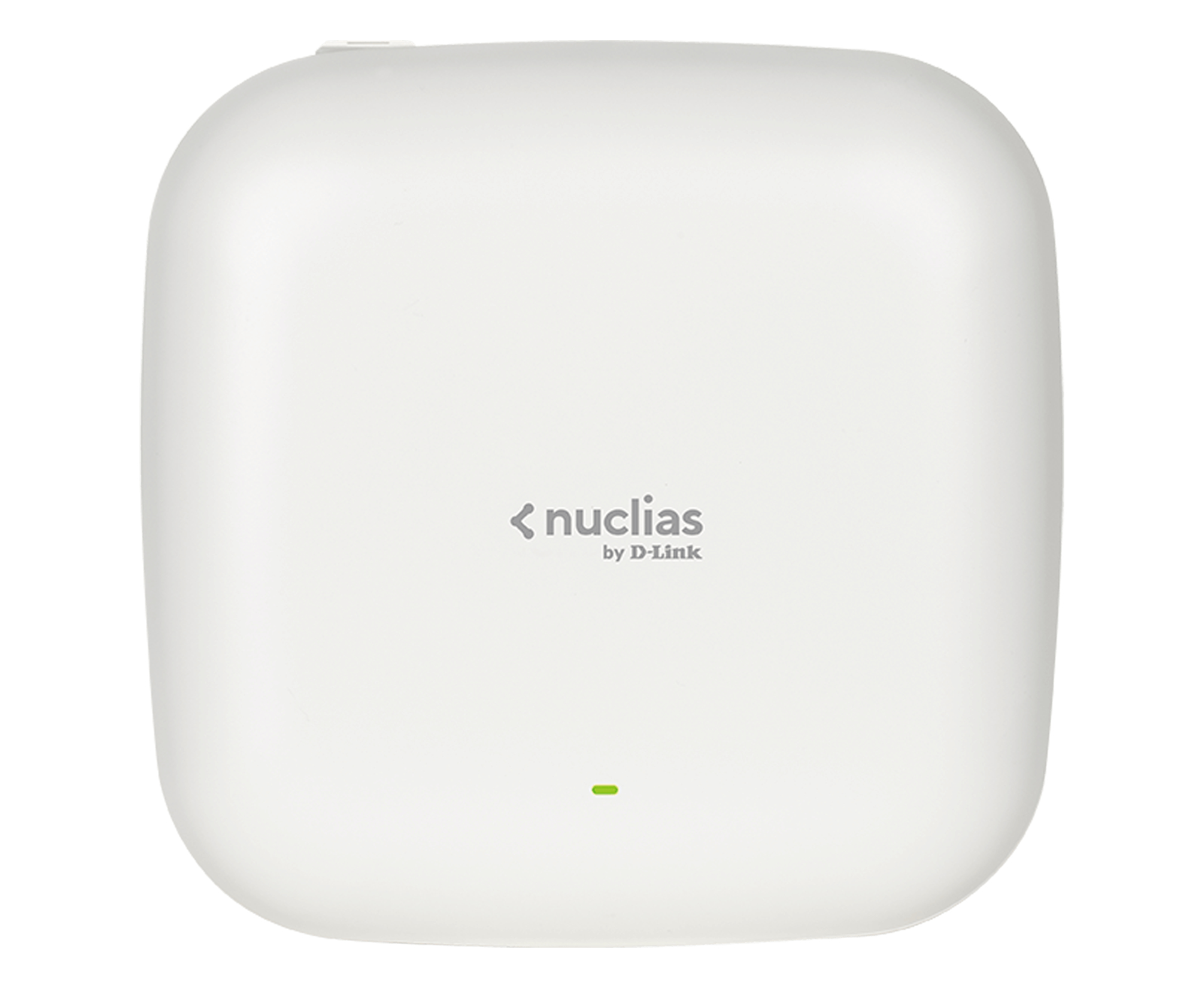

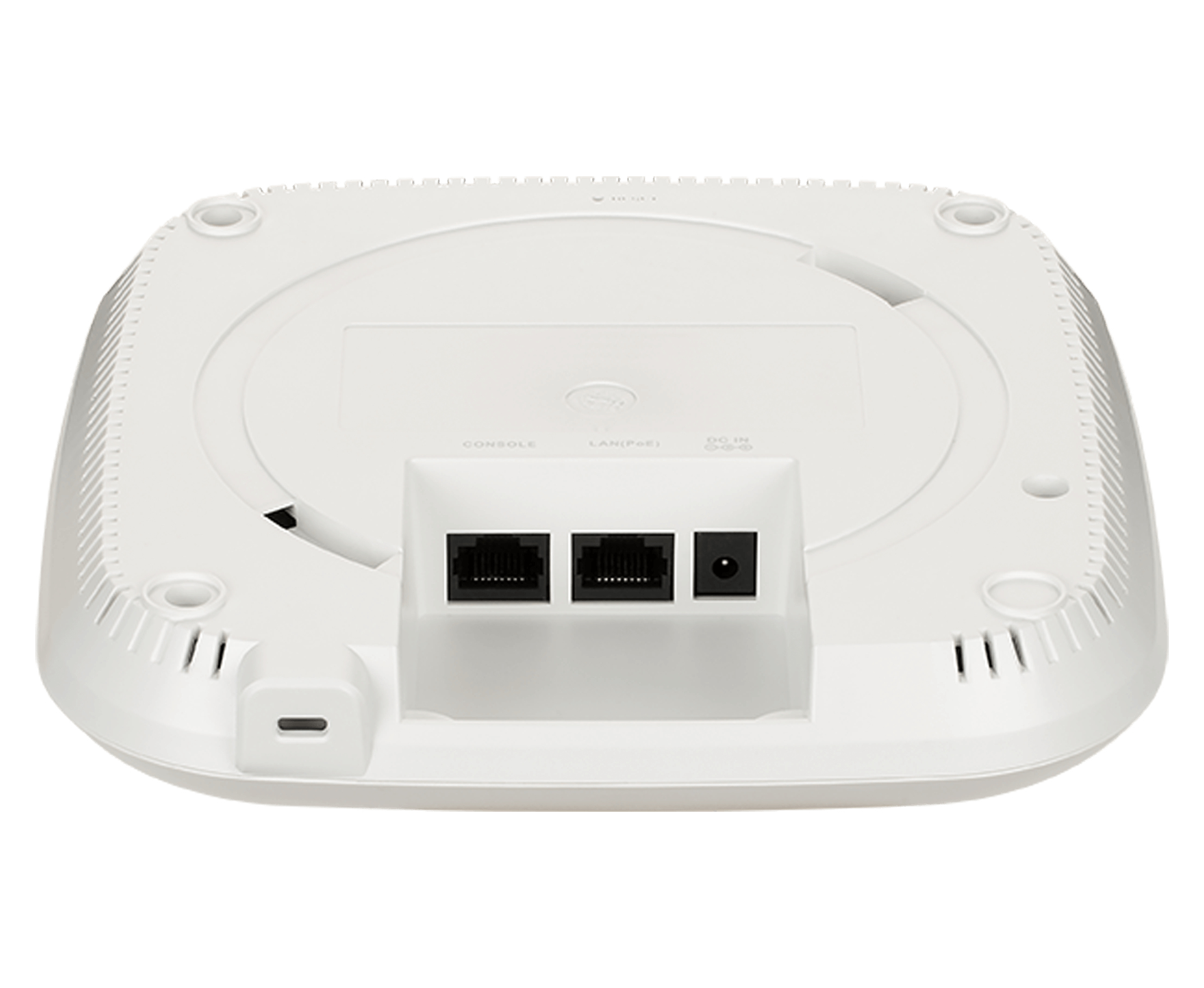

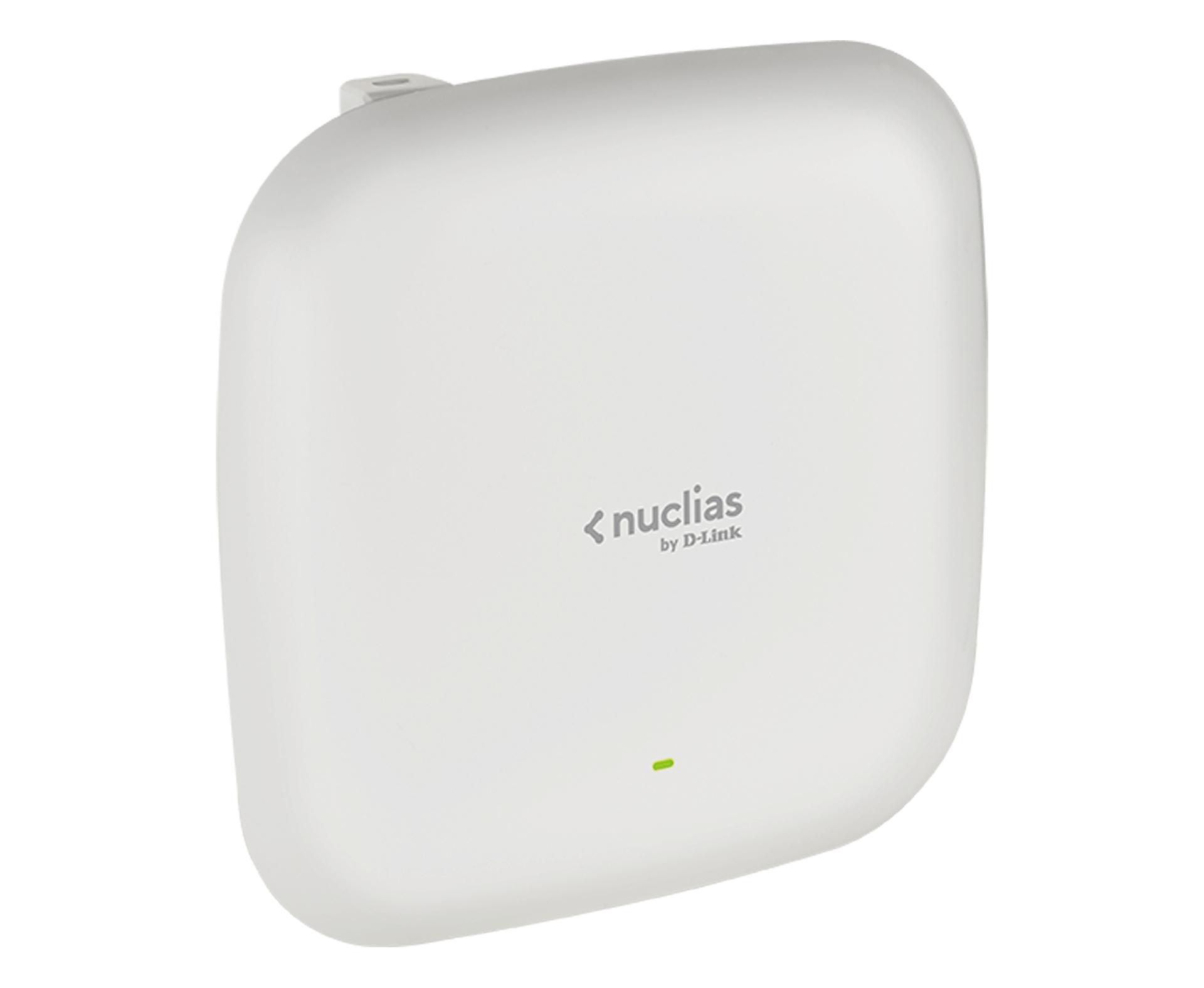

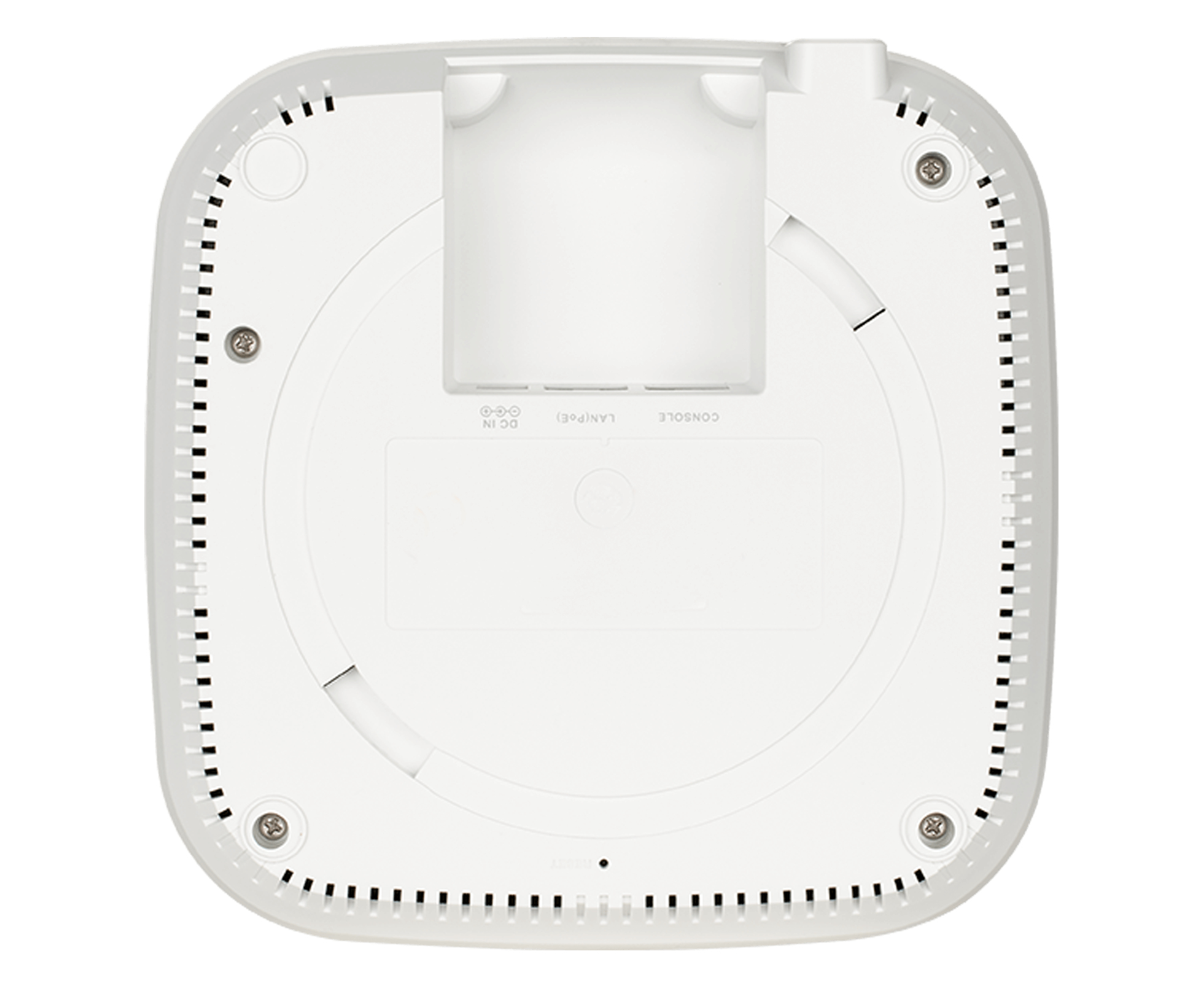

Nuclias AX1800 Wi-Fi Cloud-Managed Access Point
Model DBA-X1230PEAN 790069456930
41 specifications
- Speed1200 Mbit/s
- Weight484 g
- ColourWhite
- 2.4 GHzYes
- Security algorithmsSSID, WPA2, WPA3-Enterprise
- Ethernet LAN (RJ-45) ports1
Overview
- Speed
- 1200 Mbit/s
- Weight
- 484 g
- Colour
- White
- 2.4 GHz
- Yes
- Security algorithms
- SSID, WPA2, WPA3-Enterprise
- Ethernet LAN (RJ-45) ports
- 1
- Brand
- D-Link
- Category
- Wireless Access Point
- Model
- DBA-X1230P
- Part number
- DBA-X1230P
- EAN / UPC
- 790069456930
- Also known as
- D-Link Nuclias AX1800 Wi-Fi Cloud-Managed Access Point
Specifications
41 specifications in 12 groups
Features
| Specification | Value |
|---|---|
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Maximum data transfer rate | 1200 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 575 Mbit/s |
| Maximum data transfer rate (5 GHz) | 1200 Mbit/s |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Flow control support | Yes |
| Transmitting power (CE) | 23 dBm |
| Transmitting power (FCC) | 22 dBm |
Security
| Specification | Value |
|---|---|
| Security algorithms | SSID, WPA2, WPA3-Enterprise |
| MAC address filtering | Yes |
| Number of SSID supported | 16 |
| Remote Authentication Dial-In User Service (RADIUS) | Yes |
Management features
| Specification | Value |
|---|---|
| Firmware upgradeable | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| DC voltage range | 12 V |
| Input current | 1.5 A |
| Power consumption (typical) | 14 W |
| Power supply | 16 W |
Design
| Specification | Value |
|---|---|
| Placement | Ceiling, Wall |
| Product colour | White |
| LED indicators | Power |
Antenna
| Specification | Value |
|---|---|
| Antenna type | Internal |
| Antenna direction type | Omni-directional |
| Antennas quantity | 4 |
| Antenna gain level (max) | 4 dBi |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 170 mm |
| Depth | 42.2 mm |
| Height | 170 mm |
| Weight | 484 g |
Packaging content
| Specification | Value |
|---|---|
| Mounting kit | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 95% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 65 °C |
| Storage relative humidity (H-H) | 5 - 95% |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
