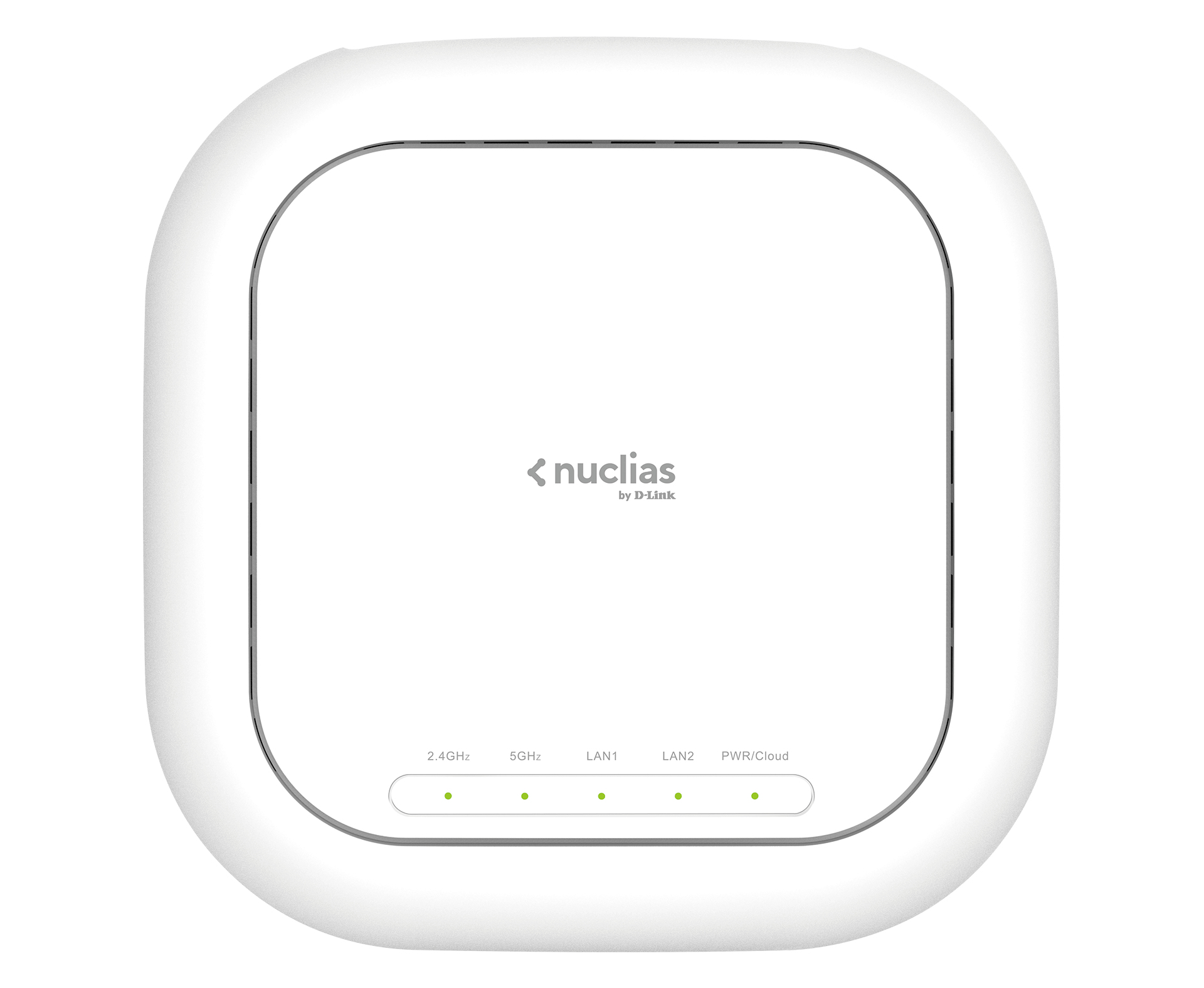

Wireless AC2600 Wave2 Nuclias Access Point
Model DBA-2820PEAN 790069448188
64 specifications
- Speed2600 Mbit/s
- Weight810 g
- ColourWhite
- 2.4 GHzYes
- Ethernet LAN (RJ-45) ports2
- PlacementCeiling, Table, Wall
Overview
- Speed
- 2600 Mbit/s
- Weight
- 810 g
- Colour
- White
- 2.4 GHz
- Yes
- Ethernet LAN (RJ-45) ports
- 2
- Placement
- Ceiling, Table, Wall
- Brand
- D-Link
- Category
- Wireless Access Point
- Model
- DBA-2820P
- Part number
- DBA-2820P
- EAN / UPC
- 790069448188
- Also known as
- D-Link Wireless AC2600 Wave2 Nuclias Access Point
Specifications
64 specifications in 13 groups
Features
| Specification | Value |
|---|---|
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Maximum data transfer rate | 2600 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 800 Mbit/s |
| Maximum data transfer rate (5 GHz) | 1733 Mbit/s |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11h, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Flow control support | Yes |
| Transmitting power | 26 dBmW |
Security
| Specification | Value |
|---|---|
| Security algorithms | WPA-Enterprise, WPA-PSK, WPA2-Enterprise, WPA2-PSK |
| MAC address filtering | Yes |
| Number of SSID supported | 16 |
Protocols
| Specification | Value |
|---|---|
| DHCP server | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 0 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Output voltage | 12 V |
| Power consumption (max) | 21.65 W |
| Power supply | 19.2 W |
Design
| Specification | Value |
|---|---|
| Placement | Ceiling, Table, Wall |
| Product colour | White |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| On/off switch | Yes |
| Reset button | Yes |
| LED indicators | Yes |
Antenna
| Specification | Value |
|---|---|
| Antenna type | Internal |
| Antenna direction type | Omni-directional |
| Antenna gain level (max) | 4 dBi |
Technical details
| Specification | Value |
|---|---|
| Master (outer) cases per pallet (air) | 24 pc(s) |
| Master (outer) cases per pallet (sea) | 30 pc(s) |
| Pallet gross length | 110 cm |
| Pallet gross weight (air) | 206.4 kg |
| Pallet gross weight (sea) | 253.7 kg |
| Pallet gross width | 120 cm |
| Pallet height (air) | 144.7 cm |
| Pallet height (sea) | 177.5 cm |
| Products per pallet (air) | 120 pc(s) |
| Products per pallet (sea) | 150 pc(s) |
| Products per shipping (inner) case | 5 pc(s) |
| Shipping (inner) case gross weight | 7.79 kg |
| Shipping (inner) case height | 32.8 cm |
| Shipping (inner) case length | 41.9 cm |
| Shipping (inner) case net weight | 6.92 kg |
| Shipping (inner) case width | 31.2 cm |
Certificates
| Specification | Value |
|---|---|
| Certification | CE B, FCC B, UL, IC B |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 224.5 mm |
| Depth | 223.8 mm |
| Height | 50 mm |
| Weight | 810 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 294 mm |
| Package depth | 291 mm |
| Package height | 94 mm |
| Package weight | 1.39 kg |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 65 °C |
| Storage relative humidity (H-H) | 5 - 95% |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
