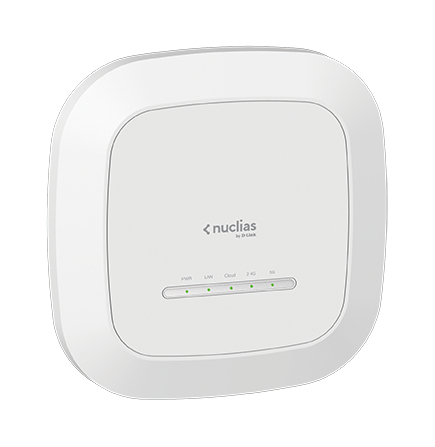

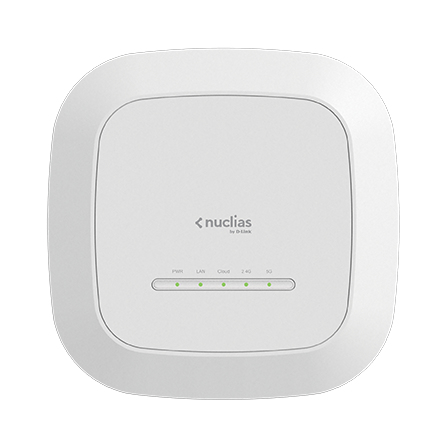

DBA-1510P wireless access point 1750 Mbit/s White Power over Ethernet (PoE)
Model DBA-1510PEAN 790069432705
48 specifications
- Speed1750 Mbit/s
- Weight852 g
- ColourWhite
- 2.4 GHzYes
- Ethernet LAN (RJ-45) ports1
- PlacementCeiling, Table, Wall
Overview
- Speed
- 1750 Mbit/s
- Weight
- 852 g
- Colour
- White
- 2.4 GHz
- Yes
- Ethernet LAN (RJ-45) ports
- 1
- Placement
- Ceiling, Table, Wall
- Brand
- D-Link
- Category
- Wireless Access Point
- Model
- DBA-1510P
- Part number
- DBA-1510P
- EAN / UPC
- 790069432705
- Also known as
- D-Link DBA-1510P wireless access point 1750 Mbit/s White Power over Ethernet (PoE)
Specifications
48 specifications in 13 groups
Features
| Specification | Value |
|---|---|
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Maximum data transfer rate | 1750 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 450 Mbit/s |
| Maximum data transfer rate (5 GHz) | 1300 Mbit/s |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Networking standards | IEEE 802.11i, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| Cabling technology | 10/100/1000Base-T(X) |
| MIMO | Yes |
| Flow control support | Yes |
| Band steering | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | 802.1x RADIUS, WPA, WPA-Enterprise, WPA-PSK, WPA2, WPA2-Enterprise, WPA2-PSK |
| MAC address filtering | Yes |
| IP address filtering | Yes |
| Number of SSID supported | 16 |
| Remote Authentication Dial-In User Service (RADIUS) | Yes |
Protocols
| Specification | Value |
|---|---|
| DHCP server | Yes |
Management features
| Specification | Value |
|---|---|
| Syslog | Yes |
| Firmware upgradeable | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| WAN connection | Ethernet (RJ-45) |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Power supply | 19 W |
Design
| Specification | Value |
|---|---|
| Placement | Ceiling, Table, Wall |
| Product colour | White |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| LED indicators | Yes |
Antenna
| Specification | Value |
|---|---|
| Antenna type | Internal |
| Antenna features | Integrated antenna |
| Antenna gain level (max) | 15 dBi |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, REACH, RoHS |
| Certification | VCCI Class B FCC TELEC WEEE |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 220 mm |
| Depth | 220 mm |
| Height | 35 mm |
| Weight | 852 g |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| AC adapter included | Yes |
| Mounting kit | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -30 - 70 °C |
| Storage relative humidity (H-H) | 5 - 95% |
Sustainability
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
