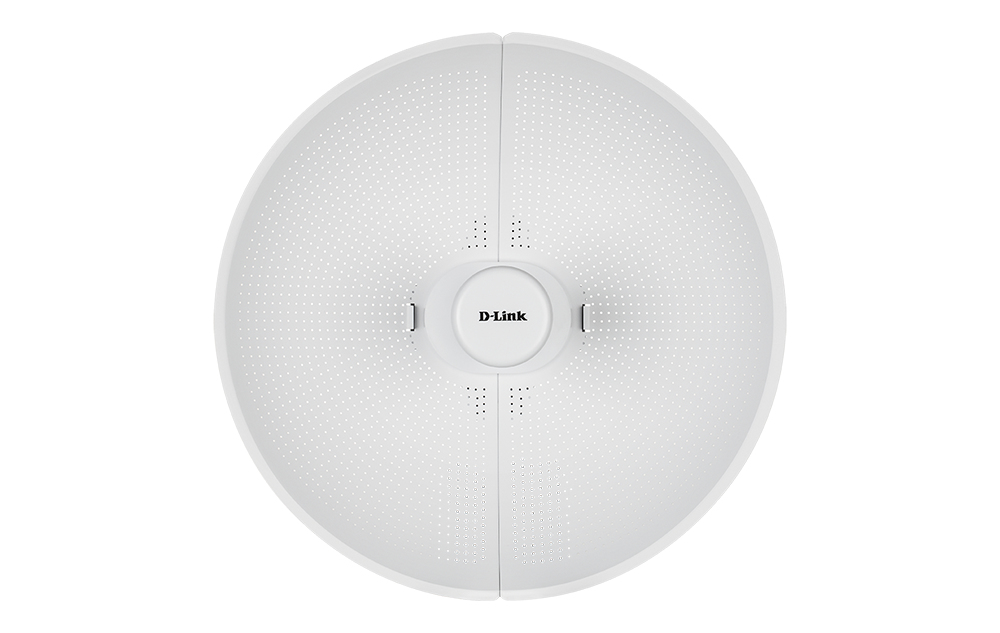

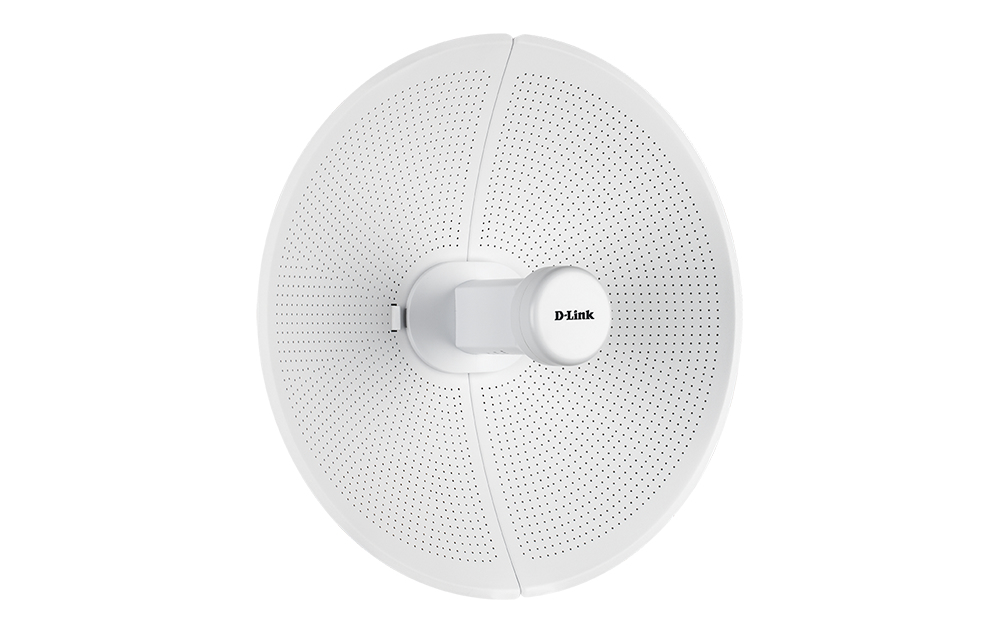

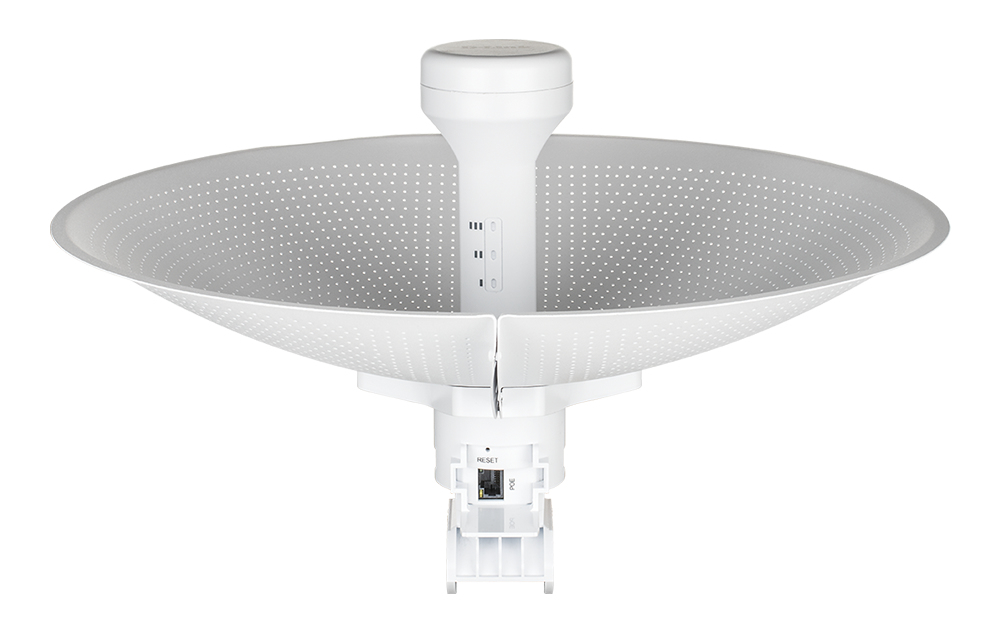

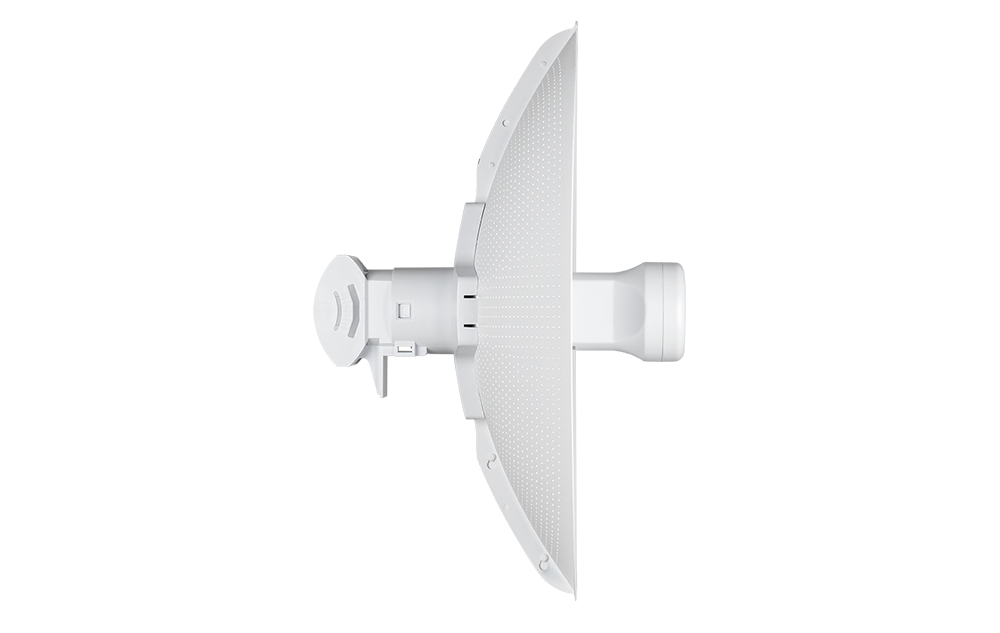

DAP-3712 867 Mbit/s White Power over Ethernet (PoE)
Model DAP-3712Part no. DAP-3712-2PKEAN 790069201479
39 specifications
- Speed867 Mbit/s
- Weight900 g
- ColourWhite
- 2.4 GHzNo
- Security algorithms128-bit AES
- SyslogYes
Overview
- Speed
- 867 Mbit/s
- Weight
- 900 g
- Colour
- White
- 2.4 GHz
- No
- Security algorithms
- 128-bit AES
- Syslog
- Yes
- Brand
- D-Link
- Category
- Wireless Access Point
- Model
- DAP-3712
- Part number
- DAP-3712-2PK
- EAN / UPC
- 790069201479
- Also known as
- D-Link DAP-3712 867 Mbit/s White Power over Ethernet (PoE)
Specifications
39 specifications in 11 groups
Features
| Specification | Value |
|---|---|
| 2.4 GHz | No |
| 5 GHz | Yes |
| 6 GHz | No |
| Maximum data transfer rate | 867 Mbit/s |
| Maximum data transfer rate (5 GHz) | 867 Mbit/s |
| Ethernet LAN data rates | 100,1000 Mbit/s |
| Frequency band | 5.745 - 5.825 GHz |
| Channels quantity | 2 channels |
| Fit AP mode features | Wireless distribution system (WDS) |
| VLAN support | Yes |
| Maximum outdoor range | 20000 m |
| Transmitting power (CE) | 27 dBm |
Security
| Specification | Value |
|---|---|
| Security algorithms | 128-bit AES |
| MAC address filtering | Yes |
| IP address filtering | Yes |
| Service Set Identifier (SSID) features | SSID broadcast |
| DHCP snooping | Yes |
Management features
| Specification | Value |
|---|---|
| Syslog | Yes |
| Firmware upgradeable | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| AC input voltage | 48 V |
| Power consumption (max) | 15 W |
Design
| Specification | Value |
|---|---|
| Placement | Pole |
| Product colour | White |
| International Protection (IP) code | IP66 |
| Reset button | Yes |
| LED indicators | Signal strength |
Antenna
| Specification | Value |
|---|---|
| Antenna gain level (max) | 23 dBi |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, FCC |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 372 mm |
| Depth | 241 mm |
| Height | 372 mm |
| Weight | 900 g |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 2 pc(s) |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 0 - 90% |
| Operating temperature (T-T) | -40 - 65 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Storage relative humidity (H-H) | 0 - 90% |
