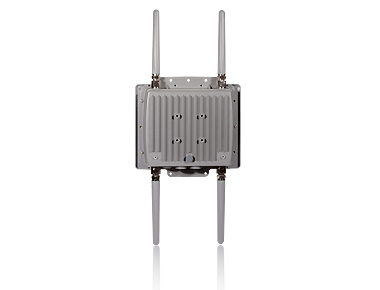

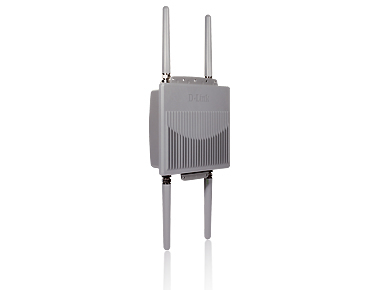

D-Link DAP-3690 wireless access point 300 Mbit/s Power over Ethernet (PoE)

D-Link DAP-3690 wireless access point 300 Mbit/s Power over Ethernet (PoE)

Model DAP-3690EAN 7900693547932

27 specifications
  • Speed300 Mbit/s
  • Weight2.53 kg
  • 2.4 GHzYes
  • Supported network protocolsSSH, HTTP, HTTPS
  • Ethernet LAN (RJ-45) ports2
  • LED indicatorsLAN, Power
See all specifications

Overview

Speed
300 Mbit/s
Weight
2.53 kg
2.4 GHz
Yes
Supported network protocols
SSH, HTTP, HTTPS
Ethernet LAN (RJ-45) ports
2
LED indicators
LAN, Power
Brand
D-Link
Model
DAP-3690
Part number
DAP-3690
EAN / UPC
7900693547932, 115971259842, 132017787862, 151903388624 +7 more
Also known as
D-Link DAP-3690 wireless access point 300 Mbit/s Power over Ethernet (PoE)

Specifications

27 specifications in 11 groups

Features

2.4 GHzYes
5 GHzYes
Maximum data transfer rate300 Mbit/s
Ethernet LAN data rates10,100,1000 Mbit/s
Frequency band2.4 - 5 GHz
Networking standardsIEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u
VLAN supportYes
Quality of Service (QoS) supportYes

Security

Security algorithms128-bit WEP, 64-bit WEP, SSID, WPA, 802.1x RADIUS
MAC address filteringYes

Protocols

Supported network protocolsSSH, HTTP, HTTPS
Management protocolsSNMP

Ports & interfaces

Ethernet LAN (RJ-45) ports2

Power

Power over Ethernet (PoE)Yes
Power consumption (typical)24 W
Power requirements48V DC

Design

LED indicatorsLAN, Power

Antenna

Antenna gain level (max)7 dBi

Certificates

CertificationFCC, CE, IC, C-Tick, NCC, UL, Wi-Fi, IP67

Weight & dimensions

Dimensions (WxDxH)250 x 70 x 220 mm
Weight2.53 kg

Other features

Transmit power range20 - 23 dBmW
Wireless technology802.11a/b/g/n

Operational conditions

Operating relative humidity (H-H)10 - 90%
Operating temperature (T-T)-40 - 60 °C
Storage temperature (T-T)-40 - 65 °C
Storage relative humidity (H-H)5 - 95%
