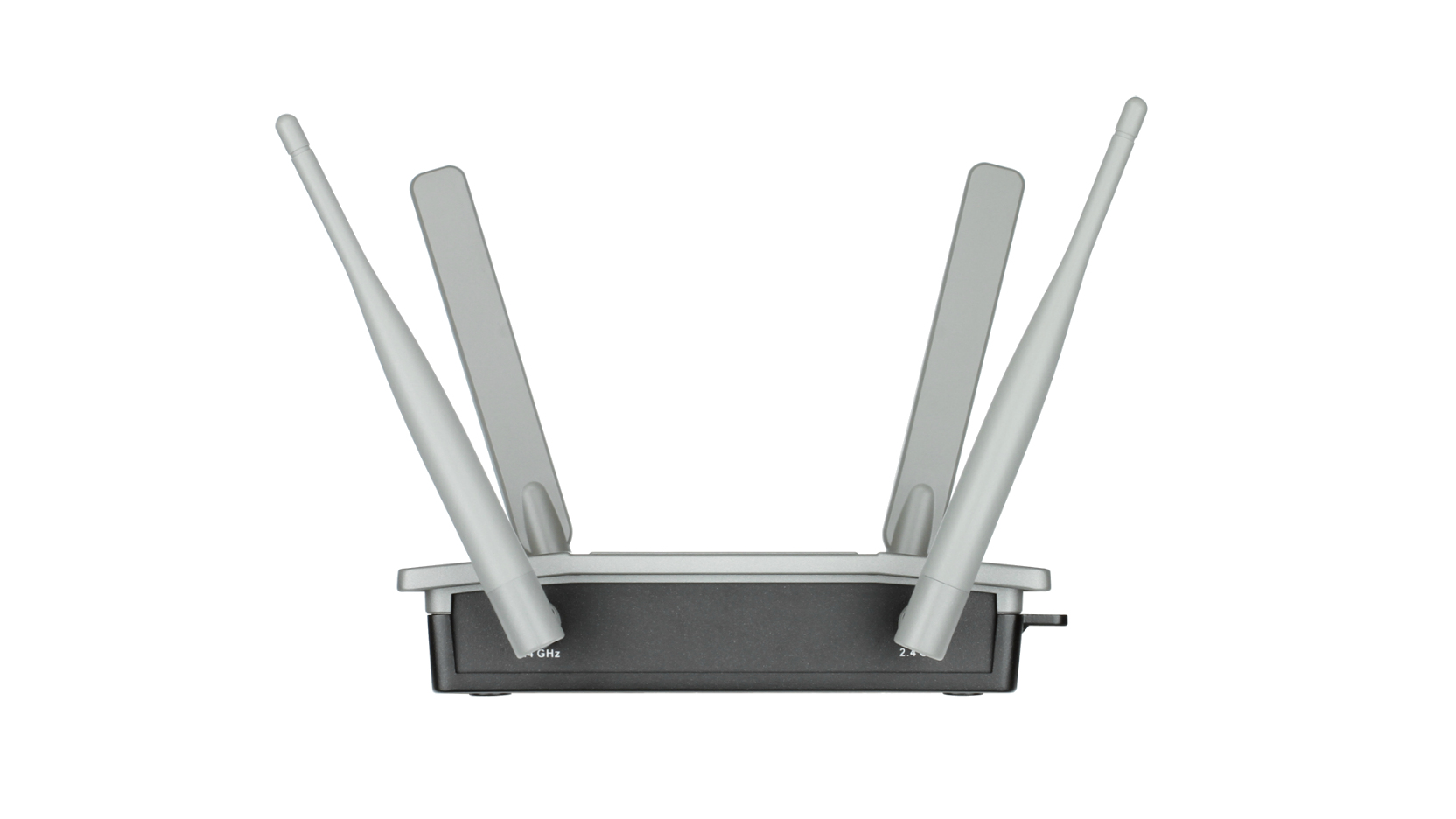

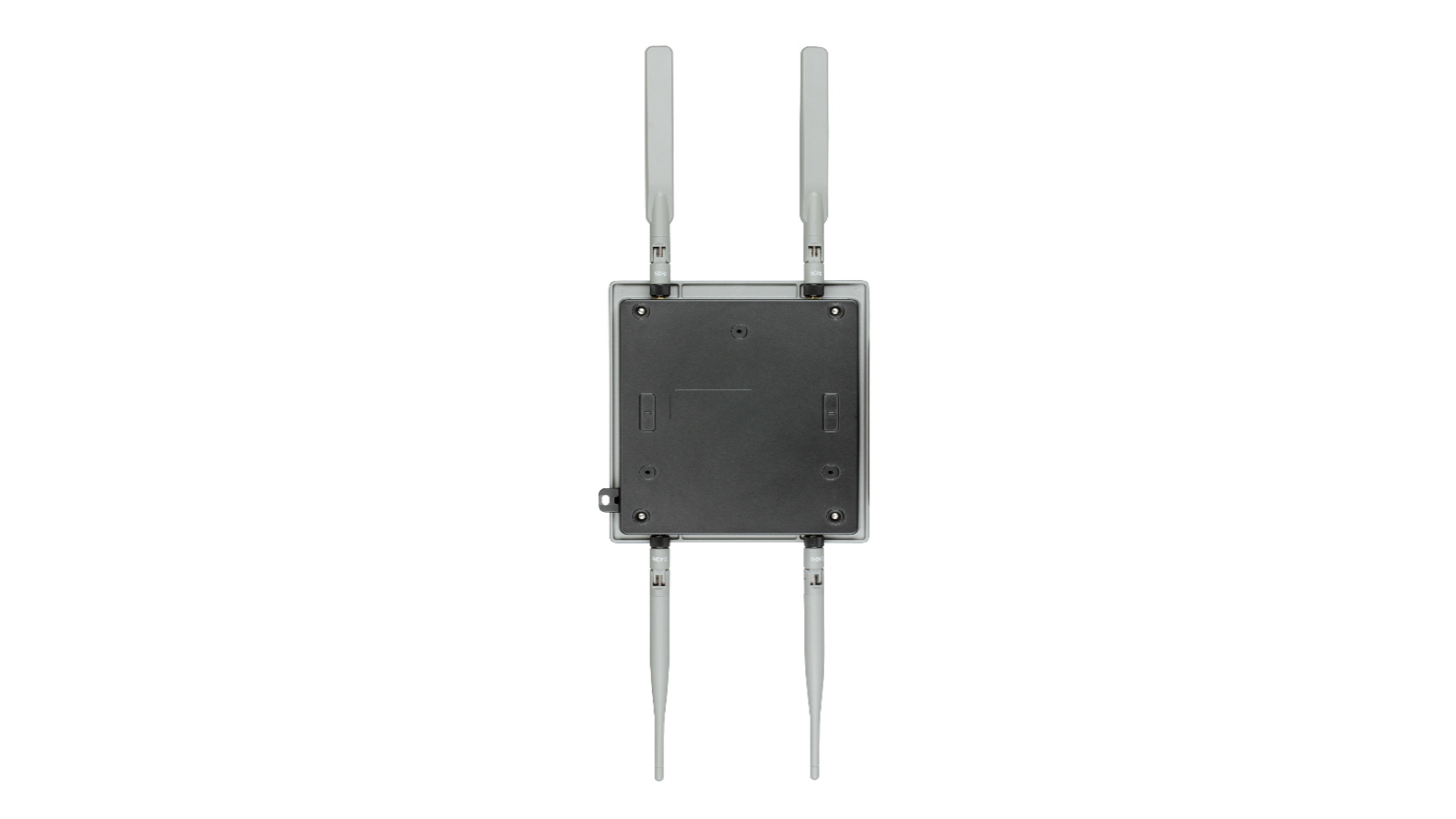

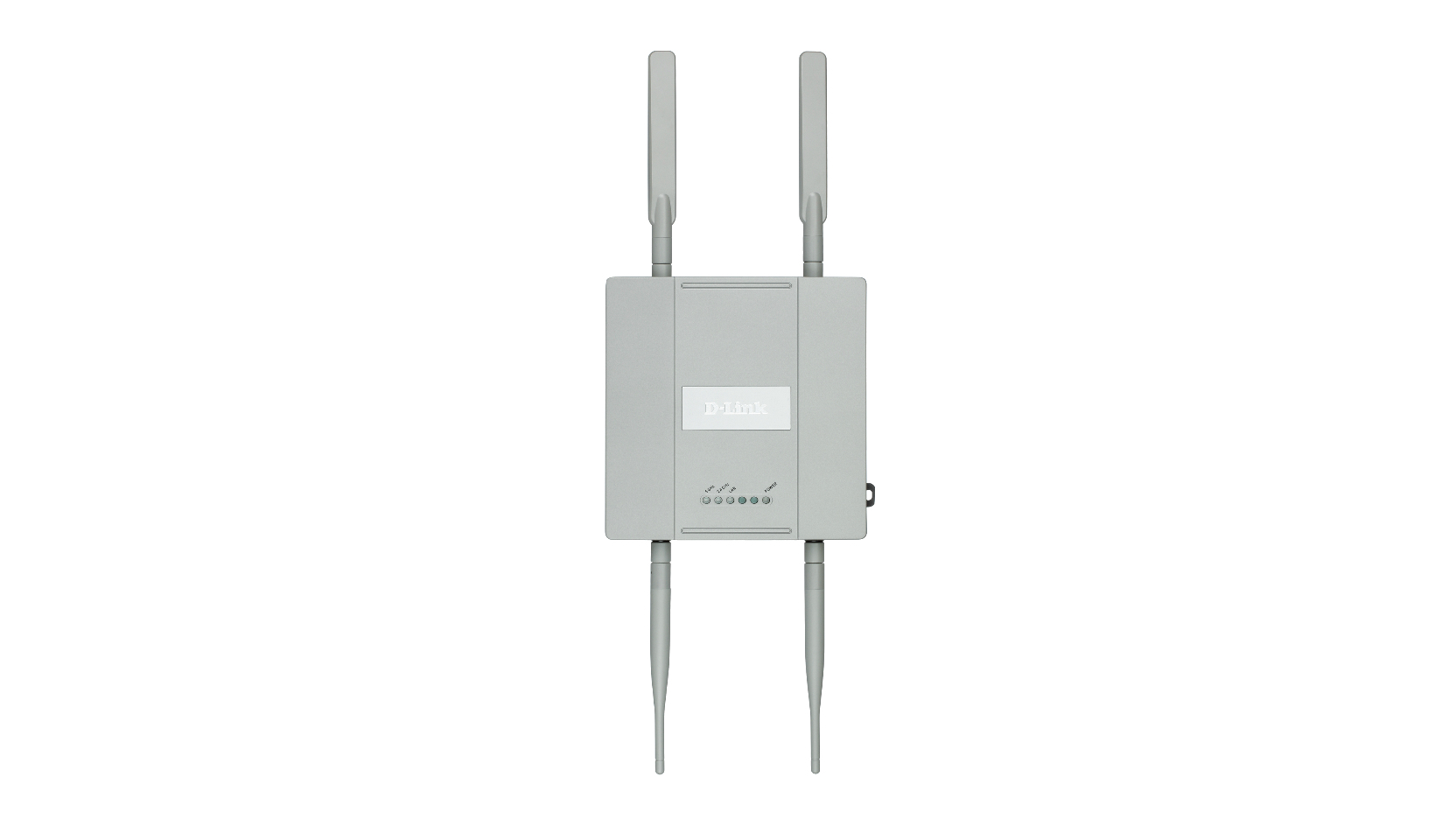

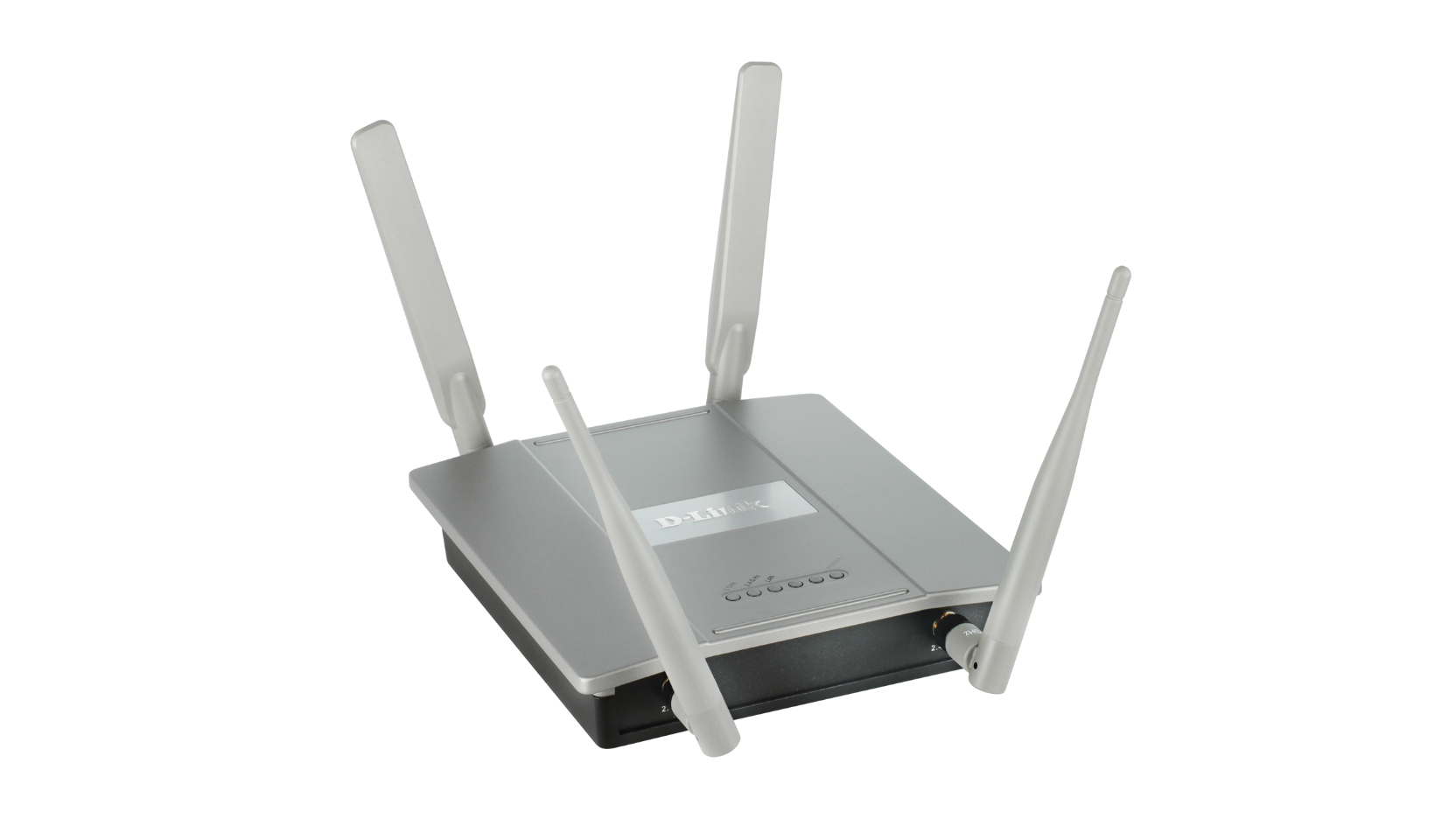

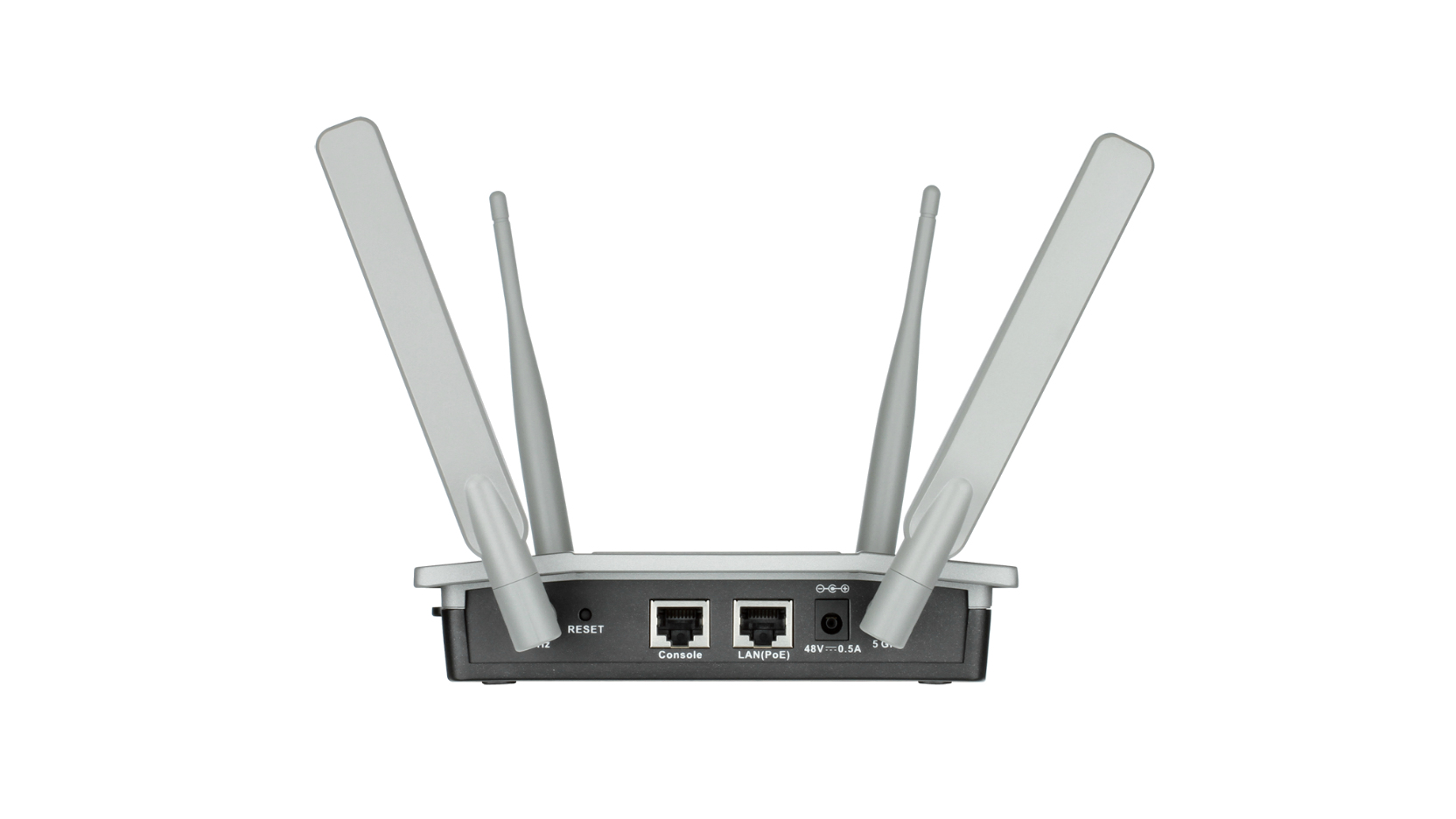

DAP 2690
Model DAP 2690Part no. DAP-2690EAN 5054484155898
18 specifications
- Speed300 Mbit/s
- ConnectivityWi-Fi
- Weight990 g
- Universal Plug and Play (UPnP)Yes
- Dimensions (WxDxH)190.5 x 36.5 x 198.8 mm
- Operating relative humidity (H-H)10 - 90%
Overview
- Speed
- 300 Mbit/s
- Connectivity
- Wi-Fi
- Weight
- 990 g
- Universal Plug and Play (UPnP)
- Yes
- Dimensions (WxDxH)
- 190.5 x 36.5 x 198.8 mm
- Operating relative humidity (H-H)
- 10 - 90%
- Brand
- D-Link
- Category
- Wireless Access Point
- Model
- DAP 2690
- Part number
- DAP-2690
- EAN / UPC
- 5054484155898, 168141651328, 172302831429, 183383278102 +12 more
- Also known as
- D-Link DAP 2690 300 Mbit/s Power over Ethernet (PoE)
Specifications
18 specifications in 10 groups
Features
| Specification | Value |
|---|---|
| Maximum data transfer rate | 300 Mbit/s |
Security
| Specification | Value |
|---|---|
| Security algorithms | 64-bit WEP, 128-bit WEP, 802.1x RADIUS, SSID, WEP, WPA, WPA-PSK, WPA2, WPA2-PSK |
Protocols
| Specification | Value |
|---|---|
| Universal Plug and Play (UPnP) | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Interface | Wi-Fi |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power requirements | DC 48 V |
Design
| Specification | Value |
|---|---|
| LED indicators | Yes |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC, CE, IC, CSA |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 190.5 x 36.5 x 198.8 mm |
| Weight | 990 g |
Other features
| Specification | Value |
|---|---|
| Supported data transfer rates | 100/10 |
| Wireless technology | IEEE 802.11n IEEE 802.11a IEEE 802.11g IEEE 802.3ab IEEE 802.3af IEEE 802.3u IEEE 802.3 |
| Connectivity LEDs | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 65 °C |
| Storage relative humidity (H-H) | 5 - 95% |
