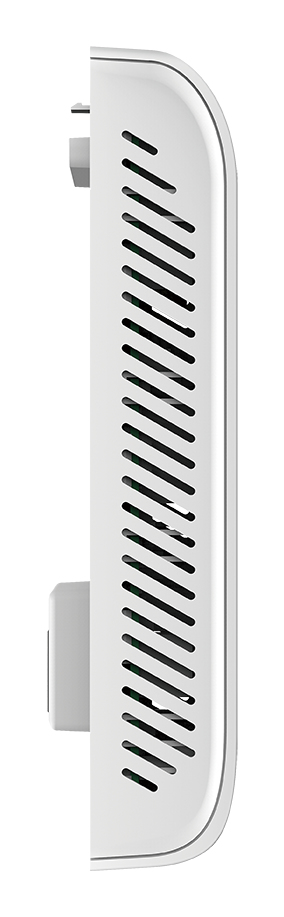

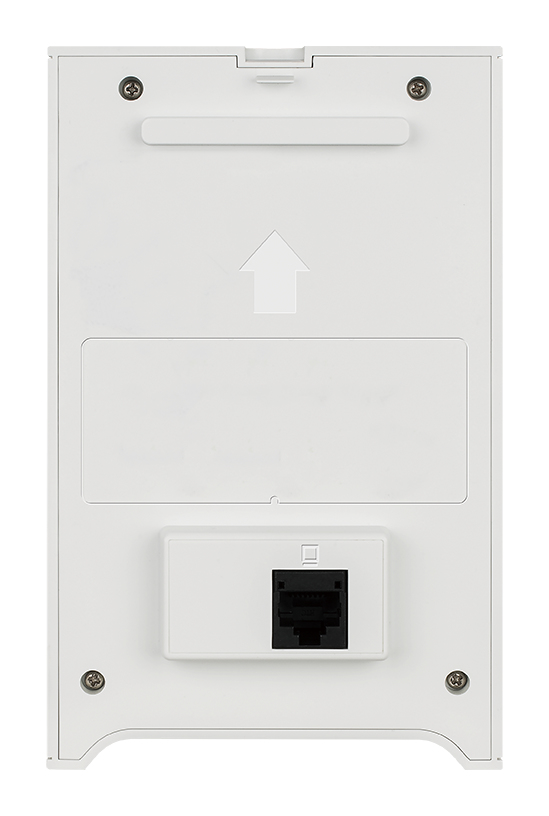

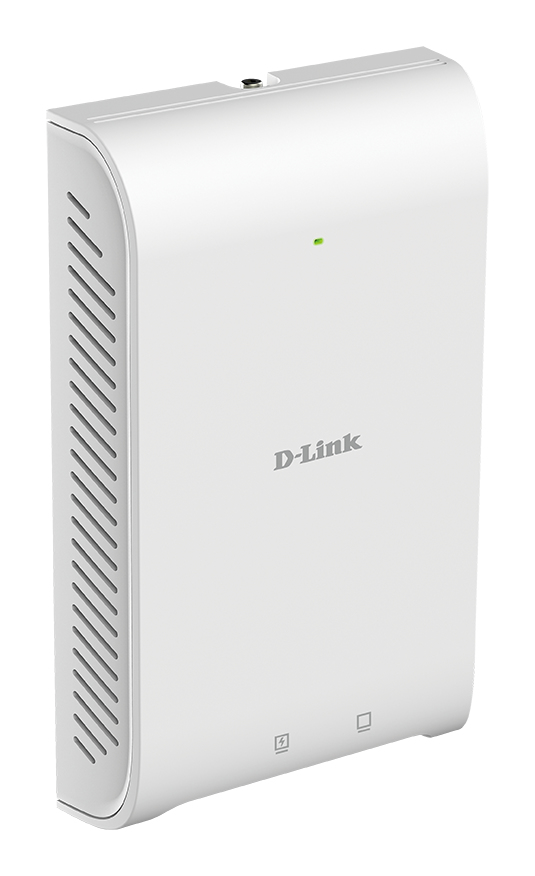

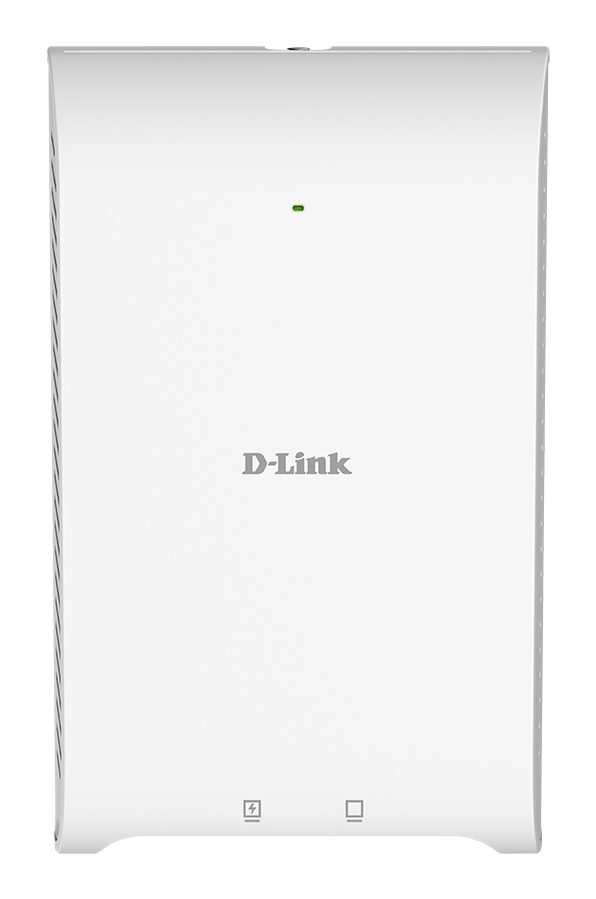

DAP-2622 - Nuclias Connect, Wireless AC1200 Wave 2, In-Wall PoE Access Point
Model DAP-2622EAN 790069457814
37 specifications
- Speed1200 Mbit/s
- Weight212 g
- ColourWhite
- 2.4 GHzYes
- Ethernet LAN (RJ-45) ports3
- PlacementWall
Overview
- Speed
- 1200 Mbit/s
- Weight
- 212 g
- Colour
- White
- 2.4 GHz
- Yes
- Ethernet LAN (RJ-45) ports
- 3
- Placement
- Wall
- Brand
- D-Link
- Category
- Wireless Access Point
- Model
- DAP-2622
- Part number
- DAP-2622
- EAN / UPC
- 790069457814
- Also known as
- D-Link DAP-2622 - Nuclias Connect, Wireless AC1200 Wave 2, In-Wall PoE Access Point
Specifications
37 specifications in 10 groups
Features
| Specification | Value |
|---|---|
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| 6 GHz | No |
| Maximum data transfer rate | 1200 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 300 Mbit/s |
| Maximum data transfer rate (5 GHz) | 867 Mbit/s |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Frequency band | 2.4 - 2.4835, 5.15 - 5.85 GHz |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u |
| Cabling technology | 10/100/1000Base-T(X) |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Wireless isolation | Yes |
| Quality of Service (QoS) support | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | 64-bit WEP, 128-bit WEP, SSH, SSID, SSL/TLS, WPA, WPA2 |
| MAC address filtering | Yes |
| Service Set Identifier (SSID) features | SSID broadcast |
| Remote Authentication Dial-In User Service (RADIUS) | Yes |

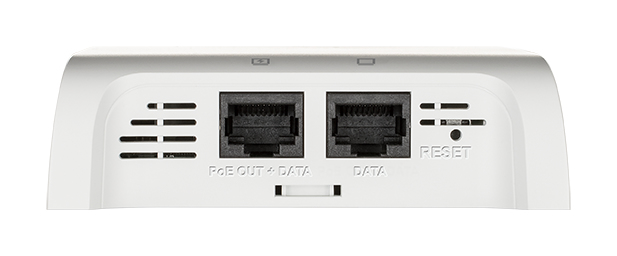

Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 3 |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power consumption (typical) | 9.5 W |
| Power consumption (max) | 21.5 W |
Design
| Specification | Value |
|---|---|
| Placement | Wall |
| Product colour | White |
| LED indicators | Power, Status |
Antenna
| Specification | Value |
|---|---|
| Antenna type | Internal |
| Antennas quantity | 2 |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, FCC |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 95 mm |
| Depth | 27.4 mm |
| Height | 154.1 mm |
| Weight | 212 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 65 °C |
| Storage relative humidity (H-H) | 5 - 95% |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
