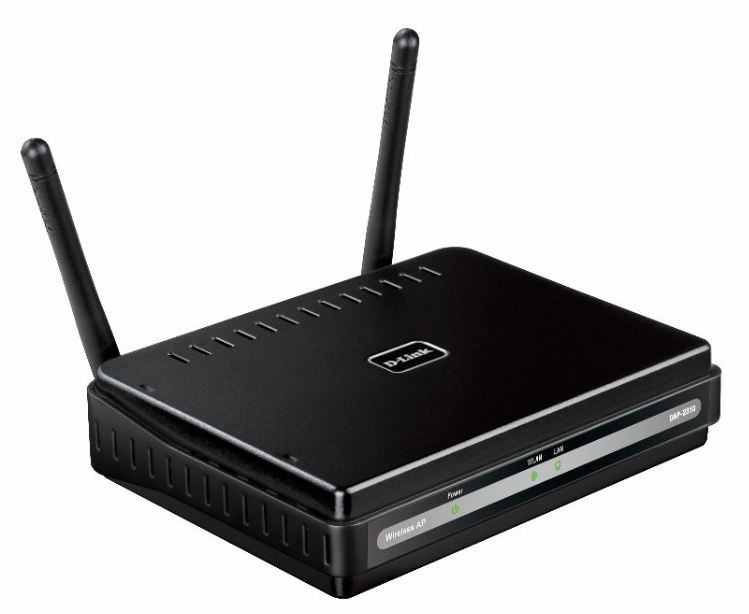

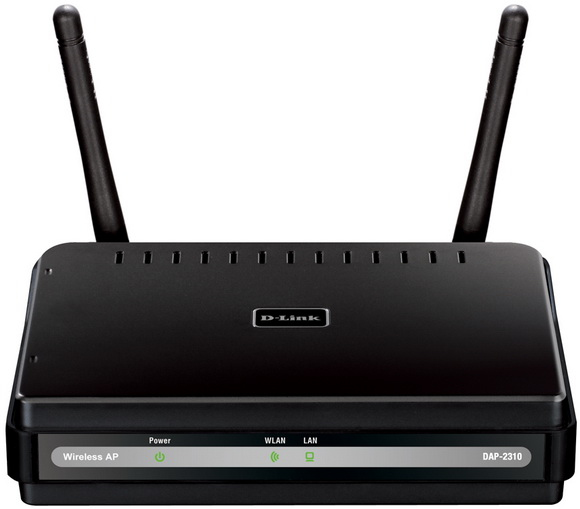

D-Link DAP-2310 300 Mbit/s Power over Ethernet (PoE)

D-Link DAP-2310 300 Mbit/s Power over Ethernet (PoE)

Model DAP-2310Part no. DAP-2310/LNAWPEAN 7900693664066

56 specifications
  • Speed300 Mbit/s
  • ConnectivityEthernet
  • Weight238 g
  • 2.4 GHzYes
  • Management protocolsSNMPv1,v2c, v3
  • LED indicatorsLAN, Power
See all specifications

Overview

Speed
300 Mbit/s
Connectivity
Ethernet
Weight
238 g
2.4 GHz
Yes
Management protocols
SNMPv1,v2c, v3
LED indicators
LAN, Power
Brand
D-Link
Model
DAP-2310
Part numbers
DAP-2310/LNAWP, DAP-2310/E, DAP-2310/B
EAN / UPC
7900693664066, 790069366413, 5712505080412, 790069366406 +3 more
Also known as
D-Link DAP-2310 300 Mbit/s Power over Ethernet (PoE)

Specifications

56 specifications in 15 groups

Features

2.4 GHzYes
Maximum data transfer rate300 Mbit/s
Ethernet LAN data rates10,100,1000 Mbit/s
Frequency band2.4 - 2.485 GHz
Networking standardsIEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Cabling technology10/100/1000Base-T(X)
VLAN supportYes
Quality of Service (QoS) supportYes

Security

Security algorithms128-bit WEP, 64-bit WEP, 802.1x RADIUS, HTTPS, SSH, SSID, WDS, WPA, WPA2
MAC address filteringYes

Protocols

Management protocolsSNMPv1,v2c, v3

Management features

Web-based managementYes

Ports & interfaces

InterfaceEthernet
Ethernet LAN (RJ-45) ports1
DC-in jackYes

Power

Power over Ethernet (PoE)Yes
Power consumption (typical)8 W
Output power description5V DC, 2A

Design

LED indicatorsLAN, Power
InternalNo

Antenna

Antenna featuresDetachable antenna
Antennas quantity2
Antenna gain level (max)2 dBi

Technical details

Master (outer) cases per pallet (air)72 pc(s)
Master (outer) cases per pallet (sea)72 pc(s)
Pallet gross length110 cm
Pallet gross weight (air)484.3 kg
Pallet gross weight (sea)484.3 kg
Pallet gross width120 cm
Pallet height (air)2.04 m
Pallet height (sea)2.04 m
Products per pallet (air)720 pc(s)
Products per pallet (sea)720 pc(s)
Products per shipping (inner) case10 pc(s)
Shipping (inner) case gross weight6.47 kg
Shipping (inner) case height31.7 cm
Shipping (inner) case length40 cm
Shipping (inner) case net weight3.6 kg
Shipping (inner) case width24.5 cm

Certificates

CertificationFCC, CE, WiFi

Weight & dimensions

Dimensions (WxDxH)148 x 111 x 28 mm
Weight238 g

Packaging data

Package width188 mm
Package depth230 mm
Package height55 mm
Package weight578 g

Other features

Networking featuresGigabit Ethernet
Operating temperature (T-T)32 - 104 °F
Power LEDYes
Transmit power range17 - 25 dBmW
Wireless technology802.11 b/g

Operational conditions

Operating relative humidity (H-H)10 - 90%
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 65 °C
Storage relative humidity (H-H)5 - 95%

Logistics data

Harmonized System (HS) code85176990
