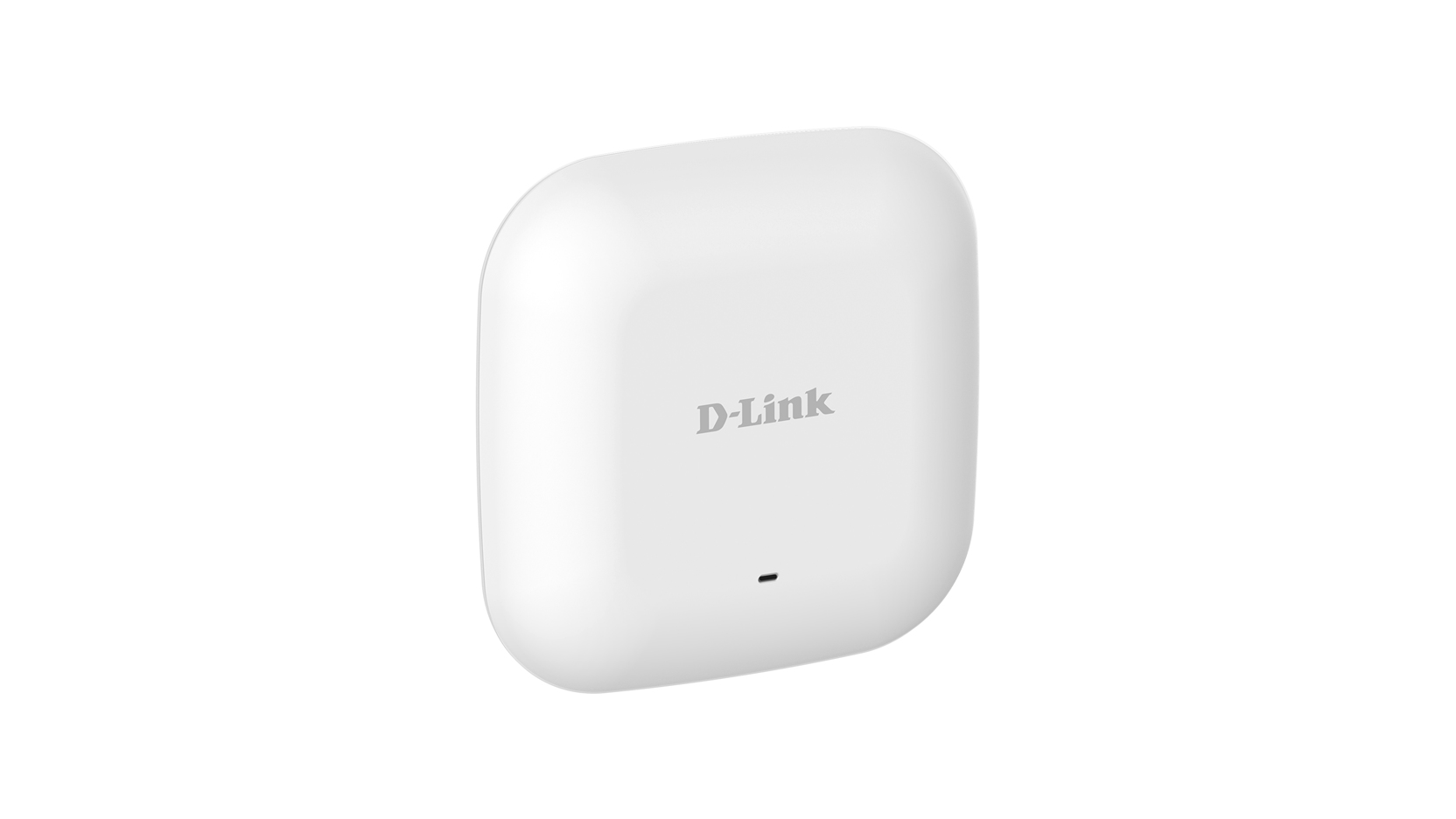

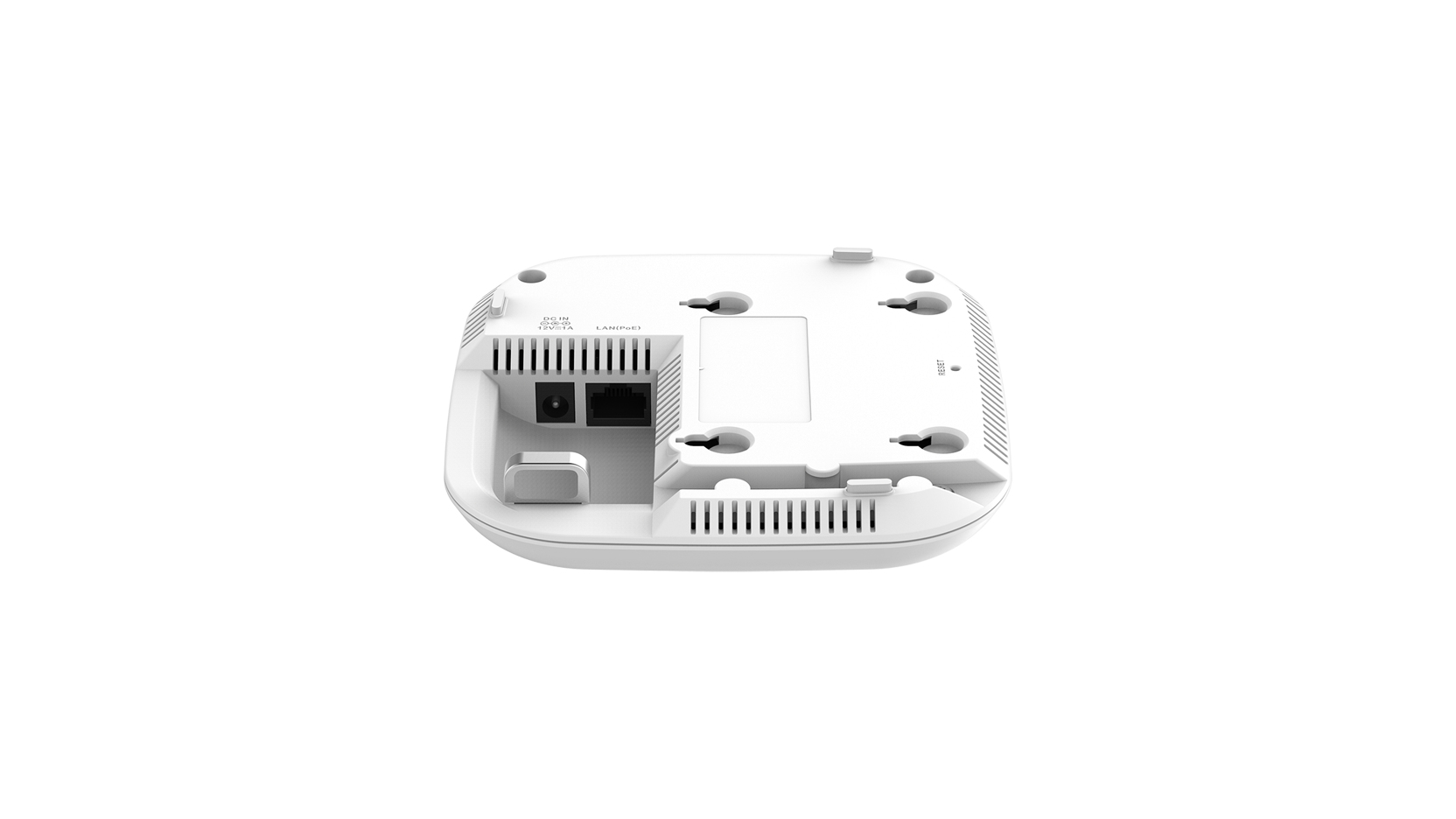

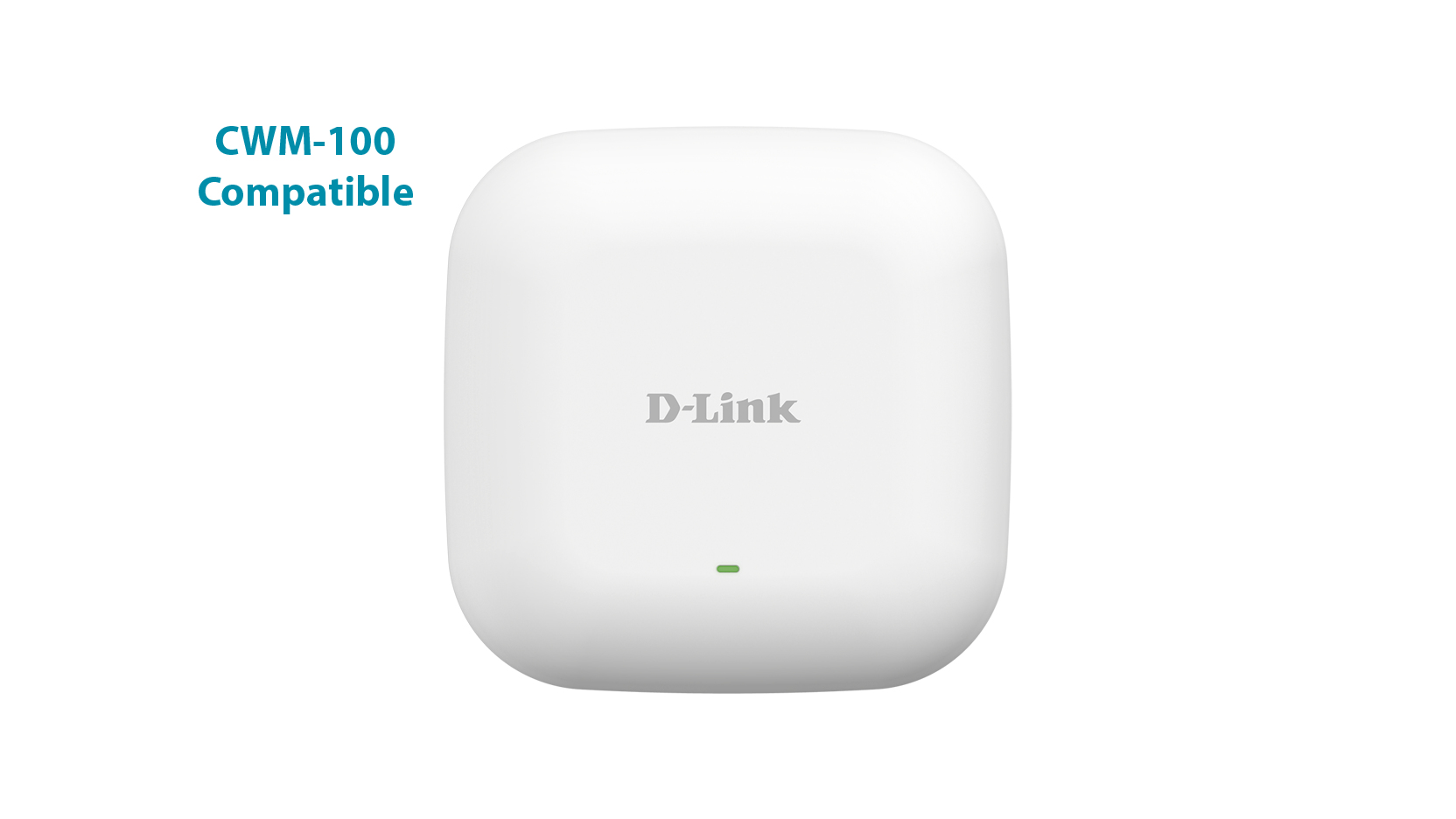

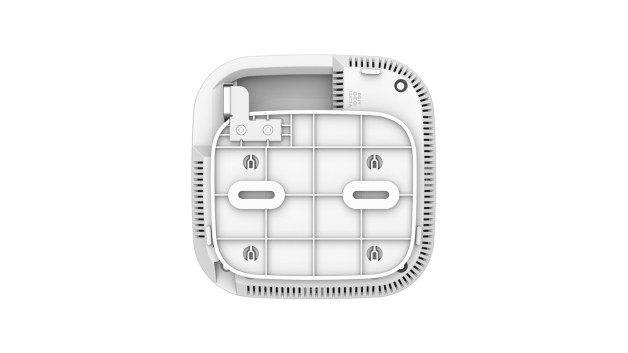

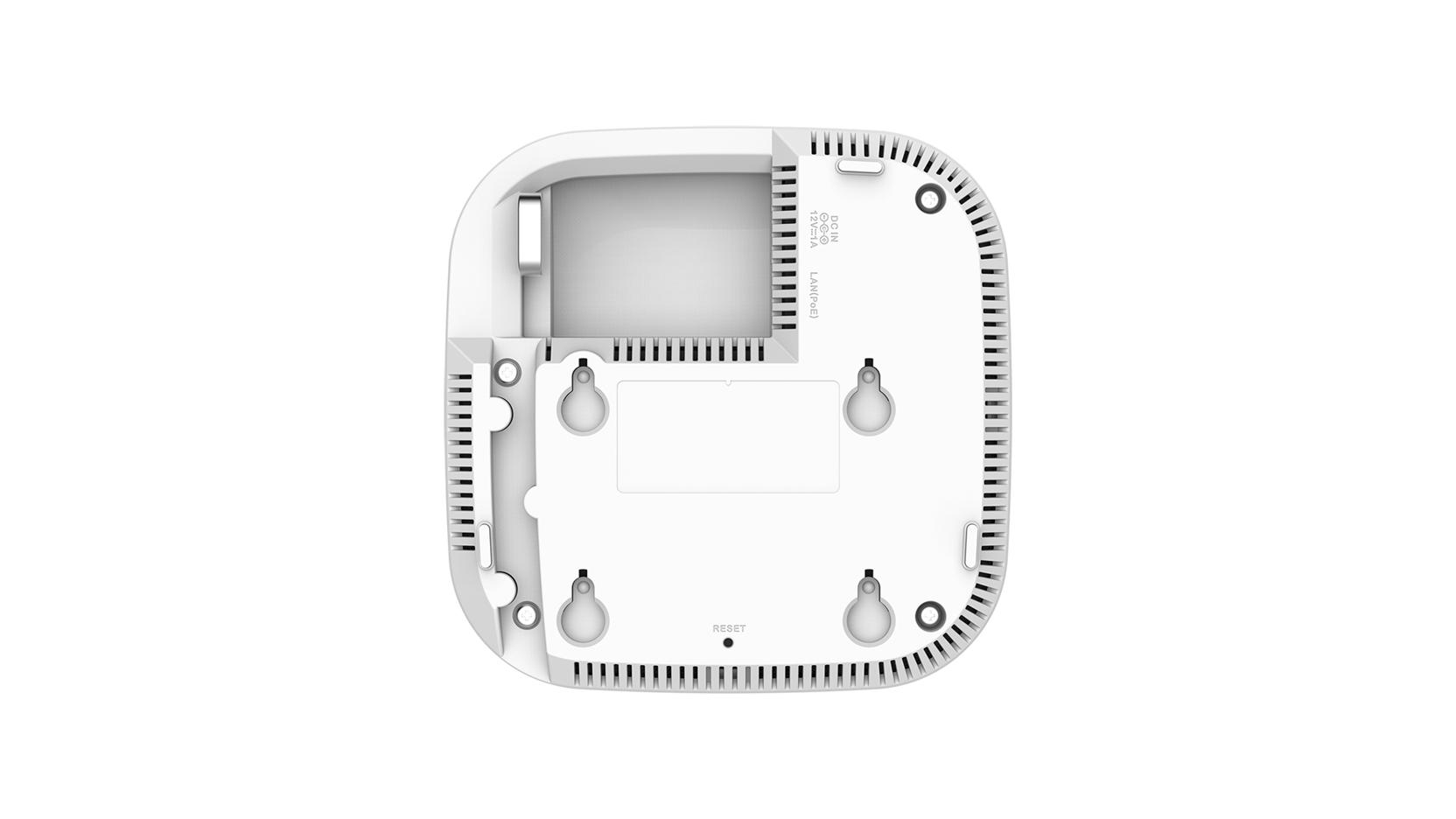

D-Link DAP-2230 wireless access point 300 Mbit/s White Power over Ethernet (PoE)

D-Link DAP-2230 wireless access point 300 Mbit/s White Power over Ethernet (PoE)

Model DAP-2230EAN 790069419867

55 specifications
  • Speed300 Mbit/s
  • Weight213.6 g
  • ColourWhite
  • 2.4 GHzYes
  • Ethernet LAN (RJ-45) ports1
  • Antenna featuresIntegrated antenna
See all specifications

Overview

Speed
300 Mbit/s
Weight
213.6 g
Colour
White
2.4 GHz
Yes
Ethernet LAN (RJ-45) ports
1
Antenna features
Integrated antenna
Brand
D-Link
Model
DAP-2230
Part numbers
DAP-2230, DAP-2230-BUN
EAN / UPC
790069419867, 790069420566, 790069424311
Also known as
D-Link DAP-2230 wireless access point 300 Mbit/s White Power over Ethernet (PoE)

Specifications

55 specifications in 13 groups

Features

2.4 GHzYes
5 GHzNo
Maximum data transfer rate300 Mbit/s
Ethernet LAN data rates10,100 Mbit/s
Frequency band2.4 - 2.4835 GHz
Bandwidth2.4 GHz
Networking standardsIEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3u
Quality of Service (QoS) supportYes

Security

Security algorithms64-bit WEP, 128-bit WEP, WPA, WPA2
MAC address filteringYes
Number of SSID supported8

Management features

Web-based managementYes

Ports & interfaces

Ethernet LAN (RJ-45) ports1
USB 2.0 ports quantity0
DC-in jackNo

Power

Power over Ethernet (PoE)Yes
AC input voltage12 V
Input current1 A
Power consumption (max)5.76 W

Design

Product colourWhite
LED indicatorsPower, Status
InternalNo

Antenna

Antenna featuresIntegrated antenna
Antennas quantity2
Antenna gain level (max)3 dBi

Technical details

Master (outer) cases per pallet (air)54 pc(s)
Master (outer) cases per pallet (sea)54 pc(s)
Pallet gross length120 cm
Pallet gross weight (air)443 kg
Pallet gross weight (sea)443 kg
Pallet gross width110 cm
Pallet height (air)2.1 m
Pallet height (sea)2.1 m
Products per pallet (air)1080 pc(s)
Products per pallet (sea)1080 pc(s)
Products per shipping (inner) case20 pc(s)
Shipping (inner) case gross weight7.87 kg
Shipping (inner) case height32.7 cm
Shipping (inner) case length33.3 cm
Shipping (inner) case net weight4.6 kg
Shipping (inner) case width32.4 cm

Certificates

CertificationFCC, IC, CE, UL, Wi-Fi® Certified

Weight & dimensions

Width129 mm
Depth129 mm
Height29 mm
Weight213.6 g

Packaging data

Package width144 mm
Package depth158 mm
Package height59 mm
Package weight350 g

Packaging content

Mounting kitYes

Operational conditions

Operating relative humidity (H-H)0 - 90%
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 65 °C
Storage relative humidity (H-H)5 - 95%
