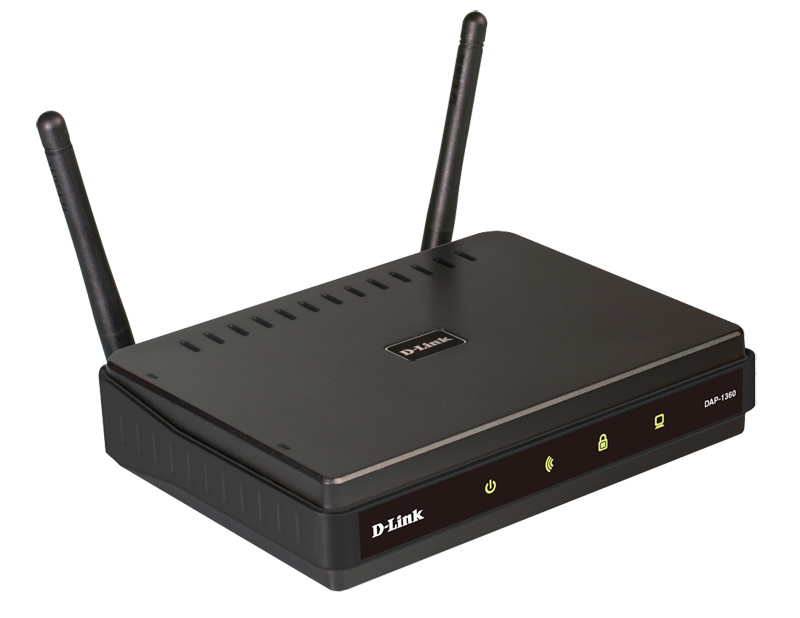

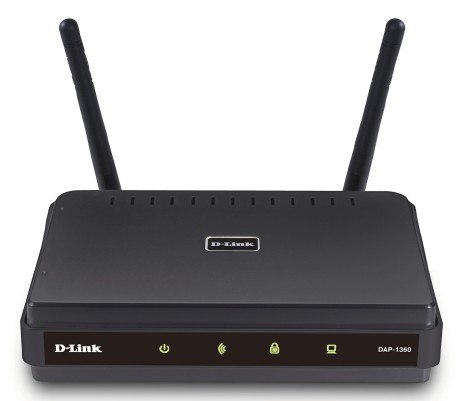

D-Link DAP-1360, EU power plug

DAP-1360, EU power plug

Model DAP-1360Part no. DAP-1360/B1AEAN 9789800333433

54 specifications

Speed300 Mbit/s
ConnectivityRJ-45
Weight229 g
2.4 GHzYes
Power requirements5VDC, 2.5A
LED indicatorsLAN, Power, Status, WLAN

See all specifications

Overview

Speed: 300 Mbit/s
Connectivity: RJ-45
Weight: 229 g
2.4 GHz: Yes
Power requirements: 5VDC, 2.5A
LED indicators: LAN, Power, Status, WLAN

Brand: D-Link
Category: Wireless Access Point
Model: DAP-1360
Part numbers: DAP-1360/B1A, DAP-1360/E, DAP-1360, DAP-1360/B, DAP-1360-BB
EAN / UPC: 9789800333433, 790069323003, 790069323058, 999990951563 +21 more
Also known as: D-Link DAP-1360, EU power plug

Specifications

54 specifications in 15 groups

Features

Specification	Value
2.4 GHz	Yes
Maximum data transfer rate	300 Mbit/s
Ethernet LAN data rates	10,100 Mbit/s
Frequency band	2.4 - 2.4835 GHz
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Cabling technology	10/100Base-T(X)
Channels quantity	13 channels
Modulation	CCK, DBPSK, DQPSK, OFDM
Quality of Service (QoS) support	Yes

Security

Specification	Value
Security algorithms	128-bit WEP, 64-bit WEP, SSID, TKIP, WPA-EAP, WPA-PSK, WPA2-EAP, WPA2-PSK, WPS
MAC address filtering	Yes

Management features

Specification	Value
Web-based management	Yes

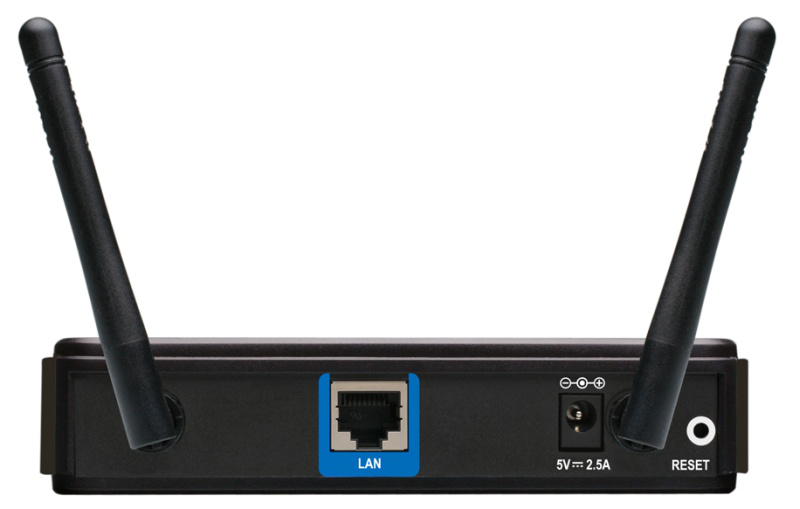

Ports & interfaces

Specification	Value
Interface	RJ-45
Ethernet LAN (RJ-45) ports	1
DC-in jack	Yes

Power

Specification	Value
Power requirements	5VDC, 2.5A

Design

Specification	Value
LED indicators	LAN, Power, Status, WLAN
Internal	No

Antenna

Specification	Value
Antenna features	Detachable antenna
Antennas quantity	2
Antenna gain level (max)	2 dBi
Antenna connector type	RP-SMA

Technical details

Specification	Value
Master (outer) cases per pallet (air)	30 pc(s)
Master (outer) cases per pallet (sea)	48 pc(s)
Pallet gross length	120 cm
Pallet gross weight (air)	223 kg
Pallet gross weight (sea)	343.6 kg
Pallet gross width	110 cm
Pallet height (air)	133.5 cm
Pallet height (sea)	2.06 m
Products per pallet (air)	300 pc(s)
Products per pallet (sea)	480 pc(s)
Products per shipping (inner) case	10 pc(s)
Shipping (inner) case gross weight	6.7 kg
Shipping (inner) case height	24 cm
Shipping (inner) case length	57.1 cm
Shipping (inner) case net weight	6 kg
Shipping (inner) case width	36 cm

Certificates

Specification	Value
Certification	FCC B

Weight & dimensions

Specification	Value
Dimensions (WxDxH)	144 x 109 x 30 mm
Weight	229 g

Packaging data

Specification	Value
Package width	208 mm
Package depth	274 mm
Package height	68 mm
Package weight	600 g

Packaging content

Specification	Value
AC adapter included	Yes

Other features

Specification	Value
Frequency range	2400 - 2483.5 MHz
Networking features	Fast Ethernet
Wireless technology	802.11b/g/n

Operational conditions

Specification	Value
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 55 °C
Storage temperature (T-T)	-10 - 70 °C
Storage relative humidity (H-H)	5 - 95%

Logistics data

Specification	Value
Harmonized System (HS) code	85176990
