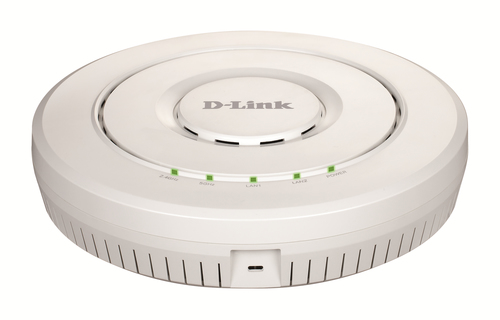

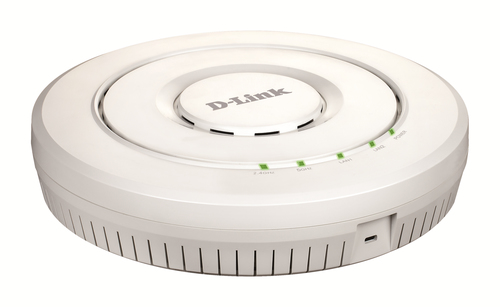

AX3600 Wi‑Fi 6 Dual‑Band Unified Access Point
Model AX3600Part no. DWL-X8630APEAN 790069452918
43 specifications
- Speed19216 Mbit/s
- Weight868 g
- ColourWhite
- 2.4 GHzYes
- Security algorithmsAES, TKIP
- Management protocolsSNMP v1/v2c/v3, Telnet, SSH
Overview
- Speed
- 19216 Mbit/s
- Weight
- 868 g
- Colour
- White
- 2.4 GHz
- Yes
- Security algorithms
- AES, TKIP
- Management protocols
- SNMP v1/v2c/v3, Telnet, SSH
- Brand
- D-Link
- Category
- Wireless Access Point
- Model
- AX3600
- Part numbers
- DWL-X8630AP, DAP-X2850
- EAN / UPC
- 790069452918, 790069456947
- Also known as
- D-Link AX3600 Wi‑Fi 6 Dual‑Band Unified Access Point
Specifications
43 specifications in 12 groups
Features
| Specification | Value |
|---|---|
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Maximum data transfer rate | 19216 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 9176 Mbit/s |
| Maximum data transfer rate (5 GHz) | 19216 Mbit/s |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Frequency band | 2.4 - 5 GHz |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.3at |
| Channels quantity | 165 channels |
| Automatic channel selection | Yes |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| VLAN support | Yes |
| Band steering | Yes |
| Quality of Service (QoS) support | Yes |
| Mean time between failures (MTBF) | 485222 h |
Security
| Specification | Value |
|---|---|
| Security algorithms | AES, TKIP |
| MAC address filtering | Yes |
| Service Set Identifier (SSID) features | Multiple SSIDs |
| Number of SSID supported | 32 |
Protocols
| Specification | Value |
|---|---|
| Management protocols | SNMP v1/v2c/v3, Telnet, SSH |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |
| Command-line interface (CLI) | Yes |

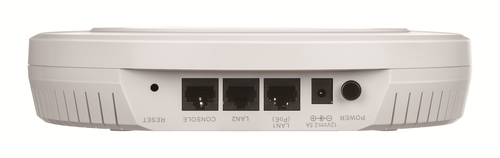

Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 0 |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power consumption (max) | 19.98 W |
Design
| Specification | Value |
|---|---|
| Product colour | White |
| Housing material | Plastic |
Antenna
| Specification | Value |
|---|---|
| Antenna type | Internal |
| Antenna direction type | Omni-directional |
| Antenna gain level (max) | 4 dBi |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, EN55032, EN55024, EN61000-3-2, EN61000-3-3, EN60601- 1-2 (Medical electrical equipment), EN301489-1, EN301489-17, EN300328, EN301893 FCC, IC cUL+UL (UL/CSA 62368-1 + UL 60950-22) LVD (IEC/EN 62368-1) CB (IEC/EN 60950-1 + 62368-1) RCM NCC BSMI (CNS 14336-1) UL2043 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 220 mm |
| Depth | 220 mm |
| Height | 47 mm |
| Weight | 868 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 65 °C |
| Storage relative humidity (H-H) | 5 - 95% |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
