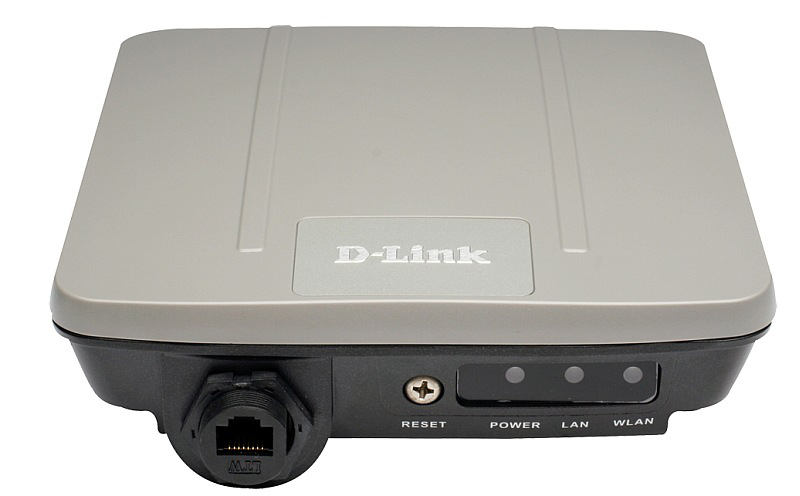

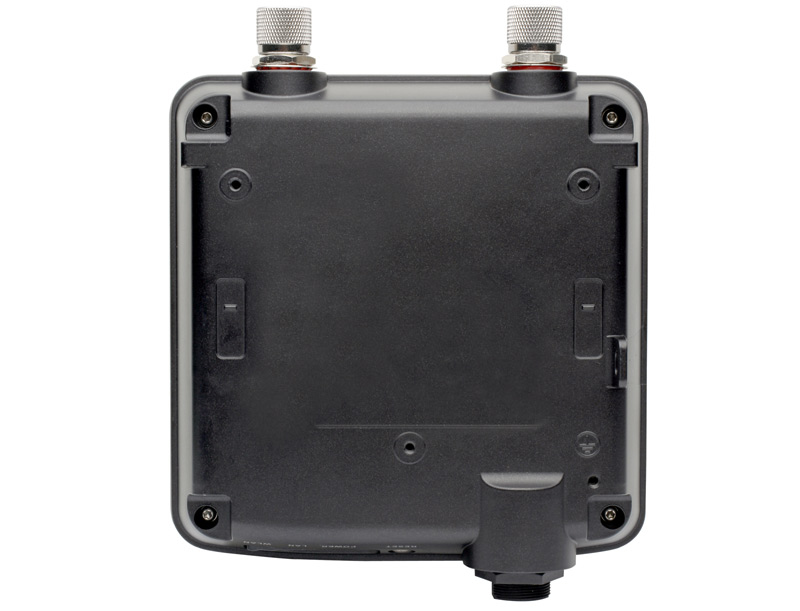

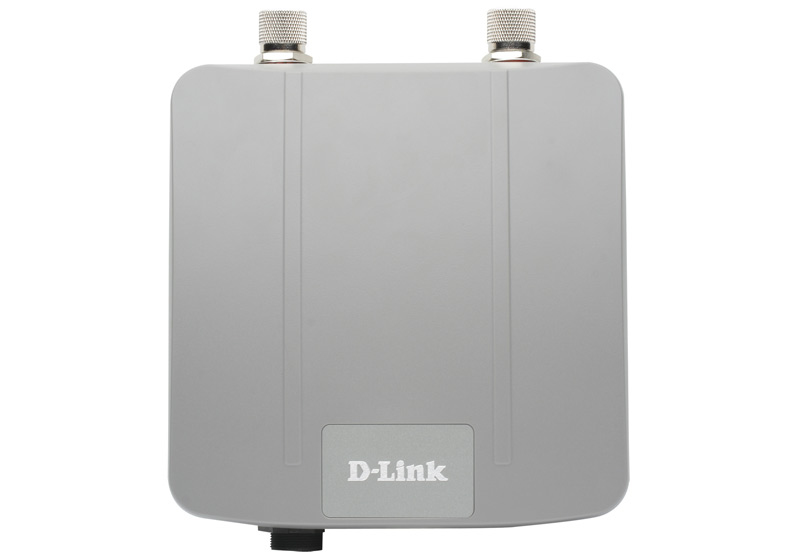

D-Link AirPremier N Dual Band Exterior Access Point

D-Link AirPremier N Dual Band Exterior Access Point

Model AirPremier N Dual Band Exterior Access PointPart no. DAP-3520/AEAN 790069323867

37 specifications
  • Speed300 Mbit/s
  • ConnectivityWLAN
  • Weight774 g
  • 2.4 GHzYes
  • LED indicatorsLAN, Power, WLAN
  • Antenna featuresDetachable antenna
See all specifications

Overview

Speed
300 Mbit/s
Connectivity
WLAN
Weight
774 g
2.4 GHz
Yes
LED indicators
LAN, Power, WLAN
Antenna features
Detachable antenna
Brand
D-Link
Model
AirPremier N Dual Band Exterior Access Point
Part number
DAP-3520/A
EAN / UPC
790069323867
Also known as
D-Link AirPremier N Dual Band Exterior Access Point 300 Mbit/s Power over Ethernet (PoE)

Specifications

37 specifications in 13 groups

Features

2.4 GHzYes
Maximum data transfer rate300 Mbit/s
Ethernet LAN data rates10,100,1000 Mbit/s
Frequency band2.4 - 2.4835, 5.15 - 5.25, 5.725 - 5.85 GHz
Networking standardsIEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x
Cabling technology10/100/1000Base-T(X)
Channels quantity13 channels
VLAN supportYes
Quality of Service (QoS) supportYes
Receiver sensitivity6Mbps: -85dBm 9Mbps: -85dBm 12Mbps: -85dBm 18Mbps: -85dBm 24Mbps: -80dBm 36Mbps: -78dBm 48Mbps: -74dBm 54Mbps: -73dBm

Security

Security algorithms128-bit WEP, 64-bit WEP, TKIP, WPA-PSK, WPA2-PSK

Protocols

DHCP serverYes
Supported network protocolsSNMP, Telnet, HTTP

Management features

Web-based managementYes

Ports & interfaces

InterfaceWLAN
Ethernet LAN (RJ-45) ports1
WAN connectionEthernet (RJ-45)
Interface typeRJ-45

Power

Power over Ethernet (PoE)Yes
Power consumption (typical)12.95 W
Power supply typeDC

Design

LED indicatorsLAN, Power, WLAN
InternalNo

Antenna

Antenna featuresDetachable antenna
Antennas quantity2
Antenna gain level (max)10 dBi

Certificates

CertificationFCC Class B, Wi-Fi, CE, C-Tick, IC, CSA, UL 60950

Weight & dimensions

Dimensions (WxDxH)160 x 190 x 55 mm
Weight774 g

Packaging content

AC adapter includedYes

Other features

Compliance industry standardsIEEE Draft 2.0 802.11n, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x, IEEE 802.3
Networking featuresGigabit Ethernet
Power LEDYes
Wireless technology802.11 a/b/g/n

Operational conditions

Operating relative humidity (H-H)10 - 90%
Operating temperature (T-T)-20 - 60 °C
Storage temperature (T-T)-20 - 65 °C
