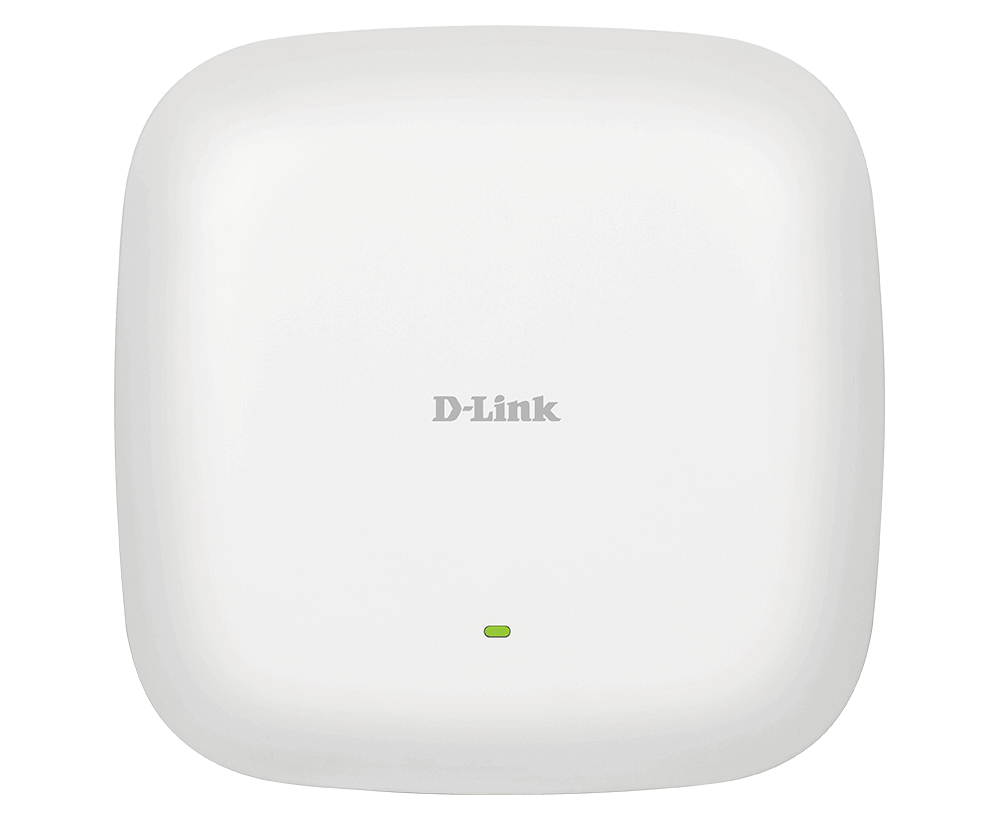

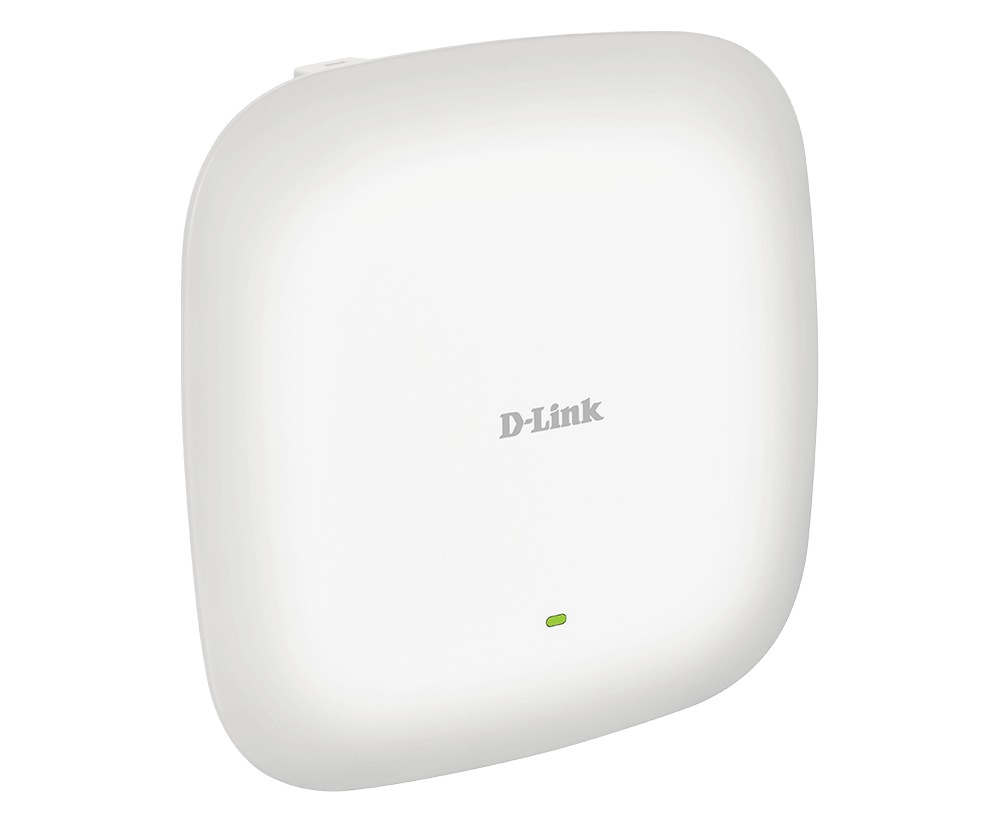

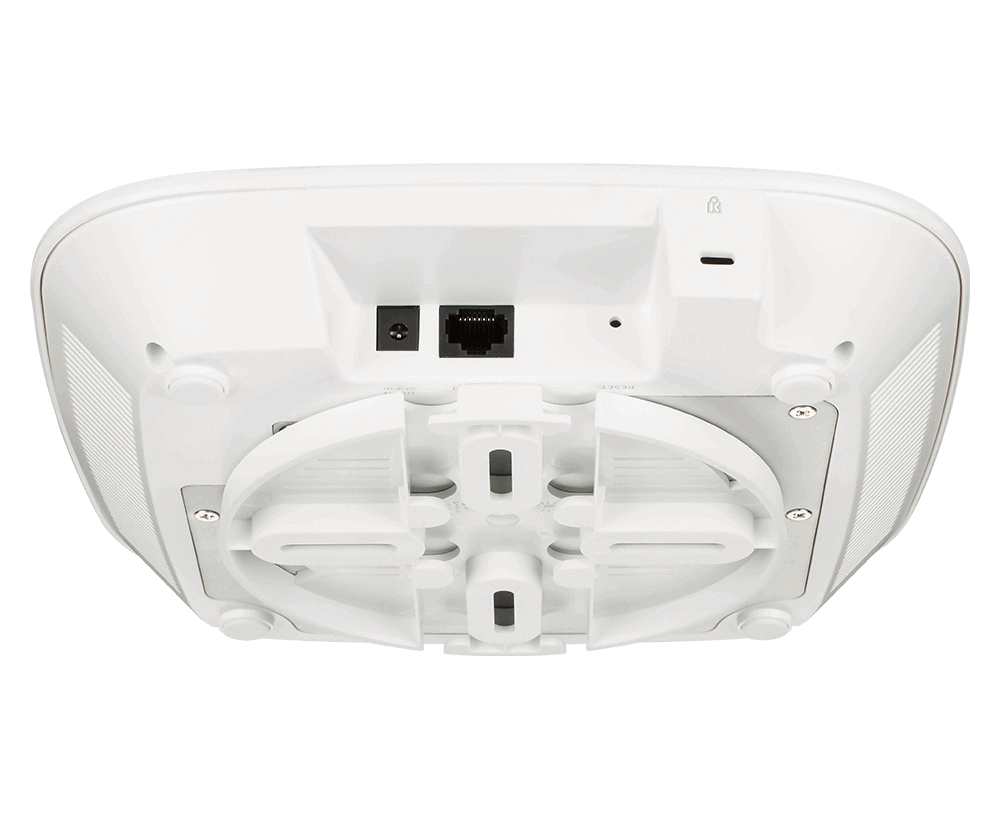

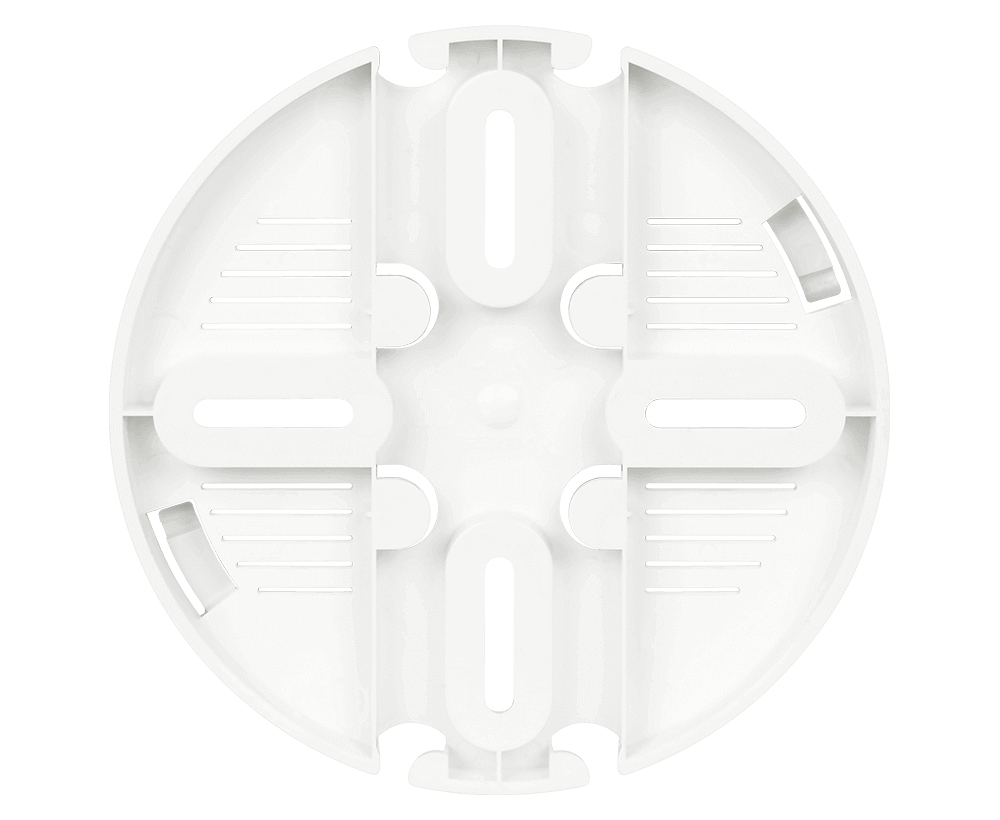

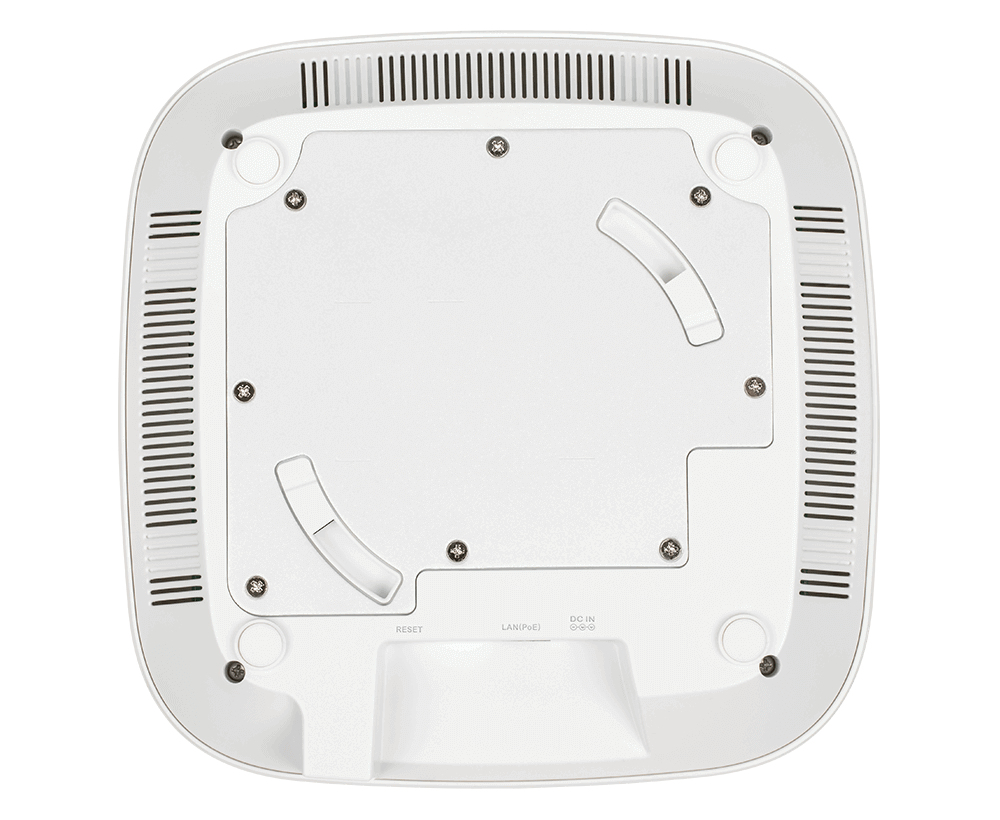

AC2200 2200 Mbit/s White Power over Ethernet (PoE)
Model AC2200Part no. DAP-2720EAN 790069448904
36 specifications
- Speed2200 Mbit/s
- Weight721.8 g
- ColourWhite
- 2.4 GHzYes
- Security algorithmsWEP, WPA, WPA2-EAP, WPA2-PSK
- Ethernet LAN (RJ-45) ports1
Overview
- Speed
- 2200 Mbit/s
- Weight
- 721.8 g
- Colour
- White
- 2.4 GHz
- Yes
- Security algorithms
- WEP, WPA, WPA2-EAP, WPA2-PSK
- Ethernet LAN (RJ-45) ports
- 1
- Brand
- D-Link
- Category
- Wireless Access Point
- Model
- AC2200
- Part number
- DAP-2720
- EAN / UPC
- 790069448904
- Also known as
- D-Link AC2200 2200 Mbit/s White Power over Ethernet (PoE)
Specifications
36 specifications in 8 groups
Features
| Specification | Value |
|---|---|
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Maximum data transfer rate | 2200 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 400 Mbit/s |
| Maximum data transfer rate (5 GHz) | 866 Mbit/s |
| Ethernet LAN data rates | 1000 Mbit/s |
| Throughput data rate | 2200 Mbit/s |
| Frequency band | 2.4 - 5 GHz |
| Networking standards | IEEE 802.3at |
| Cabling technology | 10/100/1000Base-T(X) |
| Automatic channel selection | Yes |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Quality of Service (QoS) support | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | WEP, WPA, WPA2-EAP, WPA2-PSK |
| MAC address filtering | Yes |
| Service Set Identifier (SSID) features | SSID broadcast |
| Number of SSID supported | 16 |
| Auto Wireless Distribution System (WDS) | Yes |
| Remote Authentication Dial-In User Service (RADIUS) | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 0 |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
Design
| Specification | Value |
|---|---|
| Placement | Ceiling, Wall |
| Product colour | White |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Reset button | Yes |
| LED indicators | Yes |
Antenna
| Specification | Value |
|---|---|
| Antenna type | Internal |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 212 mm |
| Depth | 212 mm |
| Height | 48 mm |
| Weight | 721.8 g |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Quick start guide | Yes |
