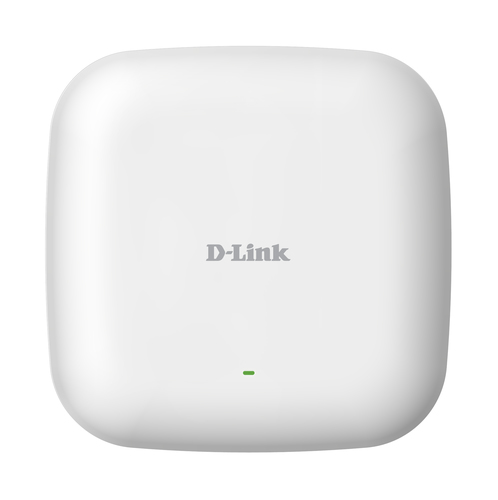

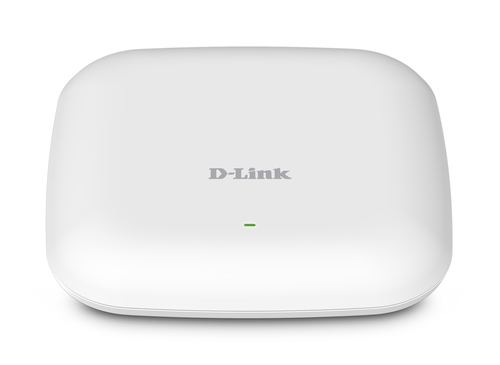

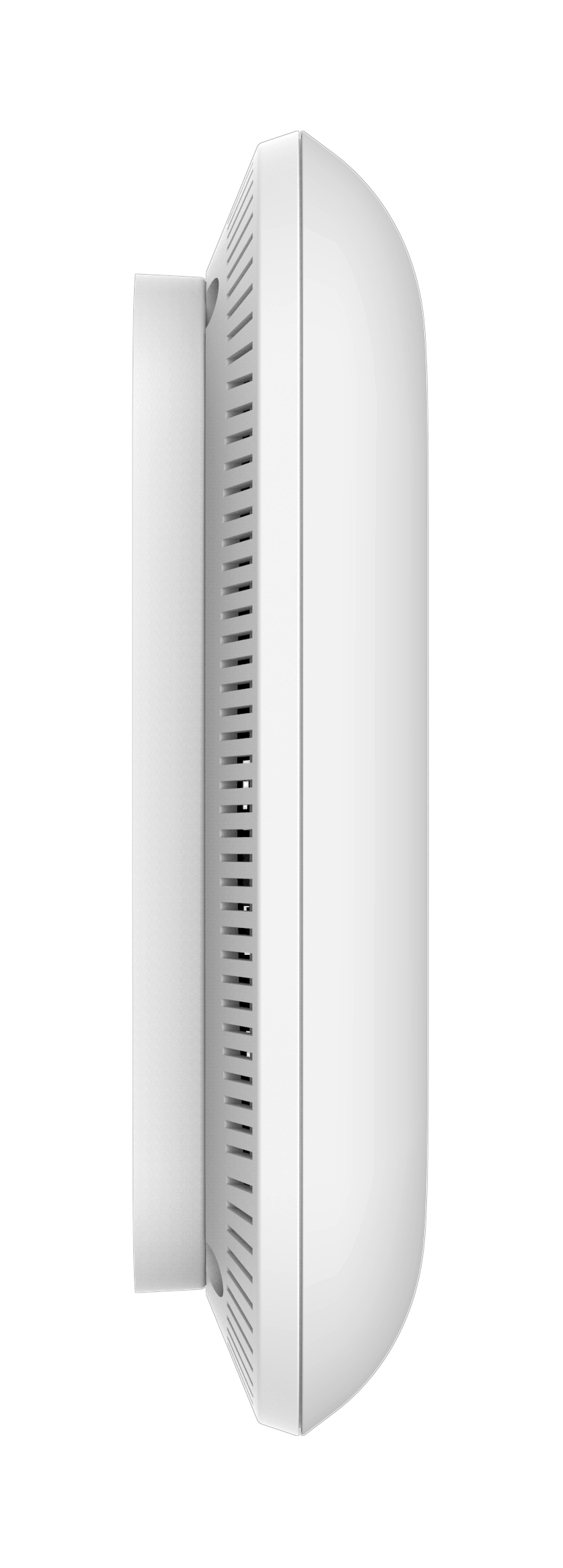

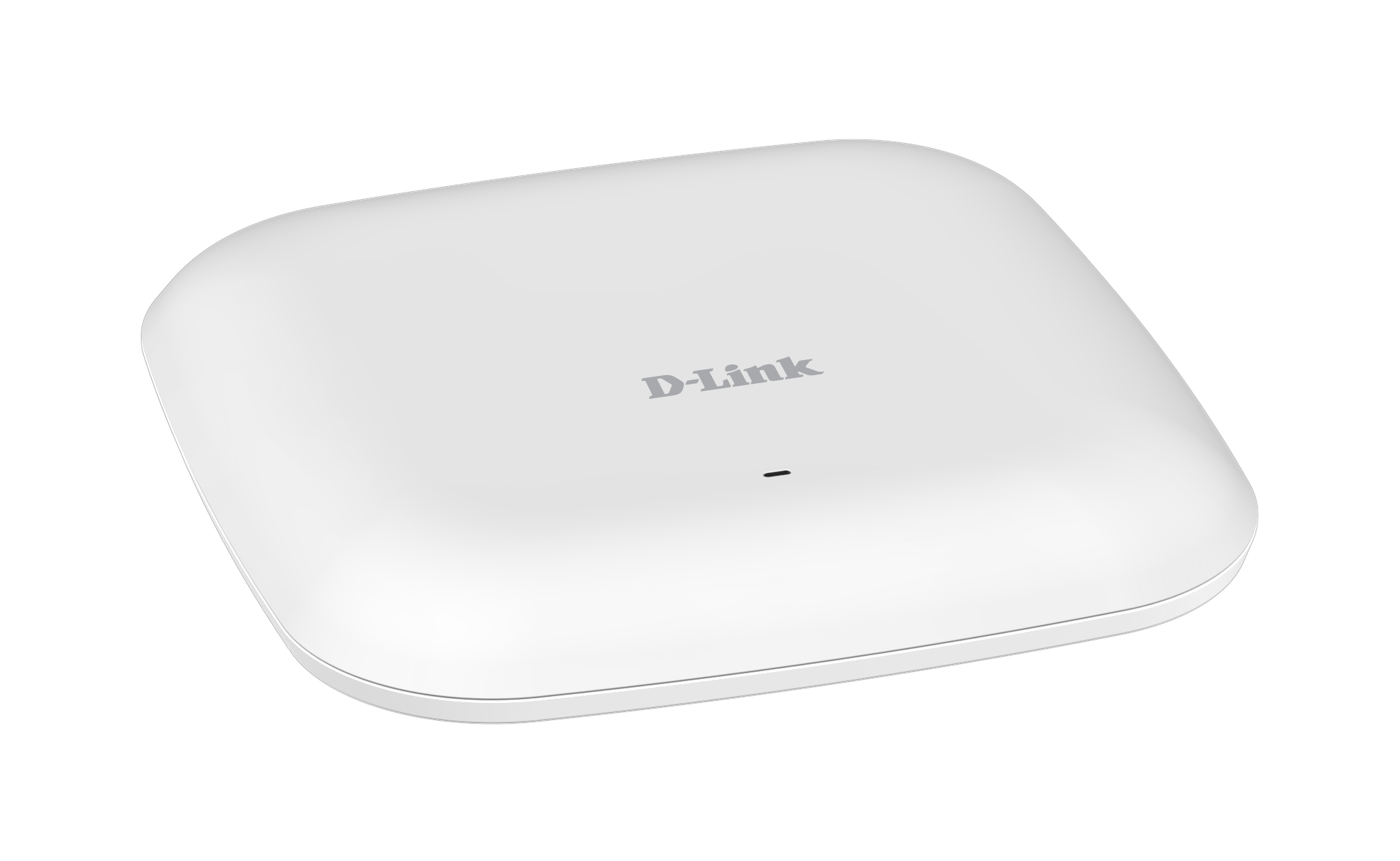

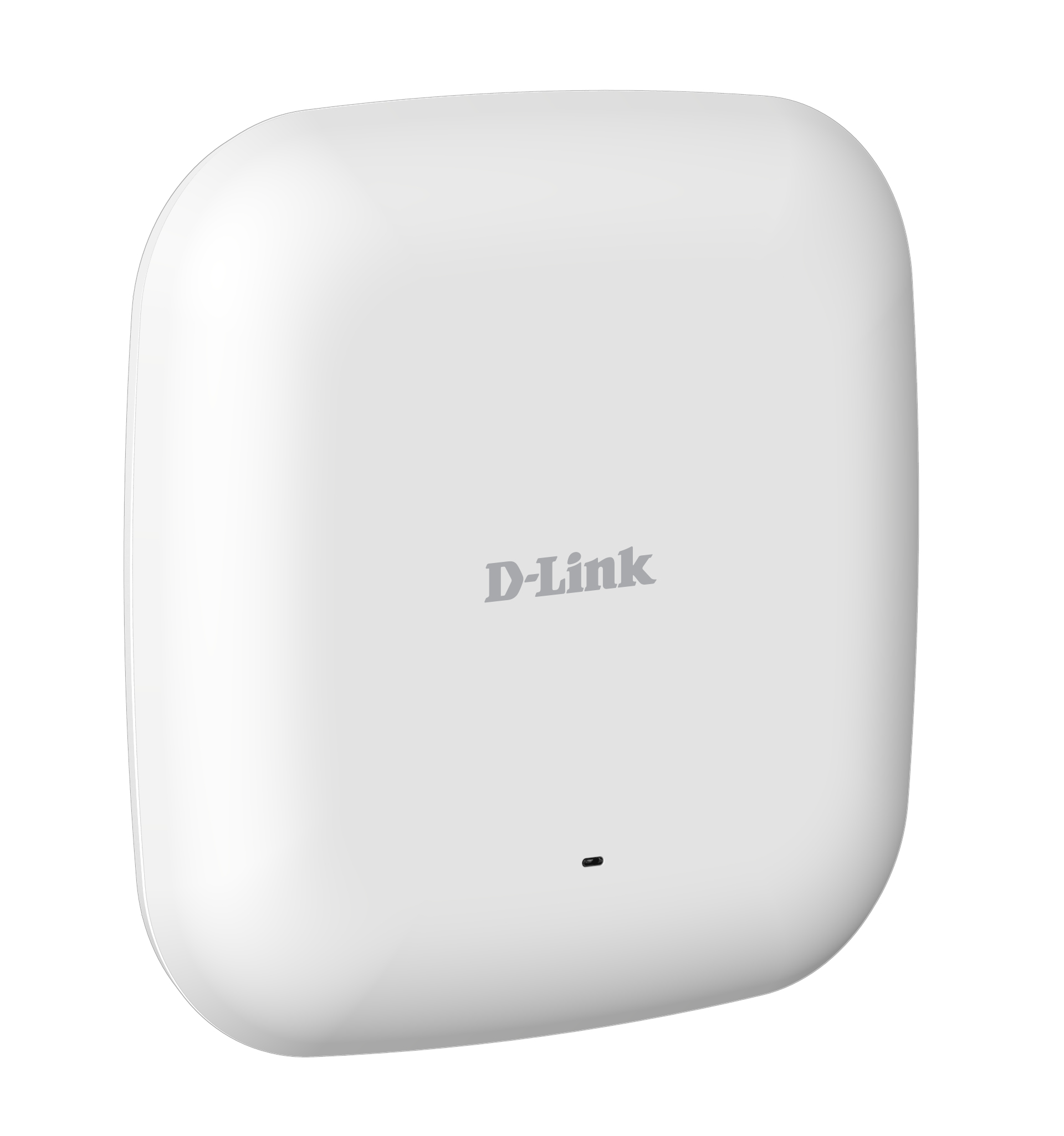

AC1300 1300 Mbit/s White Power over Ethernet (PoE)
Model AC1300Part no. DBA-1210P/03EAN 790069440427
37 specifications
- Speed1300 Mbit/s
- ColourWhite
- 2.4 GHzYes
- Ethernet LAN (RJ-45) ports1
- PlacementCeiling, Table, Wall
- Antenna typeInternal
Overview
- Speed
- 1300 Mbit/s
- Colour
- White
- 2.4 GHz
- Yes
- Ethernet LAN (RJ-45) ports
- 1
- Placement
- Ceiling, Table, Wall
- Antenna type
- Internal
- Brand
- D-Link
- Category
- Wireless Access Point
- Model
- AC1300
- Part numbers
- DBA-1210P/03, DBA-3620P
- EAN / UPC
- 790069440427, 790069452901
- Also known as
- D-Link AC1300 1300 Mbit/s White Power over Ethernet (PoE)
Specifications
37 specifications in 9 groups
Features
| Specification | Value |
|---|---|
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Maximum data transfer rate | 1300 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 300 Mbit/s |
| Maximum data transfer rate (5 GHz) | 1200 Mbit/s |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Frequency band | 2.4/5 GHz |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| MIMO | Yes |
| Wireless isolation | Yes |
| Transmitting power | 20 dBmW |
| Mean time between failures (MTBF) | 30000 h |
Security
| Specification | Value |
|---|---|
| Security algorithms | 64-bit WEP, 128-bit WEP, WPA-Enterprise, WPA-PSK, WPA2-Enterprise, WPA2-PSK |
| MAC address filtering | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 0 |
| WAN connection | Ethernet (RJ-45) |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Output voltage | 12 V |
| Output current | 1 A |
| Power consumption (typical) | 12 W |
| Power supply | 12 W |
Design
| Specification | Value |
|---|---|
| Placement | Ceiling, Table, Wall |
| Product colour | White |
| LED indicators | Power, Status |
Antenna
| Specification | Value |
|---|---|
| Antenna type | Internal |
Certificates
| Specification | Value |
|---|---|
| Certification | CE Class B FCC Class B UL IC Class B |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 170 mm |
| Depth | 170 mm |
| Height | 28 mm |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 65 °C |
| Storage relative humidity (H-H) | 5 - 95% |
