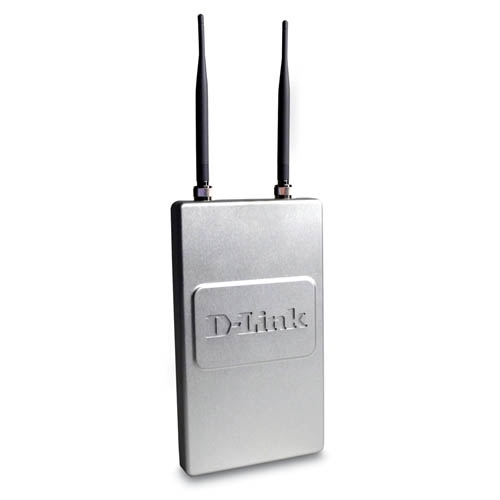

802.11g Outdoor Access Point
Model 802.11g Outdoor Access PointPart no. DWL-2700APEAN 8032976048726
26 specifications
- Speed54 Mbit/s
- 2.4 GHzYes
- Management protocolsTelnet, SNMP v.3
- LED indicatorsLAN, Power, WAN
- Antenna typeExternal
- Dimensions (WxDxH)155 x 277.7 x 45 mm
Overview
- Speed
- 54 Mbit/s
- 2.4 GHz
- Yes
- Management protocols
- Telnet, SNMP v.3
- LED indicators
- LAN, Power, WAN
- Antenna type
- External
- Dimensions (WxDxH)
- 155 x 277.7 x 45 mm
- Brand
- D-Link
- Category
- Wireless Access Point
- Model
- 802.11g Outdoor Access Point
- Part number
- DWL-2700AP
- EAN / UPC
- 8032976048726, 790069265143, 790069268151, 790069268175 +5 more
- Also known as
- D-Link 802.11g Outdoor Access Point 54 Mbit/s Power over Ethernet (PoE)
Specifications
26 specifications in 11 groups
Features
| Specification | Value |
|---|---|
| 2.4 GHz | Yes |
| Maximum data transfer rate | 54 Mbit/s |
| Frequency band | 2.4 - 2.4835 GHz |
| Modulation | BPSK, CCK, DBPSK, DQPSK, QPSK |
Security
| Specification | Value |
|---|---|
| MAC address filtering | Yes |
Protocols
| Specification | Value |
|---|---|
| Management protocols | Telnet, SNMP v.3 |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |
| Management platform | AP Manager |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power consumption (typical) | 28.5 W |
| Power requirements | 48V DC |
Design
| Specification | Value |
|---|---|
| LED indicators | LAN, Power, WAN |
Antenna
| Specification | Value |
|---|---|
| Antenna type | External |
| Antenna features | Monopole antenna |
| Antennas quantity | 2 |
| Antenna gain level (max) | 5 dBi |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC Part 15, UL, CSA |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 155 x 277.7 x 45 mm |
Other features
| Specification | Value |
|---|---|
| Supported data transfer rates | 1 - 54 Mbps |
| Indoor range | 30m @ 54Mbps 34m @ 48Mbps 39m @ 36Mbps 47m @ 24Mbps 56m @ 18Mbps 66m @ 12Mbps 79m @ 9Mbps 99m @ 6Mbps |
| Outdoor range | 112m @ 54Mbps 250m @ 18Mbps 500m @ 6Mbps |
| Compliance industry standards | IEEE 802.11g, IEEE 802.11b, IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -40 - 60 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Storage relative humidity (H-H) | 5 - 95% |
