D-Link 3XDAP-3662 wireless access point 1200 Mbit/s White Power over Ethernet (PoE)

3XDAP-3662 wireless access point 1200 Mbit/s White Power over Ethernet (PoE)

Model 3XDAP-3662

51 specifications

Speed1200 Mbit/s
Weight981 g
ColourWhite
2.4 GHzYes
Ethernet LAN (RJ-45) ports2
PlacementWall

See all specifications

Overview

Speed: 1200 Mbit/s
Weight: 981 g
Colour: White
2.4 GHz: Yes
Ethernet LAN (RJ-45) ports: 2
Placement: Wall

Brand: D-Link
Category: Wireless Access Point
Model: 3XDAP-3662
Part number: 3XDAP-3662
Also known as: D-Link 3XDAP-3662 wireless access point 1200 Mbit/s White Power over Ethernet (PoE)

Specifications

51 specifications in 13 groups

Features

Specification	Value
2.4 GHz	Yes
5 GHz	Yes
Maximum data transfer rate	1200 Mbit/s
Maximum data transfer rate (2.4 GHz)	300 Mbit/s
Maximum data transfer rate (5 GHz)	867 Mbit/s
Ethernet LAN data rates	10,100,1000 Mbit/s
Frequency band	2.4 / 5 GHz
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11n, IEEE 802.1D, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u
MIMO	Yes
Fit AP mode features	Wireless distribution system (WDS)
Wi-Fi Multimedia (WMM) features	WMM power saving
Wi-Fi roaming	Yes
Wireless isolation	Yes
Quality of Service (QoS) support	Yes

Security

Specification	Value
Security algorithms	64-bit WEP, 128-bit WEP, 802.1x RADIUS, AES, HTTPS, SSH, TKIP, WPA, WPA2, WPA2-Enterprise, WPA2-PSK
MAC address filtering	Yes
Service Set Identifier (SSID) features	SSID broadcast, SSID broadcast on/off
Number of SSID supported	16
IGMP snooping	Yes

Protocols

Specification	Value
DHCP server	Yes
Management protocols	Telnet, SSH, HTTP, HTTPS, SNMP, AP

Management features

Specification	Value
Command-line interface (CLI)	Yes
Syslog	Yes

Ports & interfaces

Specification	Value

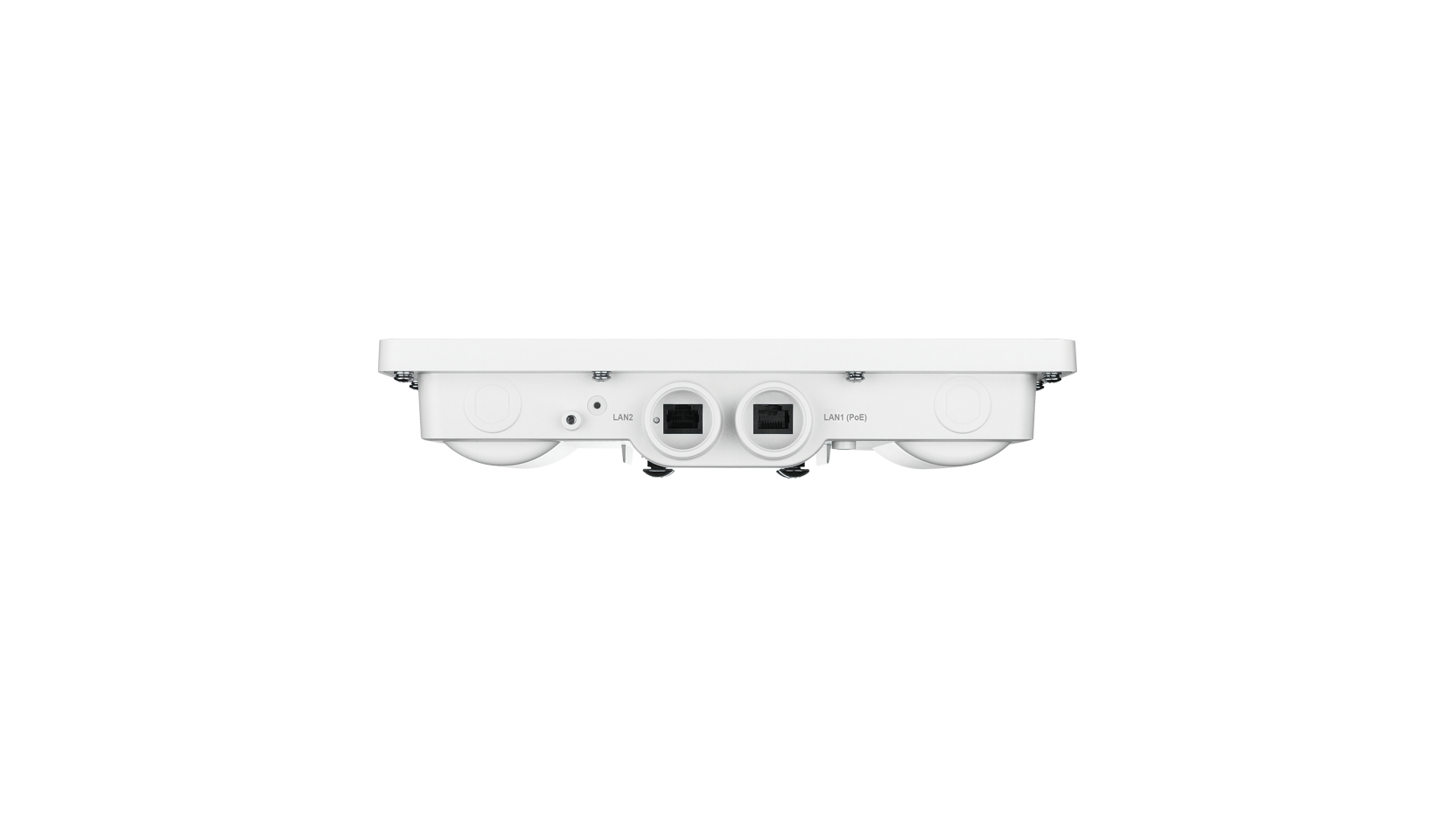

Ethernet LAN (RJ-45) ports	2
USB 2.0 ports quantity	0
WAN connection	Ethernet (RJ-45)
DC-in jack	Yes

Power

Specification	Value
Power over Ethernet (PoE)	Yes
AC input voltage	48 V
Power consumption (max)	12.5 W

Design

Specification	Value
Placement	Wall
Product colour	White
Housing material	Plastic
International Protection (IP) code	IP67
LED indicators	Yes

Antenna

Specification	Value
Antenna type	Internal
Antenna direction type	Omni-directional
Antennas quantity	2
Antenna gain level (max)	6 dBi

Certificates

Specification	Value
Compliance certificates	CE
Certification	FCC, IC, CE, C-Tick, UL

Weight & dimensions

Specification	Value
Width	277 mm
Depth	240 mm
Height	50 mm
Weight	981 g

Packaging content

Specification	Value
Quantity per pack	3 pc(s)

Operational conditions

Specification	Value
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	-30 - 60 °C
Storage temperature (T-T)	-30 - 65 °C
Storage relative humidity (H-H)	5 - 95%

Sustainability

Specification	Value
Sustainability compliance	Yes
