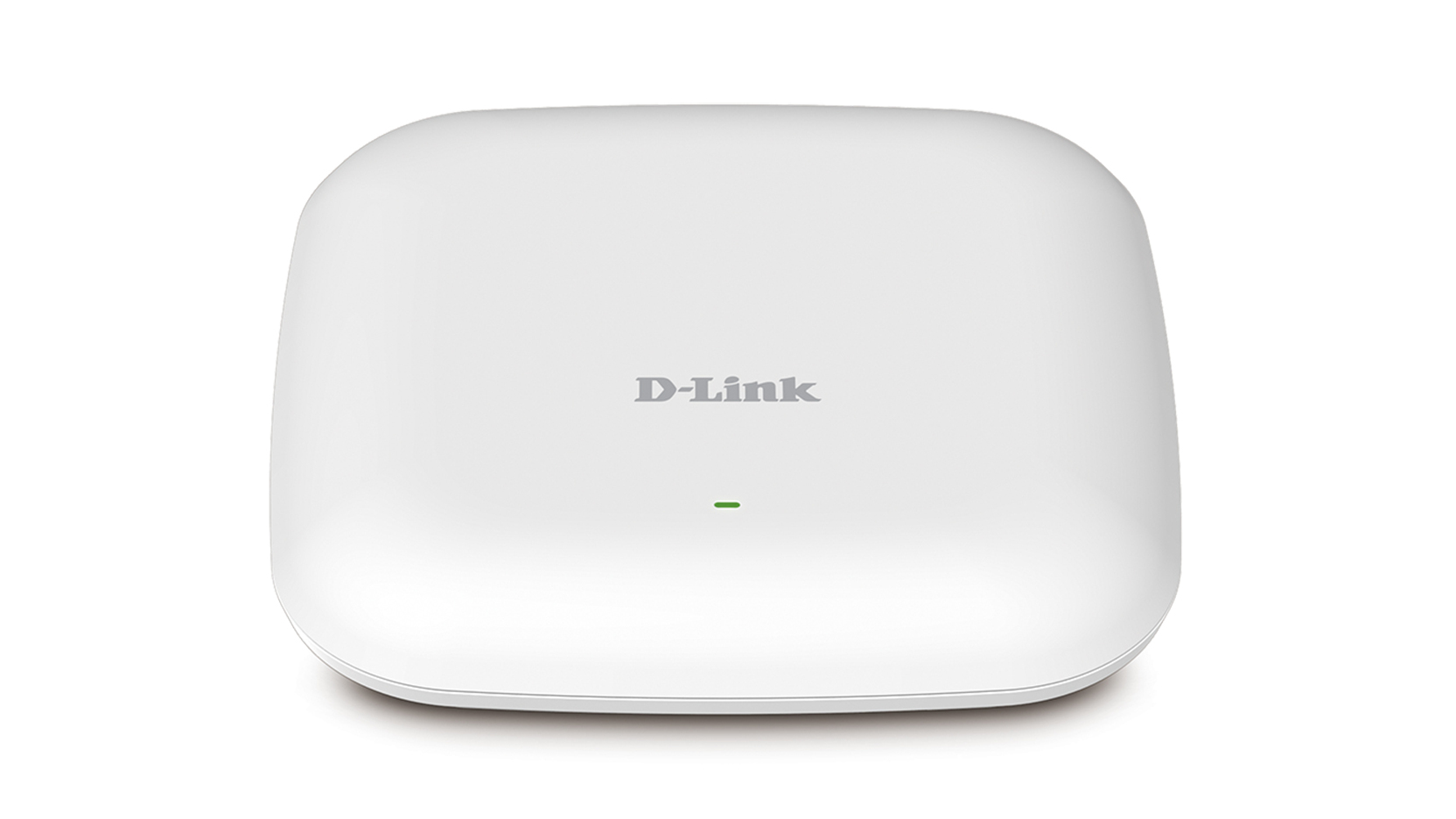

D-Link 3XDAP-2660 wireless access point 1200 Mbit/s White Power over Ethernet (PoE)

3XDAP-2660 wireless access point 1200 Mbit/s White Power over Ethernet (PoE)

Model 3XDAP-2660

42 specifications

Speed1200 Mbit/s
Weight316 g
ColourWhite
2.4 GHzYes
Management protocolsTelnet, SSH, HTTP, HTTPS, SNMP
Ethernet LAN (RJ-45) ports1

See all specifications

Overview

Speed: 1200 Mbit/s
Weight: 316 g
Colour: White
2.4 GHz: Yes
Management protocols: Telnet, SSH, HTTP, HTTPS, SNMP
Ethernet LAN (RJ-45) ports: 1

Brand: D-Link
Category: Wireless Access Point
Model: 3XDAP-2660
Part number: 3XDAP-2660
Also known as: D-Link 3XDAP-2660 wireless access point 1200 Mbit/s White Power over Ethernet (PoE)

Specifications

42 specifications in 12 groups

Features

Specification	Value
2.4 GHz	Yes
5 GHz	Yes
Maximum data transfer rate	1200 Mbit/s
Maximum data transfer rate (2.4 GHz)	300 Mbit/s
Maximum data transfer rate (5 GHz)	867 Mbit/s
Ethernet LAN data rates	10,100,1000 Mbit/s
Frequency band	2.4 - 5.8 GHz
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11n
MIMO	Yes
Quality of Service (QoS) support	Yes
Maximum indoor range	100 m

Security

Specification	Value
Security algorithms	64-bit WEP, 128-bit WEP, AES, SSH, TKIP, WPA, WPA2, WPA2-PSK
MAC address filtering	Yes
Number of SSID supported	16

Protocols

Specification	Value
Management protocols	Telnet, SSH, HTTP, HTTPS, SNMP

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	0
WAN connection	Ethernet (RJ-45)
DC-in jack	Yes

Power

Specification	Value
Power over Ethernet (PoE)	Yes
AC input voltage	12 V
Power consumption (typical)	11 W

Design

Specification	Value
Placement	Wall
Product colour	White
Housing material	Plastic
LED indicators	Yes

Antenna

Specification	Value
Antenna type	Internal
Antenna features	Integrated antenna
Antennas quantity	2
Antenna gain level (max)	4 dBi

Certificates

Specification	Value
Compliance certificates	CE
Certification	FCC, IC, CE, UL, Wi-Fi

Weight & dimensions

Specification	Value
Width	170 mm
Depth	170 mm
Height	28 mm
Weight	316 g

Packaging content

Specification	Value
Quantity per pack	3 pc(s)

Operational conditions

Specification	Value
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 65 °C
Storage relative humidity (H-H)	5 - 95%

Sustainability

Specification	Value
Sustainability compliance	Yes
