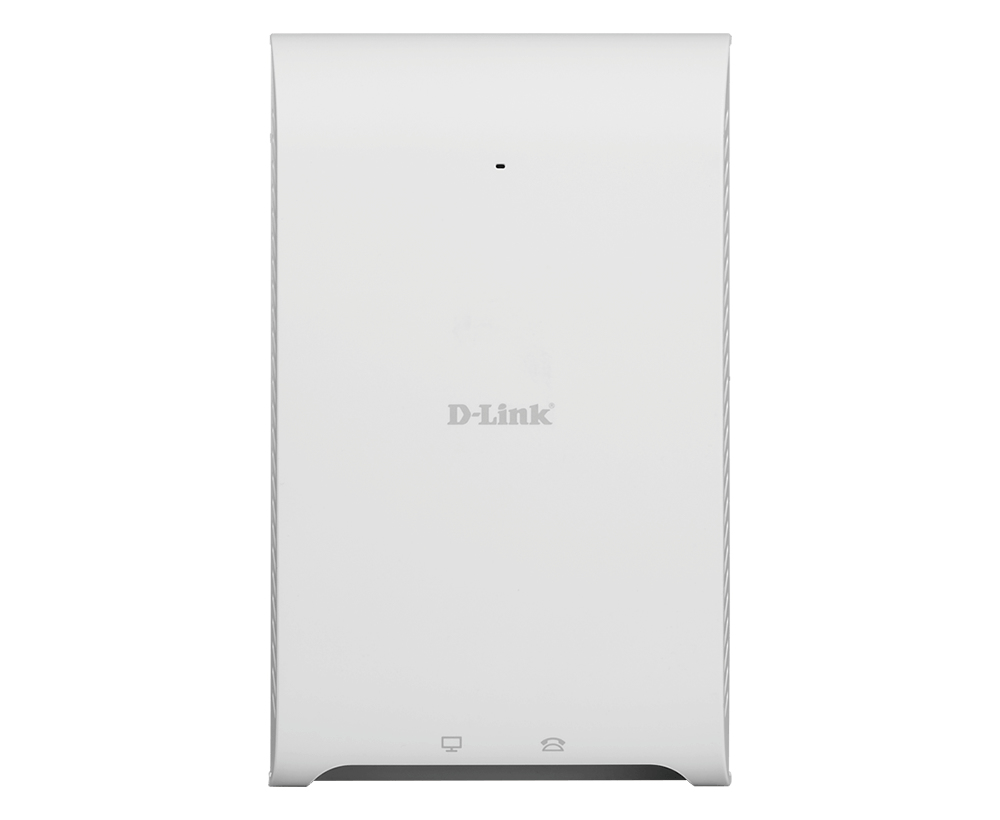

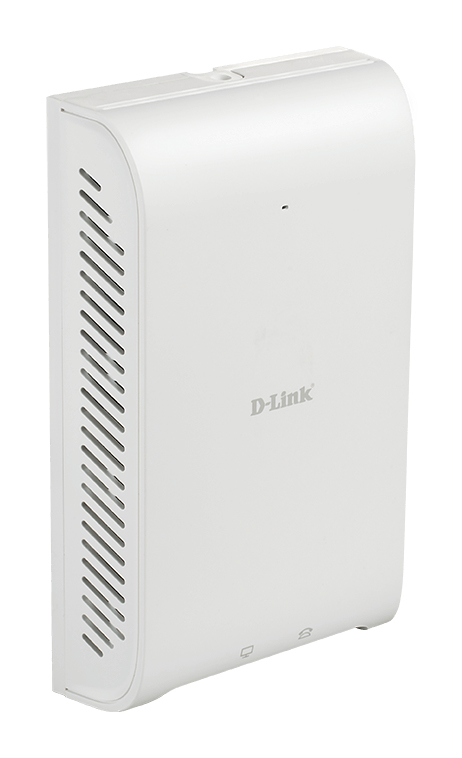

3XDAP-2620 wireless access point 1200 Mbit/s White Power over Ethernet (PoE)
Model 3XDAP-2620
37 specifications
- Speed1200 Mbit/s
- Weight212 g
- ColourWhite
- 2.4 GHzYes
- Ethernet LAN (RJ-45) ports1
- PlacementIn-wall
Overview
- Speed
- 1200 Mbit/s
- Weight
- 212 g
- Colour
- White
- 2.4 GHz
- Yes

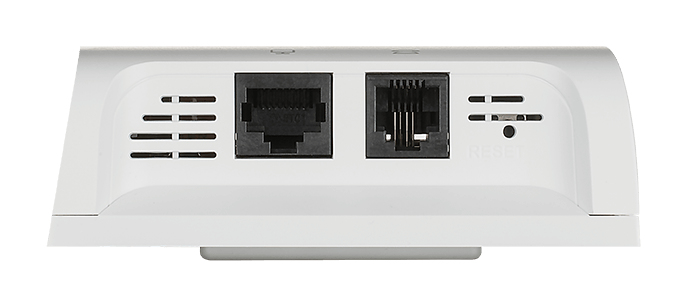

- Ethernet LAN (RJ-45) ports
- 1
- Placement
- In-wall
- Brand
- D-Link
- Category
- Wireless Access Point
- Model
- 3XDAP-2620
- Part number
- 3XDAP-2620
- Also known as
- D-Link 3XDAP-2620 wireless access point 1200 Mbit/s White Power over Ethernet (PoE)
Specifications
37 specifications in 11 groups
Features
| Specification | Value |
|---|---|
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Maximum data transfer rate | 1200 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 300 Mbit/s |
| Maximum data transfer rate (5 GHz) | 867 Mbit/s |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3az, IEEE 802.3u |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Rate limiting | Yes |
| Quality of Service (QoS) support | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | 64-bit AES, 128-bit WEP, WPA-Enterprise, WPA-PSK, WPA2-Enterprise, WPA2-PSK |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Output voltage | 12 V |
| Output current | 1 A |
| Power consumption (max) | 8 W |
Design
| Specification | Value |
|---|---|
| Placement | In-wall |
| Product colour | White |
| Housing material | Plastic |
| LED indicators | Status |
Antenna
| Specification | Value |
|---|---|
| Antenna type | Internal |
| Antenna direction type | Omni-directional |
| Antenna gain level (max) | 2 dBi |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC CE |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 153.3 mm |
| Depth | 94.7 mm |
| Height | 35.8 mm |
| Weight | 212 g |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 3 pc(s) |
| PoE adapter included | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 65 °C |
| Operating altitude | 10 - 89 m |
| Storage relative humidity (H-H) | 5 - 95% |
