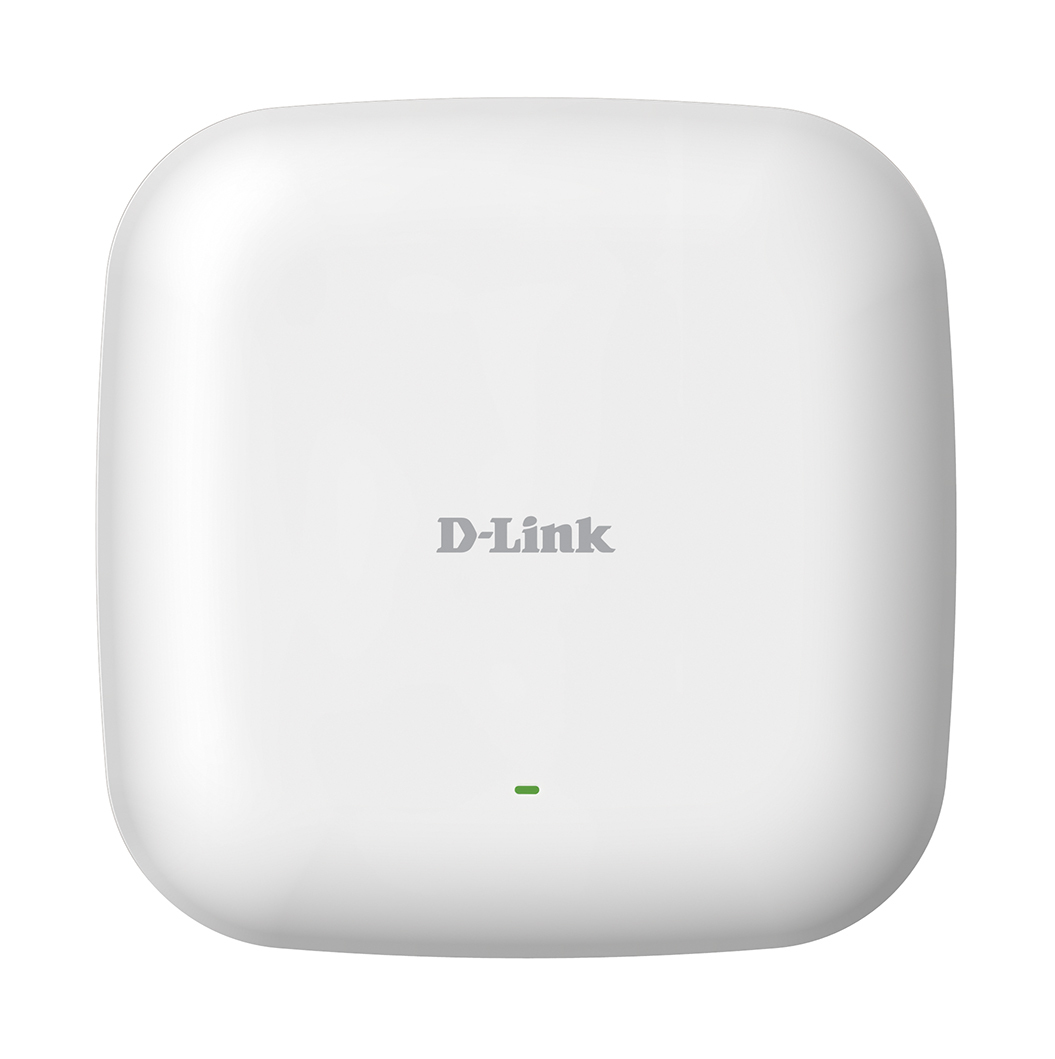

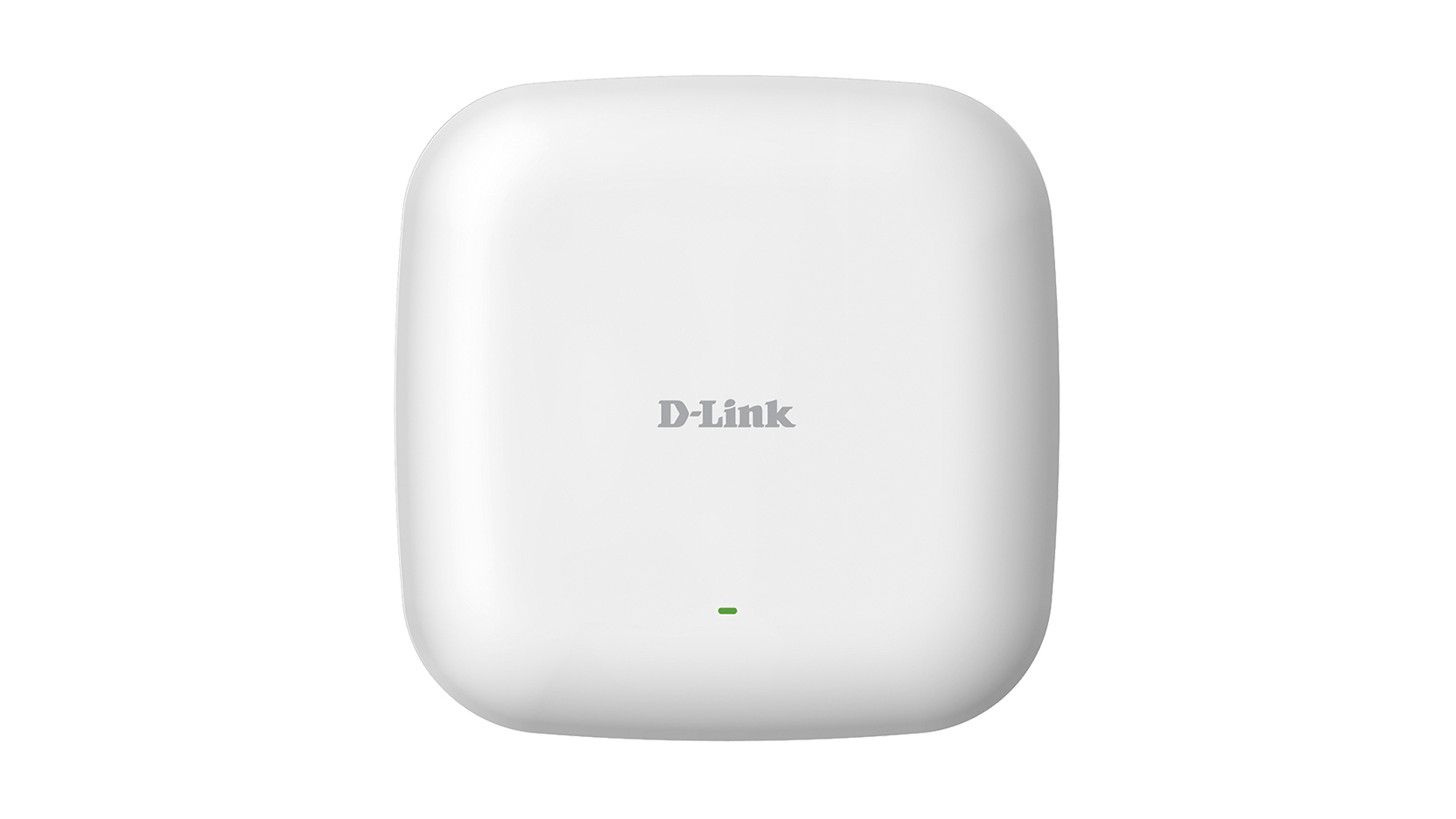

D-Link 3XDAP-2610 wireless access point 1300 Mbit/s White Power over Ethernet (PoE)

3XDAP-2610 wireless access point 1300 Mbit/s White Power over Ethernet (PoE)

Model 3XDAP-2610

49 specifications

Speed1300 Mbit/s
Weight314 g
ColourWhite
2.4 GHzYes
Ethernet LAN (RJ-45) ports1
PlacementTable

See all specifications

Overview

Speed: 1300 Mbit/s
Weight: 314 g
Colour: White
2.4 GHz: Yes
Ethernet LAN (RJ-45) ports: 1
Placement: Table

Brand: D-Link
Category: Wireless Access Point
Model: 3XDAP-2610
Part number: 3XDAP-2610
Also known as: D-Link 3XDAP-2610 wireless access point 1300 Mbit/s White Power over Ethernet (PoE)

Specifications

49 specifications in 12 groups

Features

Specification	Value
2.4 GHz	Yes
5 GHz	Yes
Maximum data transfer rate	1300 Mbit/s
Maximum data transfer rate (2.4 GHz)	400 Mbit/s
Maximum data transfer rate (5 GHz)	867 Mbit/s
Ethernet LAN data rates	10,100,1000 Mbit/s
Frequency band	2.4 - 2.4835, 5.15 - 5.35, 5.47 -5.85- GHz
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3az, IEEE 802.3u
Cabling technology	10/100/1000Base-T(X)
Automatic channel selection	Yes
MIMO	Yes
MIMO type	Multi User MIMO
Modulation	256-QAM
Wi-Fi Multimedia (WMM)/(WME)	Yes
VLAN support	Yes
Wireless isolation	Yes

Security

Specification	Value
Security algorithms	64-bit WEP, 128-bit WEP, 802.1x RADIUS, SSH, SSL/TLS, WDS, WPA-Enterprise, WPA-PSK, WPA2, WPA2-Enterprise, WPA2-PSK
MAC address filtering	Yes
IGMP snooping	Yes

Protocols

Specification	Value
DHCP server	Yes
Management protocols	SNMP (v1, v2c, v3), Telnet

Management features

Specification	Value
Web-based management	Yes
Command-line interface (CLI)	Yes
Syslog	Yes
Firmware upgradeable	Yes

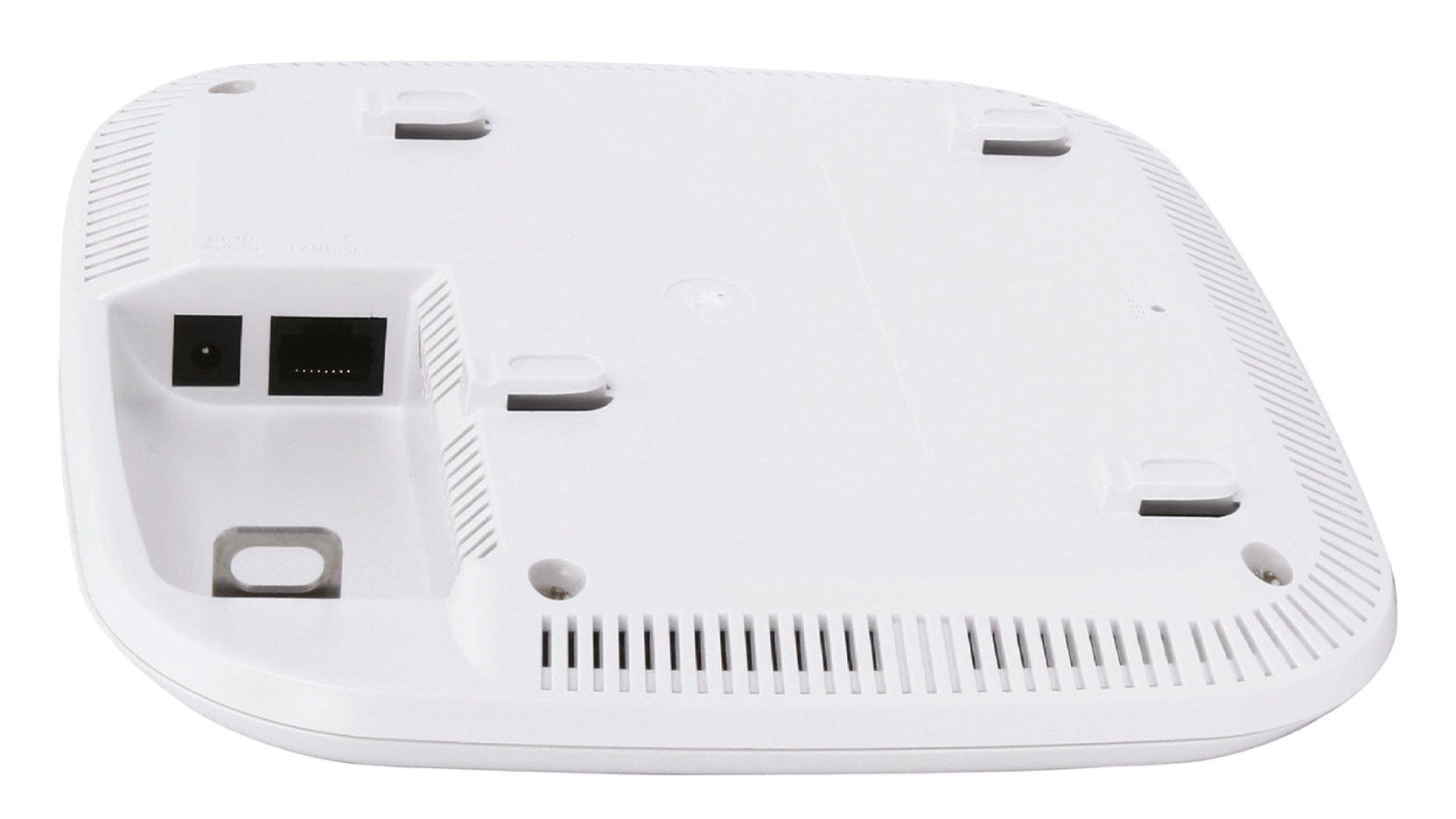

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
DC-in jack	Yes

Power

Specification	Value
Power over Ethernet (PoE)	Yes
Output voltage	12 V
Output current	1 A
Power consumption (max)	12 W

Design

Specification	Value
Placement	Table
Product colour	White
Housing material	Plastic

Antenna

Specification	Value
Antenna type	Internal
Antenna direction type	Omni-directional
Antenna features	Integrated antenna
Antenna gain level (max)	3 dBi

Certificates

Specification	Value
Certification	FCC IC CE4 UL Wi-Fi Certified

Weight & dimensions

Specification	Value
Width	170 mm
Depth	170 mm
Height	28 mm
Weight	314 g

Packaging content

Specification	Value
Quantity per pack	3 pc(s)
AC adapter included	Yes

Operational conditions

Specification	Value
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Storage relative humidity (H-H)	5 - 95%
