AC1200 86mm Wall-Plate Wi-Fi Access Point
Model NetzwerkgerätePart no. AP1300E WALLEAN 6971690793883
57 specifications
- Speed1167 Mbit/s
- Weight145 g
- ColourWhite
- 2.4 GHzYes
- Security algorithmsWPA, WPA2, WPA3
- Ethernet LAN (RJ-45) ports2
Overview
- Speed
- 1167 Mbit/s
- Weight
- 145 g
- Colour
- White
- 2.4 GHz
- Yes
- Security algorithms
- WPA, WPA2, WPA3
- Ethernet LAN (RJ-45) ports
- 2
- Brand
- Cudy
- Category
- Wireless Access Point
- Model
- Netzwerkgeräte
- Part number
- AP1300E WALL
- EAN / UPC
- 6971690793883
- Also known as
- Cudy AC1200 86mm Wall-Plate Wi-Fi Access Point
Specifications
57 specifications in 15 groups
Features
| Specification | Value |
|---|---|
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| 6 GHz | No |
| Maximum data transfer rate | 1167 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 300 Mbit/s |
| Maximum data transfer rate (5 GHz) | 867 Mbit/s |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Number of simultaneously connected devices (max) | 128 |
| Networking standards | IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11v, IEEE 802.11k |
| Number of users | 40 user(s) |
| Bluetooth | No |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Spread spectrum method | OFDMA |
| VLAN support | Yes |
| Quality of Service (QoS) support | Yes |
| Maximum outdoor range | 80 m |
Security
| Specification | Value |
|---|---|
| Security algorithms | WPA, WPA2, WPA3 |
| Parental control | Yes |
| IGMP snooping | Yes |
Protocols
| Specification | Value |
|---|---|
| DHCP server | Yes |
Management features
| Specification | Value |
|---|---|
| Syslog | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 0 |
| WAN connection | Ethernet (RJ-45) |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | Passive PoE |
| Power consumption (typical) | 10 W |
| Power consumption (max) | 4 W |
Design
| Specification | Value |
|---|---|
| Placement | Wall |
| Product colour | White |
| Reset button | Yes |
| Internal | No |
Antenna
| Specification | Value |
|---|---|
| Antenna type | Internal |
| Antenna direction type | Omni-directional |
| Antennas quantity | 4 |
Performance
| Specification | Value |
|---|---|
| Flash memory | 16 MB |
Technical details
| Specification | Value |
|---|---|
| Products per shipping (inner) case | 50 pc(s) |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 86 mm |
| Depth | 86 mm |
| Height | 43 mm |
| Weight | 145 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 91 mm |
| Package depth | 57 mm |
| Package height | 89 mm |
| Package weight | 220.1 g |

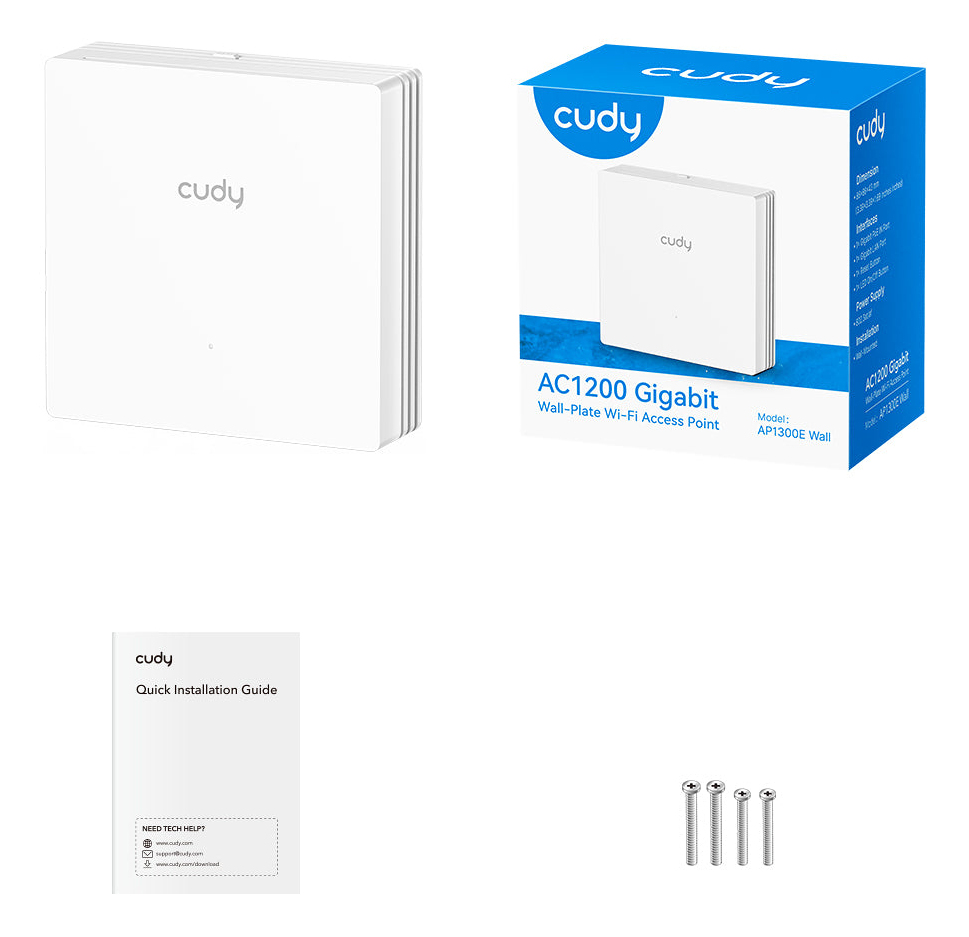

Packaging content
| Specification | Value |
|---|---|
| AC adapter included | No |
| PoE adapter included | No |
| Mounting kit | Yes |
| Quick start guide | Yes |
| Bundled software | Cudy Software |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | China |
| Warranty period | 1 year(s) |
