AX3000 Gigabit Wi-Fi Access Point, AP3000S 1.0
Model AX3000 Gigabit Wi-Fi Access Point, AP3000S 1.0Part no. AP3000S 1.0EAN 6971690795436
68 specifications
- Memory128 MB
- Speed2976 Mbit/s
- ColourWhite
- 2.4 GHzYes
- Security algorithmsWPA, WPA2, WPA3
- Ethernet LAN (RJ-45) ports1
Overview
- Memory
- 128 MB
- Speed
- 2976 Mbit/s
- Colour
- White
- 2.4 GHz
- Yes
- Security algorithms
- WPA, WPA2, WPA3
- Ethernet LAN (RJ-45) ports
- 1
- Brand
- Cudy
- Category
- Wireless Access Point
- Model
- AX3000 Gigabit Wi-Fi Access Point, AP3000S 1.0
- Part number
- AP3000S 1.0
- EAN / UPC
- 6971690795436
- Also known as
- Cudy AX3000 Gigabit Wi-Fi Access Point, AP3000S 1.0 2976 Mbit/s White Power over Ethernet (PoE)
Specifications
68 specifications in 15 groups
Features
| Specification | Value |
|---|---|
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| 6 GHz | No |
| Maximum data transfer rate | 2976 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 574 Mbit/s |
| Maximum data transfer rate (5 GHz) | 2402 Mbit/s |
| Ethernet LAN data rates | 100,1000 Mbit/s |
| Networking standards | IEEE 802.3at, IEEE 802.3af |
| Channel bandwidth | 160 MHz |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Spread spectrum method | OFDMA |
| Modulation | 1024-QAM |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Fast roaming | Yes |
| VLAN support | Yes |
| Virtual LAN features | Tagged VLAN |
| Wireless meshing | Yes |
| Quality of Service (QoS) support | Yes |
| BeamForming | Yes |
| Maximum outdoor range | 200 m |
| PPPoE/PPTP/L2TP pass-through | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | WPA, WPA2, WPA3 |
| MAC address filtering | Yes |
| Number of SSID supported | 8 |
| Guest access | Yes |
| IGMP snooping | Yes |
Protocols
| Specification | Value |
|---|---|
| DHCP client | Yes |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |
| Syslog | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 0 |
| WAN connection | Ethernet (RJ-45) |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | Passive PoE |
| DC voltage range | 48 V |
| Output voltage | 12 V |
| Output current | 1 A |
| Power consumption (typical) | 2.5 W |
| Power consumption (max) | 12 W |
Design
| Specification | Value |
|---|---|
| Placement | Ceiling, Wall |
| Product colour | White |
| Reset button | Yes |
| LED indicators | System |
Antenna
| Specification | Value |
|---|---|
| Antenna type | Internal |
| Antenna direction type | Omni-directional |
| Antennas quantity | 4 |
Performance
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor frequency | 1200 MHz |
| Flash memory | 128 MB |
| Internal memory | 128 MB |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC) |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 171.4 mm |
| Depth | 171.4 mm |
| Height | 41 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 172 mm |
| Package depth | 172 mm |
| Package height | 49 mm |

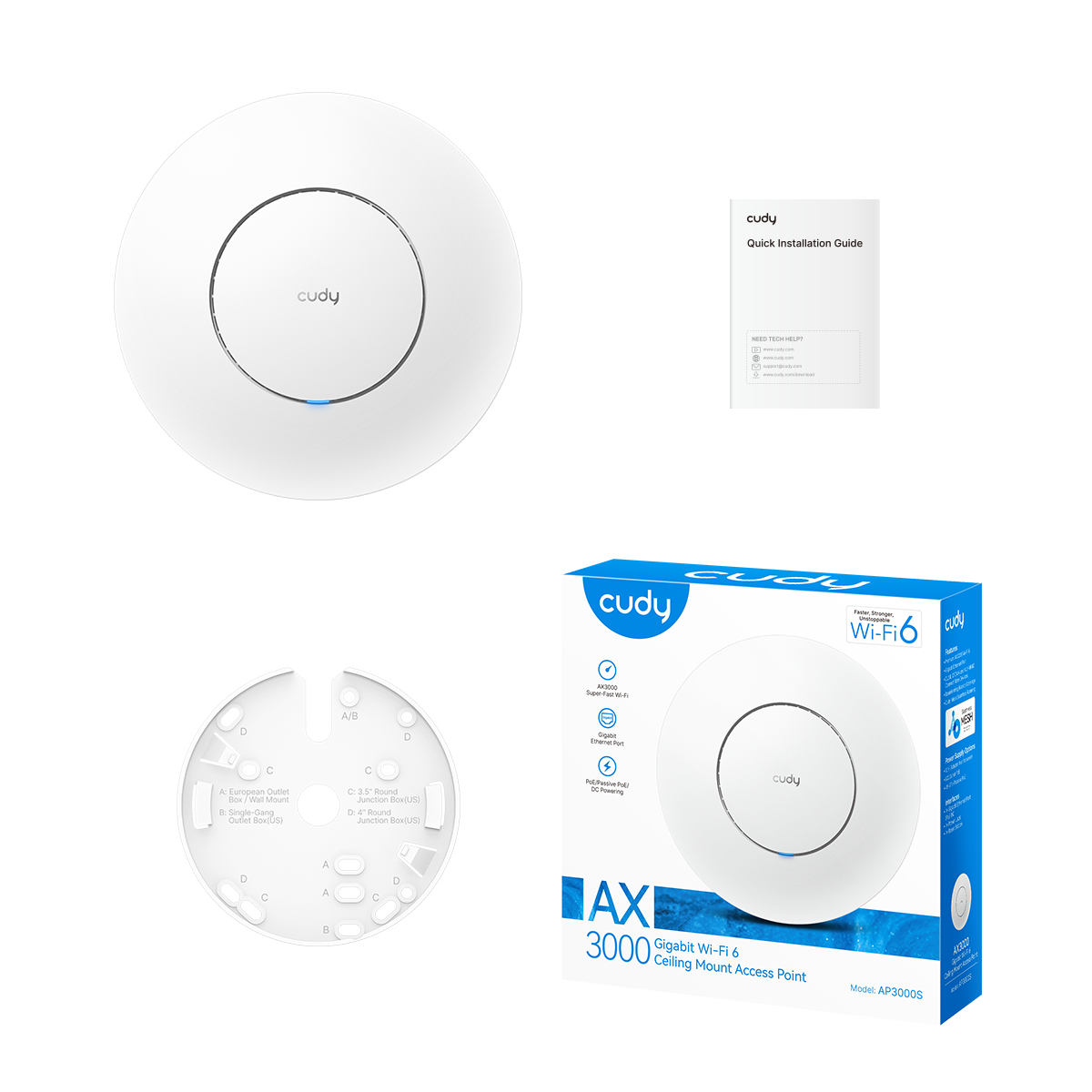

Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |

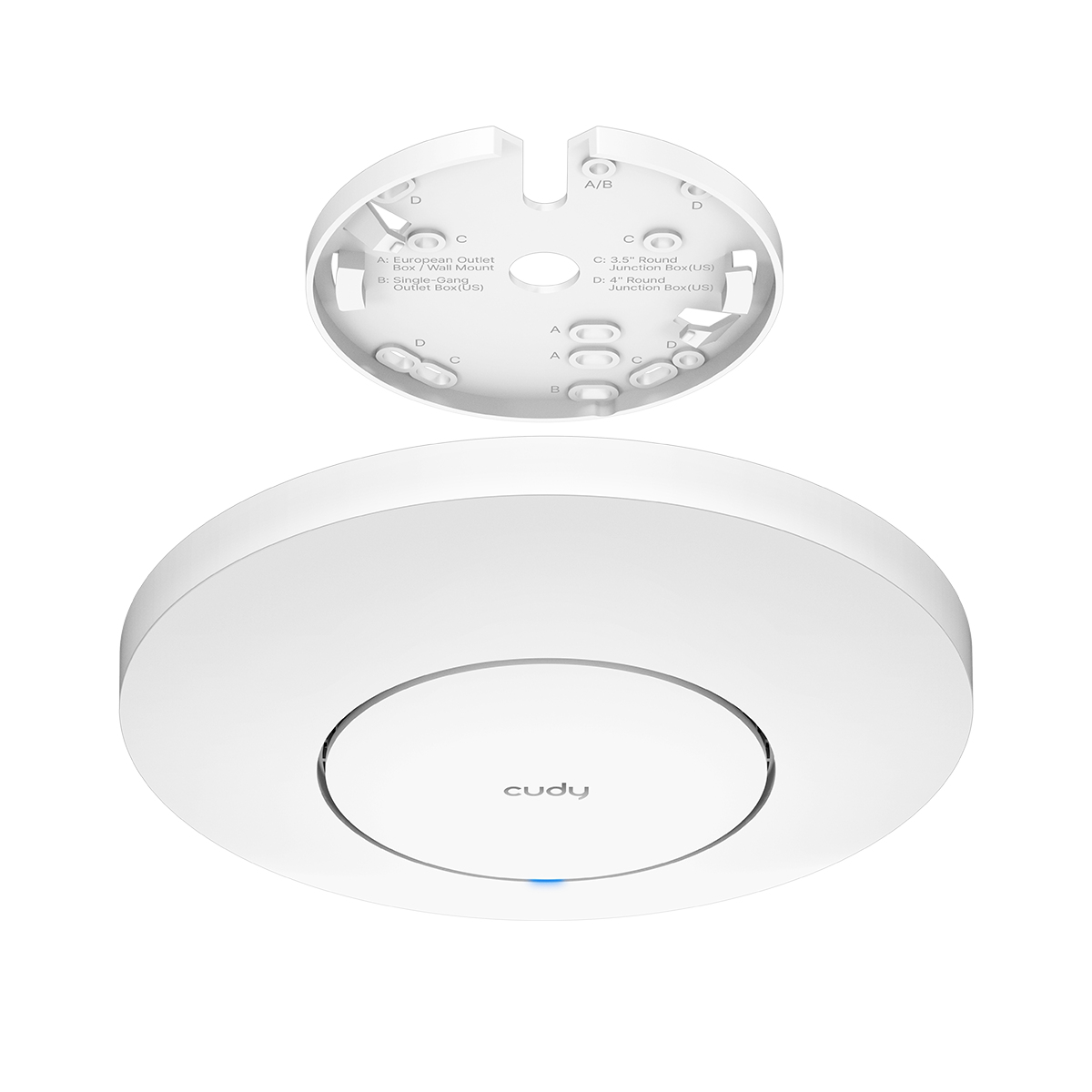

| Mounting kit | Yes |
| Quick start guide | Yes |
| Bundled software | Cudy Software |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -10 - 65 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | China |
