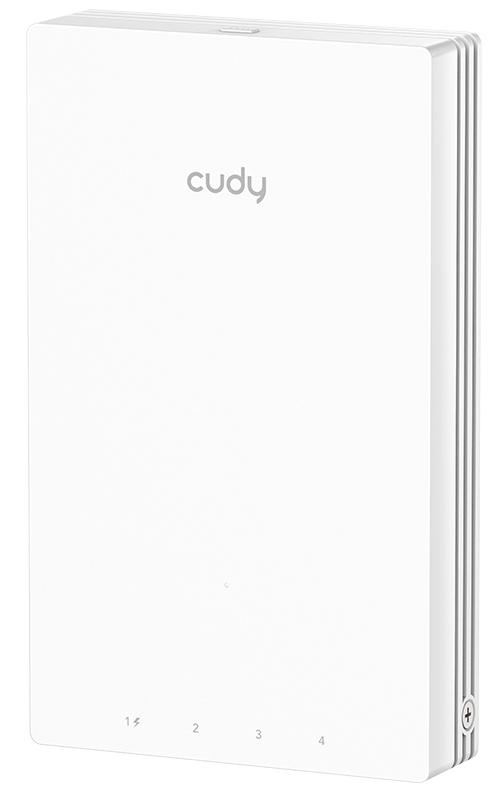

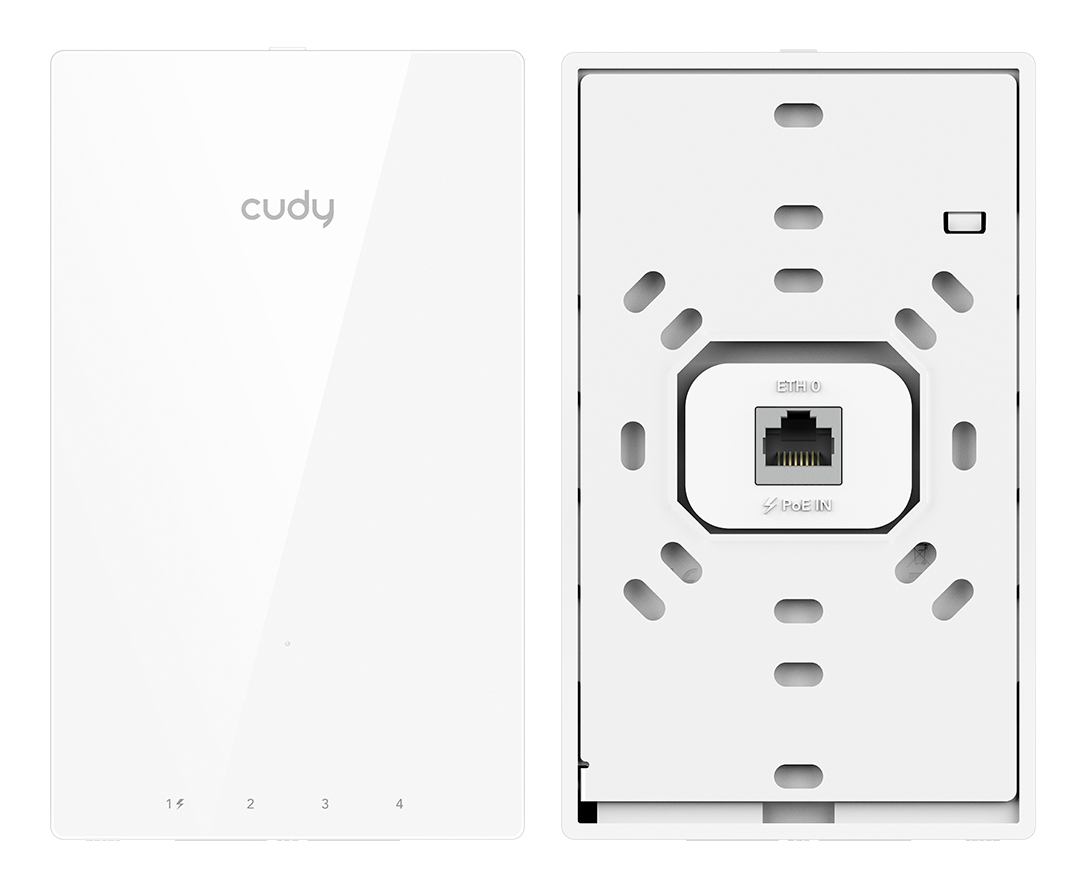

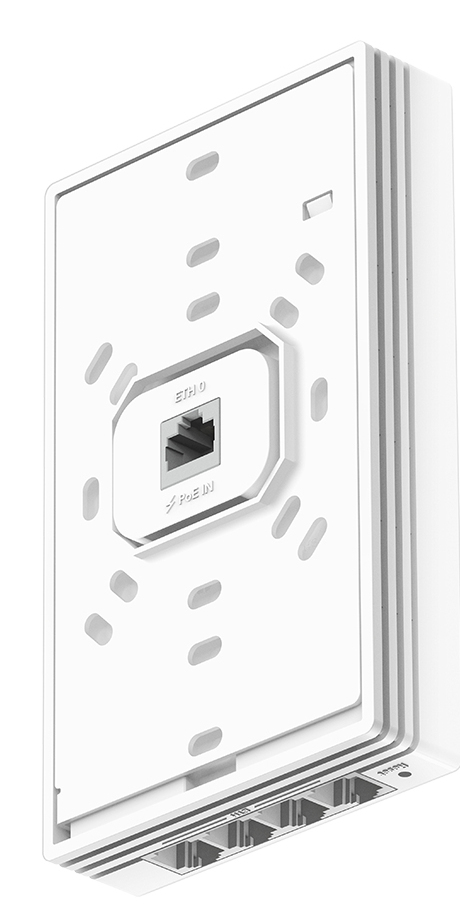

AX3000 Gigabit Wall-Plate Wi-Fi 6 Access
Model AX3000 Gigabit Wall-Plate Wi-Fi 6 AccessPart no. AP3000 WALLEAN 6971690793388
57 specifications
- Speed2976 Mbit/s
- Weight298.6 g
- ColourWhite
- 2.4 GHzYes
- Security algorithmsWPA, WPA2, WPA3
- Ethernet LAN (RJ-45) ports5
Overview
- Speed
- 2976 Mbit/s
- Weight
- 298.6 g
- Colour
- White
- 2.4 GHz
- Yes
- Security algorithms
- WPA, WPA2, WPA3
- Ethernet LAN (RJ-45) ports
- 5
- Brand
- Cudy
- Category
- Wireless Access Point
- Model
- AX3000 Gigabit Wall-Plate Wi-Fi 6 Access
- Part number
- AP3000 WALL
- EAN / UPC
- 6971690793388
- Also known as
- Cudy AX3000 Gigabit Wall-Plate Wi-Fi 6 Access 2976 Mbit/s White Power over Ethernet (PoE)
Specifications
57 specifications in 15 groups
Features
| Specification | Value |
|---|---|
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| 6 GHz | No |
| Maximum data transfer rate | 2976 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 574 Mbit/s |
| Maximum data transfer rate (5 GHz) | 2402 Mbit/s |
| Ethernet LAN data rates | 10,1000,100 Mbit/s |
| Networking standards | IEEE 802.11b, IEEE 802.11ac, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ax, IEEE 802.3af, IEEE 802.3at |
| Bluetooth | No |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Spread spectrum method | OFDMA |
| VLAN support | Yes |
| Quality of Service (QoS) support | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | WPA, WPA2, WPA3 |
| MAC address filtering | Yes |
| Number of SSID supported | 8 |
| Guest access | Yes |
| Parental control | Yes |
| IGMP snooping | Yes |
Protocols
| Specification | Value |
|---|---|
| DHCP server | Yes |
Management features
| Specification | Value |
|---|---|
| Cloud-managed | Yes |
| Syslog | Yes |

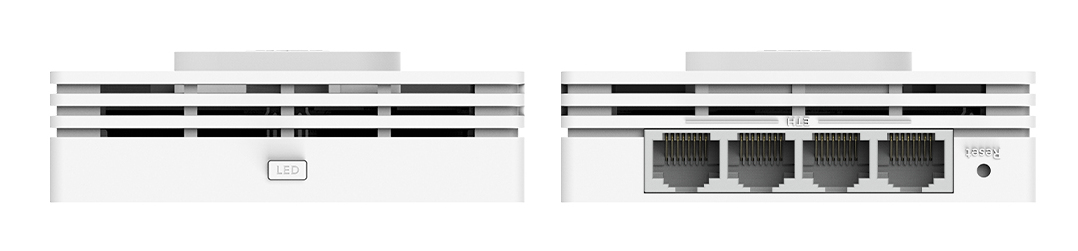

Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 5 |
| USB 2.0 ports quantity | 0 |
| WAN connection | Ethernet (RJ-45) |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | Passive PoE |
| Power consumption (typical) | 5 W |
| Power consumption (max) | 12 W |
Design
| Specification | Value |
|---|---|
| Placement | Wall |
| Product colour | White |
| Reset button | Yes |
| LED indicators | System |
Antenna
| Specification | Value |
|---|---|
| Antenna type | Internal |
| Antenna direction type | Omni-directional |
| Antennas quantity | 3 |
Performance
| Specification | Value |
|---|---|
| Flash memory | 128 MB |
Technical details
| Specification | Value |
|---|---|
| Products per shipping (inner) case | 30 pc(s) |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 143 mm |
| Depth | 86 mm |
| Height | 27.6 mm |
| Weight | 298.6 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 152 mm |
| Package depth | 39.5 mm |
| Package height | 90 mm |
| Package weight | 400.5 g |

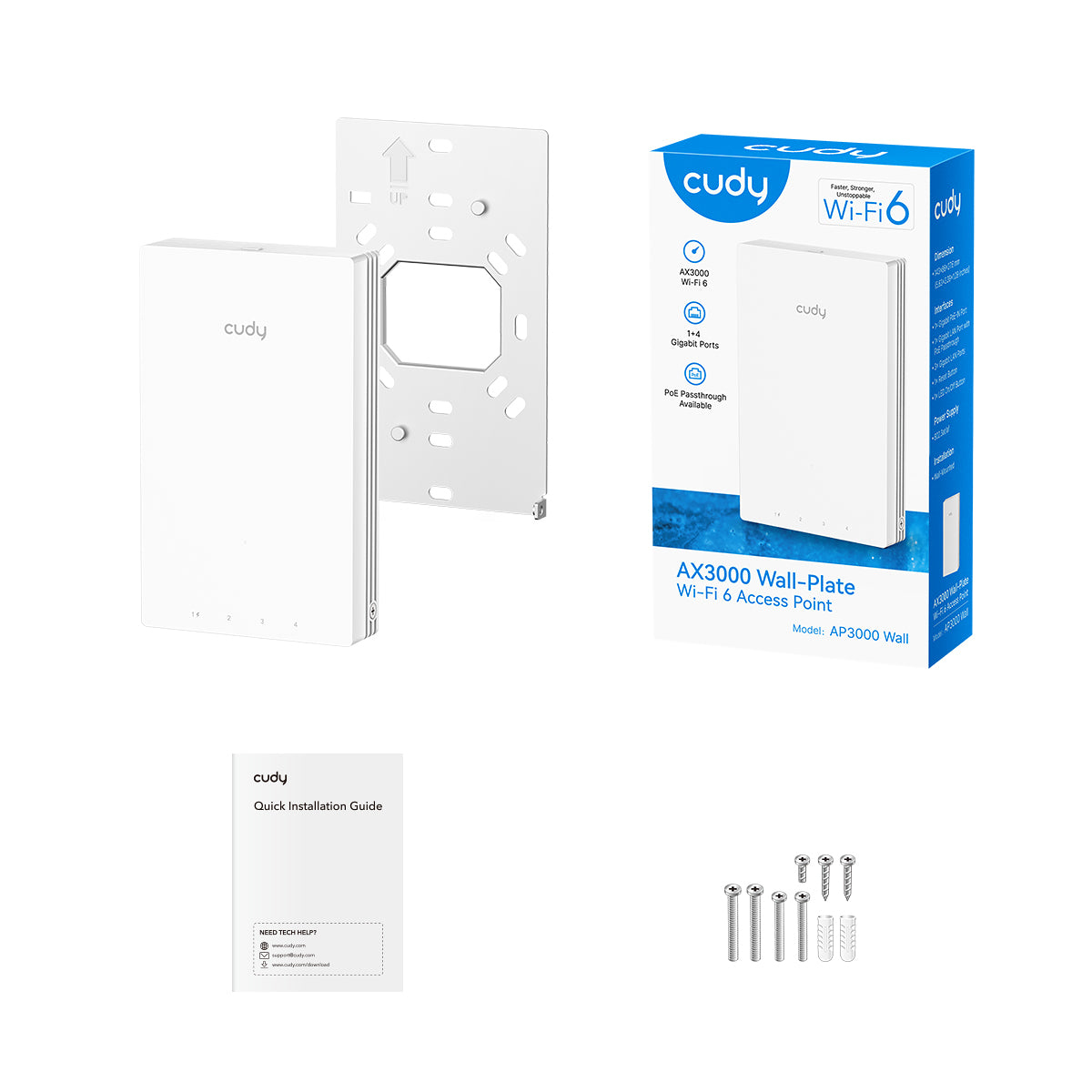

Packaging content
| Specification | Value |
|---|---|
| AC adapter included | No |
| PoE adapter included | No |
| Mounting kit | Yes |
| Quick start guide | Yes |
| Bundled software | Cudy Software |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | China |
