AP3600 wireless access point 3570 Mbit/s White Power over Ethernet (PoE)
Model AP3600EAN 6971690793999
61 specifications
- Memory512 MB
- Speed3570 Mbit/s
- Weight435 g
- ColourWhite
- 2.4 GHzYes
- Security algorithmsWPA, WPA2, WPA3
Overview
- Memory
- 512 MB
- Speed
- 3570 Mbit/s
- Weight
- 435 g
- Colour
- White
- 2.4 GHz
- Yes
- Security algorithms
- WPA, WPA2, WPA3
- Brand
- Cudy
- Category
- Wireless Access Point
- Model
- AP3600
- Part numbers
- AP3600, AP3600_P
- EAN / UPC
- 6971690793999, 6971690794002
- Also known as
- Cudy AP3600 wireless access point 3570 Mbit/s White Power over Ethernet (PoE)
Specifications
61 specifications in 16 groups
Features
| Specification | Value |
|---|---|
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| 6 GHz | No |
| Maximum data transfer rate | 3570 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 688 Mbit/s |
| Maximum data transfer rate (5 GHz) | 2882 Mbit/s |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Networking standards | IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at |
| Bluetooth | No |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| VLAN support | Yes |
| Quality of Service (QoS) support | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | WPA, WPA2, WPA3 |
| Number of SSID supported | 8 |
| Guest access | Yes |
| IGMP snooping | Yes |
Protocols
| Specification | Value |
|---|---|
| DHCP server | Yes |
Management features
| Specification | Value |
|---|---|
| Cloud-managed | Yes |
| Syslog | Yes |

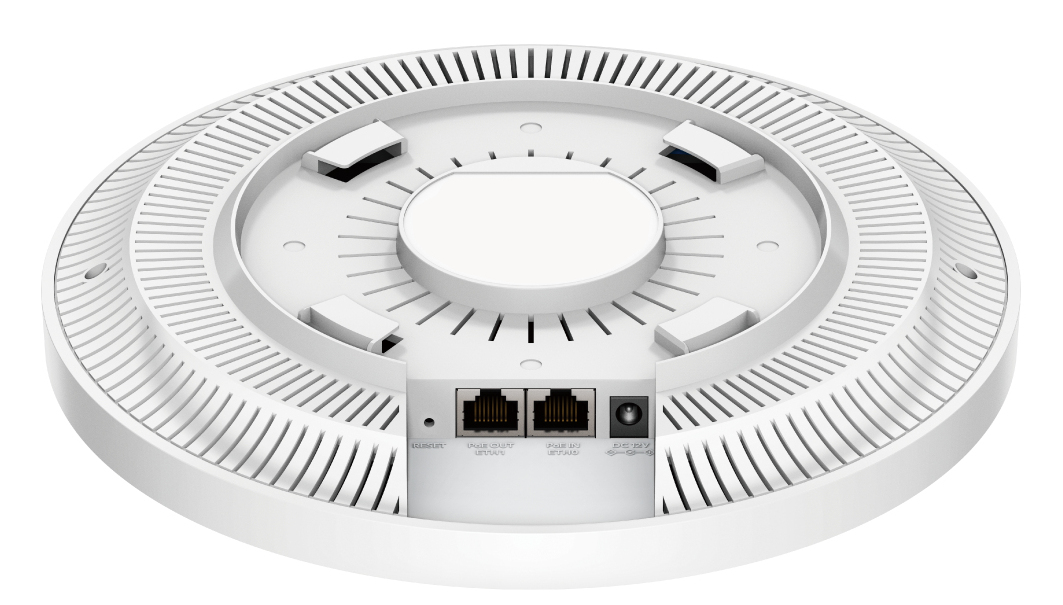

Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 0 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | Passive PoE |
| DC voltage range | 48-57 V |
| Output voltage | 12 V |
| Output current | 1 A |
| Power consumption (max) | 10 W |
Design
| Specification | Value |
|---|---|
| Placement | Ceiling, Wall |
| Product colour | White |
| Reset button | Yes |
| LED indicators | System |
Antenna
| Specification | Value |
|---|---|
| Antenna type | Internal |
| Antennas quantity | 4 |
| Antenna gain level (max) | 5.5 dBi |
Performance
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor frequency | 2000 MHz |
| Flash memory | 128 MB |
| Internal memory | 512 MB |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC) |
Technical details
| Specification | Value |
|---|---|
| Products per shipping (inner) case | 10 pc(s) |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 231.9 mm |
| Depth | 231.9 mm |
| Height | 57.1 mm |
| Weight | 435 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 310 mm |
| Package depth | 238 mm |
| Package height | 73 mm |
| Package weight | 843 g |

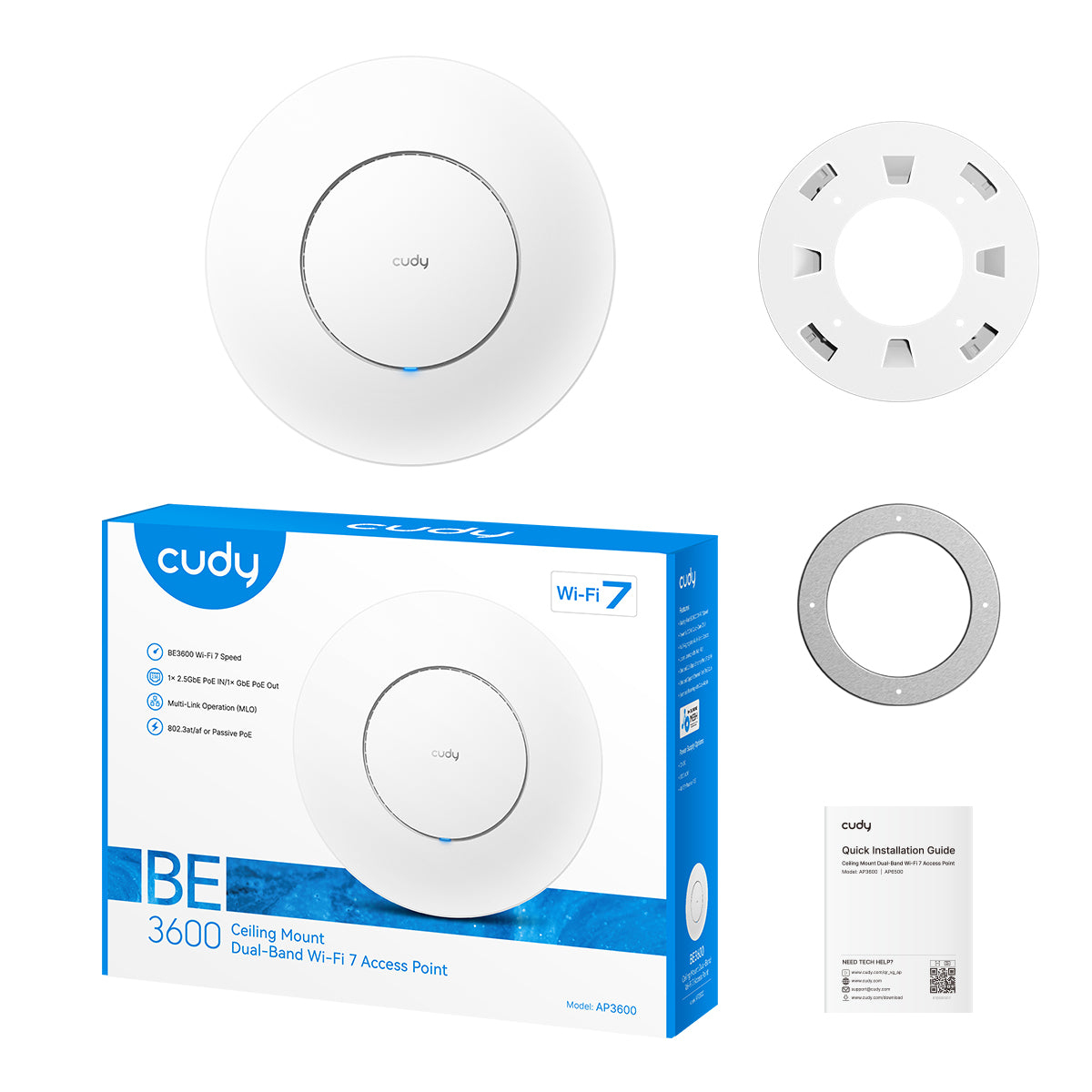

Packaging content
| Specification | Value |
|---|---|
| AC adapter included | No |
| PoE adapter included | No |
| Cables included | LAN (RJ-45) |
| Mounting kit | Yes |
| Quick start guide | Yes |
| Bundled software | Cudy Software |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 95% |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | China |
