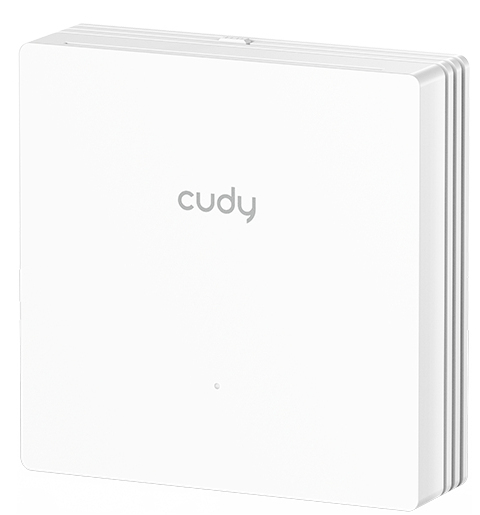

AP3000E Wall
Model AP3000E WallPart no. AP3000E WALLEAN 6971690793395
54 specifications
- Speed2976 Mbit/s
- Weight178.2 g
- ColourWhite
- 2.4 GHzYes
- Security algorithmsWPA, WPA2, WPA3
- Ethernet LAN (RJ-45) ports1
Overview
- Speed
- 2976 Mbit/s
- Weight
- 178.2 g
- Colour
- White
- 2.4 GHz
- Yes
- Security algorithms
- WPA, WPA2, WPA3
- Ethernet LAN (RJ-45) ports
- 1
- Brand
- Cudy
- Category
- Wireless Access Point
- Model
- AP3000E Wall
- Part number
- AP3000E WALL
- EAN / UPC
- 6971690793395
- Also known as
- Cudy AP3000E Wall 2976 Mbit/s White Power over Ethernet (PoE)
Specifications
54 specifications in 15 groups
Features
| Specification | Value |
|---|---|
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| 6 GHz | No |
| Maximum data transfer rate | 2976 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 574 Mbit/s |
| Maximum data transfer rate (5 GHz) | 2402 Mbit/s |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Number of simultaneously connected devices (max) | 256 |
| Networking standards | IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at, IEEE 802.3af |
| Number of users | 60 user(s) |
| Bluetooth | No |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Spread spectrum method | OFDMA |
| VLAN support | Yes |
| Quality of Service (QoS) support | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | WPA, WPA2, WPA3 |
| Number of SSID supported | 8 |
| Guest access | Yes |
| IGMP snooping | Yes |
Protocols
| Specification | Value |
|---|---|
| DHCP server | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 0 |
| WAN connection | Ethernet (RJ-45) |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | Passive PoE |
| Power consumption (max) | 14 W |
Design
| Specification | Value |
|---|---|
| Placement | Wall |
| Product colour | White |
| Reset button | Yes |
Antenna
| Specification | Value |
|---|---|
| Antenna type | Internal |
| Antenna direction type | Omni-directional |
| Antennas quantity | 3 |
Performance
| Specification | Value |
|---|---|
| Flash memory | 128 MB |
Technical details
| Specification | Value |
|---|---|
| Products per shipping (inner) case | 50 pc(s) |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 86 mm |
| Depth | 86 mm |
| Height | 43 mm |
| Weight | 178.2 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 91 mm |
| Package depth | 57 mm |
| Package height | 89 mm |
| Package weight | 252.1 g |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | No |
| PoE adapter included | No |
| Mounting kit | Yes |
| Quick start guide | Yes |
| Bundled software | Cudy Software |
Other features
| Specification | Value |
|---|---|
| Wireless range | 80 m |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | China |
